Description

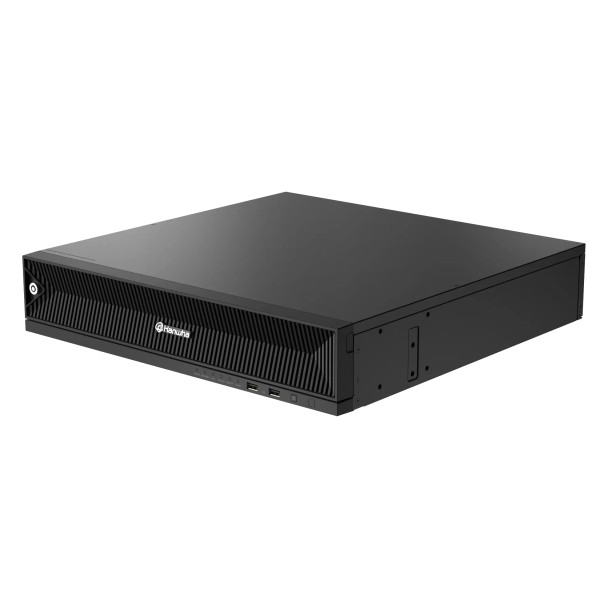

Hanwha Vision XRN-6420RB2-32TB 64 Channel 32MP Network Video Recorder with 32TB HDD Included
The Hanwha Vision XRN-6420RB2-32TB is a powerful 64-channel network video recorder designed for enterprise-level surveillance systems requiring ultra-high-resolution video, AI-assisted analytics, and reliable, scalable storage. Supporting camera resolutions up to 32MP, the system includes 32TB HDD Included and is expandable up to 80TB via 8 hot-swappable SATA drive bays. It is powered by a 12th generation Intel processor and operates on embedded Linux OS, offering up to 520Mbps of recording and transmission bandwidth. Dual HDMI outputs allow simultaneous 4K and Full HD display with dynamic layout control and virtual channel view. Integration with Wisenet AI cameras enables AI object attribute search for efficient and intelligent forensic review. With RAID 5/6 support, N+1 failover, TPM hardware security, and NDAA compliance, the XRN-6420RB2-32TB delivers enterprise-grade performance for mission-critical operations.
Key Features:
- 64 Channels; supports up to 64 IP camera inputs with resolutions up to 32MP
- 32TB HDD Included; expandable up to 80TB with 8 hot-swappable SATA drive bays
- Up to 520Mbps Recording Bandwidth; supports high-resolution, multi-channel video streaming
- Dual HDMI Outputs; enables 4K and Full HD local display with flexible dynamic layouts
- AI Object Attribute Search; improves forensic accuracy when integrated with Wisenet AI cameras
- H.265, H.264, MJPEG Compression; enhances storage capacity and network efficiency
- RAID 5/6 Support; provides robust data protection using 8-HDD array configurations
- Smart Search and Playback; includes event filters, bookmarks, and multiple playback modes
- Fisheye Dewarping; enhances clarity for 360° panoramic video during local playback
- Remote Access; via Wisenet Viewer, WebViewer, and Wisenet Mobile platforms
- Multi-User Access; supports 1 local and up to 3 remote users concurrently
- Failover Support (N+1); ensures continuous recording in case of hardware failure
- 2-Way Audio Support; supports 64-channel network audio with G.711, G.726, and AAC codecs
- Embedded Linux OS; offers 24/7 stability with low maintenance requirements
- Secure Networking; includes HTTPS, IP filtering, 802.1x, TPM, signed firmware, and device certificate
- Hot-Swappable Drive Bays; allow tool-free upgrades and replacements without system interruption
Downloads
Additional Information
|
Capacity for each disk:
|
up to 8TB
|
|
Channel Capacity:
|
64 Channels
|
|
Compliance:
|
NDAA Compliant
|
|
Dimensions:
|
438 × 86 × 434.9 mm (17.24 × 3.39 × 17.12 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
10 SATA Ports
|
|
Max. Storage Capacity:
|
80 TB
|
|
Pre-Installed Storage:
|
32 TB
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
