Description

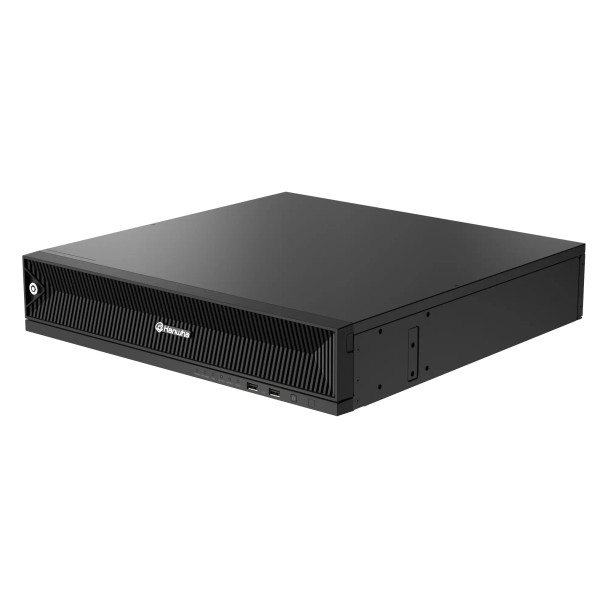

Hanwha Vision XRN-6420RB2-60TB 64 Channel 32MP Network Video Recorder with 60TB HDD Included
The Hanwha Vision XRN-6420RB2-60TB is a robust 64-channel network video recorder designed for enterprise surveillance environments that require ultra-high-resolution recording, AI-enhanced search features, and scalable, secure storage. Supporting resolutions up to 32MP per channel, this system includes 60TB HDD Included and is expandable up to 80TB using 8 hot-swappable SATA drive bays. Powered by a 12th generation Intel processor and operating on embedded Linux OS, it delivers up to 520Mbps of recording and transmission bandwidth. With dual HDMI outputs for simultaneous 4K and Full HD display, dynamic layout support, and virtual channel view, the system enhances real-time monitoring and playback. When integrated with Wisenet AI cameras, AI object attribute search enables faster and more accurate forensic investigations. RAID 5/6 support, N+1 failover, TPM security, and NDAA compliance ensure the XRN-6420RB2-60TB meets the demands of mission-critical deployments.
Key Features:
- 64 Channels; supports up to 64 IP camera inputs with resolutions up to 32MP
- 60TB HDD Included; expandable up to 80TB with 8 hot-swappable SATA drive bays
- Up to 520Mbps Recording Bandwidth; supports high-performance multi-stream video capture
- Dual HDMI Outputs; enables simultaneous 4K and Full HD local display with dynamic layouts
- AI Object Attribute Search; enhances forensic review with Wisenet AI camera integration
- H.265, H.264, MJPEG Compression; improves storage capacity and bandwidth efficiency
- RAID 5/6 Support; ensures data protection using dual 8-HDD array configuration
- Smart Search and Playback; includes bookmarks, event filters, and flexible playback modes
- Fisheye Dewarping; improves clarity of 360° panoramic video during local monitoring
- Remote Access; available via Wisenet Viewer, WebViewer, and Wisenet Mobile
- Multi-User Access; supports 1 local and up to 3 remote users simultaneously
- Failover Support (N+1); provides uninterrupted recording in the event of system failure
- 2-Way Audio Support; handles 64-channel network audio with G.711, G.726, and AAC codecs
- Embedded Linux OS; delivers stable 24/7 operation with minimal maintenance
- Secure Networking; includes HTTPS, IP filtering, 802.1x, TPM, signed firmware, and device certificate
- Hot-Swappable Drive Bays; allow for maintenance or upgrades without interrupting system operation
Downloads
Additional Information
|
Capacity for each disk:
|
up to 8TB
|
|
Channel Capacity:
|
64 Channels
|
|
Compliance:
|
NDAA Compliant
|
|
Dimensions:
|
438 × 86 × 434.9 mm (17.24 × 3.39 × 17.12 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
10 SATA Ports
|
|
Max. Storage Capacity:
|
80 TB
|
|
Pre-Installed Storage:
|
60 TB
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
