Description

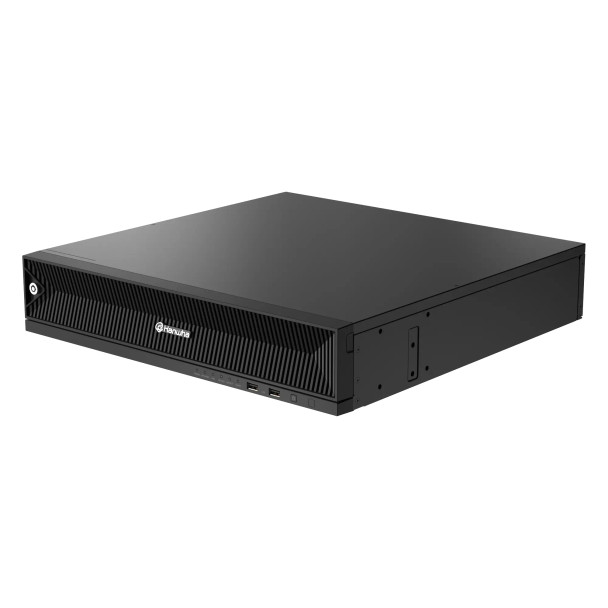

Hanwha Vision XRN-6420RB2-80TB 64 Channel 32MP Network Video Recorder with 80TB HDD Included
The Hanwha Vision XRN-6420RB2-80TB is a top-tier 64-channel network video recorder designed for enterprise surveillance applications that require ultra-high-resolution video, intelligent AI features, and maximum onboard storage. Supporting resolutions up to 32MP per channel, this model includes 80TB HDD Included—the full capacity supported via 8 hot-swappable SATA drive bays. Powered by a 12th generation Intel processor and running on embedded Linux OS, the system delivers up to 520Mbps of recording and transmission bandwidth. It features dual HDMI outputs for simultaneous 4K and Full HD local display, dynamic layout control, and virtual channel view. When integrated with Wisenet AI cameras, it enables AI object attribute search for precise and efficient forensic analysis. With RAID 5/6 support, failover (N+1), TPM-based security, and NDAA compliance, the XRN-6420RB2-80TB offers powerful and secure video management for large-scale surveillance deployments.
Key Features:
- 64 Channels; supports up to 64 IP camera inputs with resolutions up to 32MP
- 80TB HDD Included; maximum capacity supported via 8 hot-swappable SATA drive bays
- Up to 520Mbps Recording Bandwidth; handles high-resolution, multi-stream recording
- Dual HDMI Outputs; supports simultaneous 4K and Full HD local display with dynamic layouts
- AI Object Attribute Search; enables advanced forensic review with Wisenet AI camera integration
- H.265, H.264, MJPEG Compression; maximizes storage and bandwidth efficiency
- RAID 5/6 Support; ensures data redundancy and protection through 8-HDD array setup
- Smart Search and Playback; supports event filtering, bookmarking, and multi-mode playback
- Fisheye Dewarping; improves 360° video clarity for local monitoring
- Remote Access; via Wisenet Viewer, WebViewer, and Wisenet Mobile platforms
- Multi-User Access; supports 1 local and up to 3 simultaneous remote users
- Failover Support (N+1); maintains uninterrupted recording during hardware or system failure
- 2-Way Audio Support; handles 64-channel network audio with G.711, G.726, and AAC codecs
- Embedded Linux OS; provides stable, 24/7 operation with minimal maintenance
- Secure Networking; includes HTTPS, IP filtering, 802.1x, TPM, signed firmware, and device certificate
- Hot-Swappable Drive Bays; enable upgrades and maintenance without system interruption
Downloads
Additional Information
|
Capacity for each disk:
|
up to 8TB
|
|
Channel Capacity:
|
64 Channels
|
|
Compliance:
|
NDAA Compliant
|
|
Dimensions:
|
438 × 86 × 434.9 mm (17.24 × 3.39 × 17.12 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
10 SATA Ports
|
|
Max. Storage Capacity:
|
80 TB
|
|
Pre-Installed Storage:
|
80 TB
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
