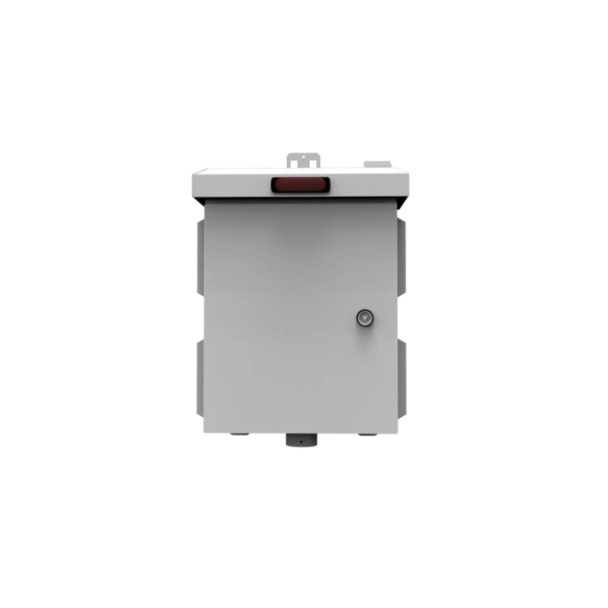

Hikvision B01-L CCTV Power Box with Multi-Voltage DC Outputs and IP67 Rating

Hikvision B01-L CCTV Power Box with Multi-Voltage DC Outputs and IP67 Rating

The Hikvision B01-L is a professional-grade outdoor CCTV power distribution box designed for comprehensive surveillance installations requiring centralized power management for multiple cameras and accessories. This weatherproof IP67-rated enclosure accepts 110-277VAC input (maximum 1.5kW) and provides five regulated DC voltage outputs (52V/2.5A, 36V/2A, 24V/1A, 12V/2A, 5V/2A) with 255W total DC output capacity, enabling simultaneous powering of PTZ cameras, IP cameras, dome cameras, bullet cameras, and speakers from single centralized location. The white powder-coated steel enclosure includes external mounting capability for cameras and audio devices, integrated AC input switch, two 110V/550W AC output sockets, and built-in door alarm switch for tamper detection.

Engineered for professional outdoor installations, the B01-L features robust construction capable of supporting external camera mounting directly on the enclosure, eliminating need for separate mounting structures in pole-mounted or remote location deployments. The comprehensive voltage output range (5V, 12V, 24V, 36V, 52V) accommodates diverse equipment power requirements including PoE switches, wireless transmitters, IR illuminators, and specialty surveillance devices. Extensive accessory kit includes junction box adapters, mounting screws, cable management components, CAT6 network cables, AC power cable, and DC power cables for complete installation. Compatible with PC130 and PC155 brackets for versatile mounting options. Dimensions of 19.6"H × 14"L × 9"W with approximately 9kg (19.84 lb) weight provide substantial capacity while maintaining manageable installation profile. Essential for security integrators deploying remote surveillance systems, parking lot monitoring, perimeter security, construction site surveillance, and outdoor installations where centralized weatherproof power distribution is critical for multi-camera deployments.

Key Features:

• IP67 weatherproof rating: complete protection against dust and water ingress for reliable outdoor operation in harsh environments
• Multi-voltage DC outputs: five regulated voltages (52V, 36V, 24V, 12V, 5V) with 255W total capacity power diverse surveillance equipment
• 1.5kW AC input capacity: 110-277VAC universal input with dual 110V/550W output sockets for high-power devices and accessories
• External camera mounting: enclosure supports direct PTZ, IP, dome, bullet camera, and speaker installation eliminating separate mounting structures
• Comprehensive installation kit: includes CAT6 cables, junction adapters, screws, cable management, and all necessary mounting hardware
