Description

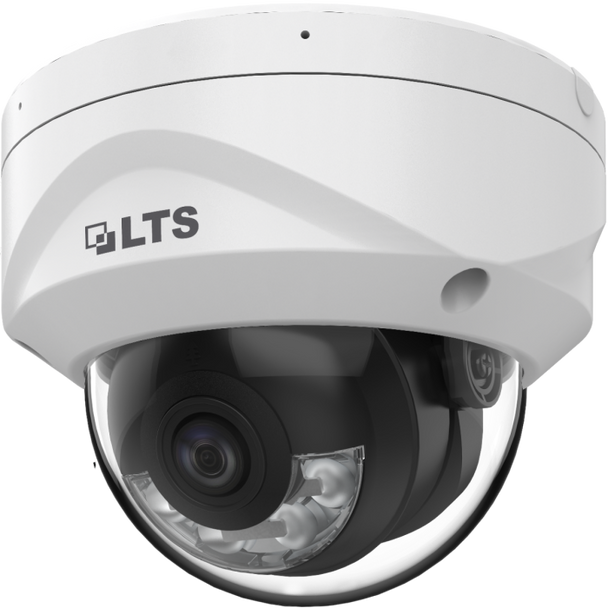

LTS LTCMIP7382WI-28MDA 8MP Outdoor Dome IP Security Camera with 2.8mm Lens and Built-In IR and White Light
The LTS LTCMIP7382WI-28MDA is a Platinum Series 8MP dome network camera featuring Smart Hybrid Light technology that integrates both IR and white light illumination with 4 supplemental lighting modes. This advanced camera focuses on human and vehicle classification using deep learning AI for intelligent detection and reduced false alarms.
Featuring a 1/2.8-inch Progressive Scan CMOS sensor delivering 3840×2160 resolution, this camera provides exceptional image clarity with excellent low-light performance down to 0.005 lux. The built-in dual-array microphone captures real-time, high-quality audio for comprehensive security monitoring.
True WDR technology at 120dB provides clear imaging even under strong backlight conditions, while efficient H.265+ compression reduces storage requirements without sacrificing image quality. The 2.8mm fixed lens offers a wide 108° horizontal field of view ideal for monitoring large areas.
Built with an IP67-rated and IK10 impact-resistant aluminum alloy housing, this camera withstands harsh outdoor conditions and vandalism attempts. The Smart Hybrid Light with 30-meter range ensures clear footage in complete darkness with intelligent switching between IR and white light modes.
Key Features:
- 8MP 1/2.8-inch Progressive Scan CMOS sensor; delivers 4K resolution with excellent detail
- Smart Hybrid Light with IR and White Light; provides 4 supplemental lighting modes up to 30m range
- Deep Learning AI; focuses on human and vehicle classification for reduced false alarms
- Built-in dual-array microphone; captures high-quality audio for comprehensive security
- True WDR 120dB; provides clear imaging in challenging backlight conditions
- H.265+ compression; reduces bandwidth and storage requirements up to 80%
- 2.8mm fixed lens with 108° horizontal FOV; ideal for wide-area monitoring
- IP67 weatherproof and IK10 vandal-resistant; built for demanding environments
- Supports microSD up to 512GB; enables local edge recording
- Wide operating temperature -30°C to 60°C; suitable for extreme environments
Downloads
Popular Search
Additional Information
|
Aperture:
|
F1.6
|
|
Audio Capability:
|
Built-In Microphone
|
|
Camera Style:
|
Dome
|
|
Compression:
|
MJPEG
|
|
Day/Night:
|
Automatic (ICR)
|
|
Dimensions:
|
Ø4.78" x 3.84"
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
108
|
|
Iris:
|
Fixed Iris
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Minimum Illumination (Color):
|
0.005 Lux at F1.6 AGC On
|
|
Night Vision Range (ft):
|
98
|
|
Noise Reduction:
|
3D DNR
|
|
Power Supply:
|
PoE (IEEE 802.3af)
|
|
Protection Code:
|
IK10
|
|
Resolution:
|
8MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
Progressive CMOS
|
|
Storage Humidity:
|
0% to 95% RH
|
|
Storage Temperature:
|
-30 °C to 60 °C (-22 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
