Description

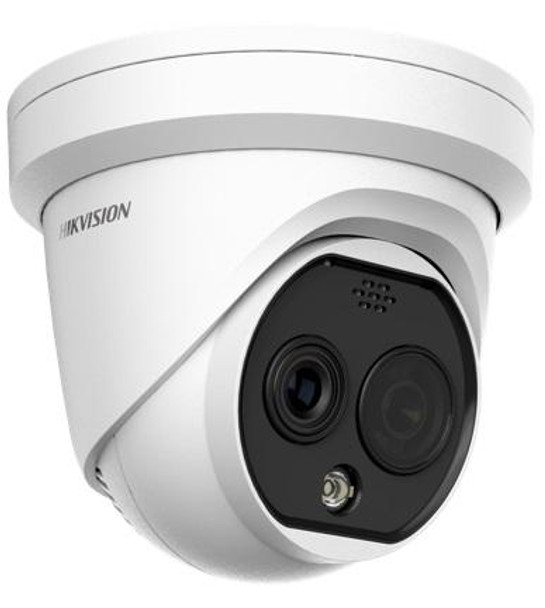

Hikvision DDS-2TD1228-3/QA HeatPro Series Thermal and Optical Bi-Spectrum Outdoor Turret IP Security Camera, 3.5mm Lens, White
Hikvision DS-2TD1228-3/QA Thermal & Optical Bi-spectrum Network Turret Camera supports video analysis for perimeter protection, and also temperature exception alarm for early fire prevention. With the deep learning algorithm, it can realize high precision VCA detection and real-time alarm. These camera series can be widely applied to villas, communities, parking lots, warehouses, construction sites, waste incineration plants, manufacturing workshops, etc.
Key Features:
- 256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0)
- Video content analysis: vehicle/human classification
- Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
- High quality detector with 10 years guarantee
Downloads
User Manual
Hikvision-DS-2TD1228-3-QA-User-Manual-A1
Quick Start Guide
Hikvision-DS-2TD1228-3-QA-Quick-Start-Guide-A1
Datasheet
Hikvision-DS-2TD1228-3-QA-Datasheet-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Analytics:
|
Perimeter Protection
|
|
Aperture:
|
F1.6
|
|
Audio Compression:
|
G.711alaw
G.711ulaw
G.722.1
G.726
MP2L2
PCM
|
|
Audio Input:
|
1x 3.5mm
|
|
Camera Style:
|
Turret
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
Hikvision SDK
ISAPI
ONVIF Profile G
ONVIF Profile S
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Connection Type:
|
Wired
|
|
Dimensions:
|
138.3 x 138.3 x 123.1 mm (5.45 x 5.45 x 4.85 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
84
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
|
|
Lens Size:
|
4.3mm
|
|
Lens Type:
|
Fixed Lens
|
|
Manufacturer Website:
|
https://us.hikvision.com/en
|
|
Max Power Consumption:
|
6.5 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2688 x 1520
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (B/W):
|
0 lux with IR illumination on
|
|
Minimum Illumination (Color):
|
0.0089 Lux
|
|
Network Interface:
|
1x RJ-45 10M/100M self-adaptive Ethernet interface
|
|
Night Vision Range (ft):
|
49
98
|
|
Night Vision Type:
|
Night Vision (Color - White Light)
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Pixel Size (μm):
|
12
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
Hikvision HeatPro Series
|
|
Protection Code:
|
IP66
|
|
Remote Users:
|
Up to 32
|
|
Resolution:
|
4MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.7"
|
|
Sensor Type:
|
CMOS
|
|
Serial Interface:
|
1x RS485
|
|
Shutter Speed:
|
1-1/100000s
|
|
Specialized Camera Feature:
|
Dual Light (Infrared and Whitelight)
Thermal
|
|
Spectral Range (μm):
|
8 to 14
|
|
Surge Protection:
|
TVS 6000V
|
|
Technology:
|
Network (IP)
|
|
Temperature Accuracy:
|
±8°C (±14.4°F)
|
|
Temperature Range:
|
-20°C to 150°C (-4°F to 302°F)
|
|
Thermal Aperture:
|
F1.0
|
|
Thermal Horizontal FOV:
|
50
|
|
Thermal Image Sensor:
|
Uncooled Focal Plane Array
|
|
Thermal Lens Size:
|
3.6mm
|
|
Thermal Resolution:
|
256 x 192
|
|
Thermal Sensitivity:
|
NETD <40 mK
|
|
Thermal Zoom:
|
4x thermal zoom
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
