Description

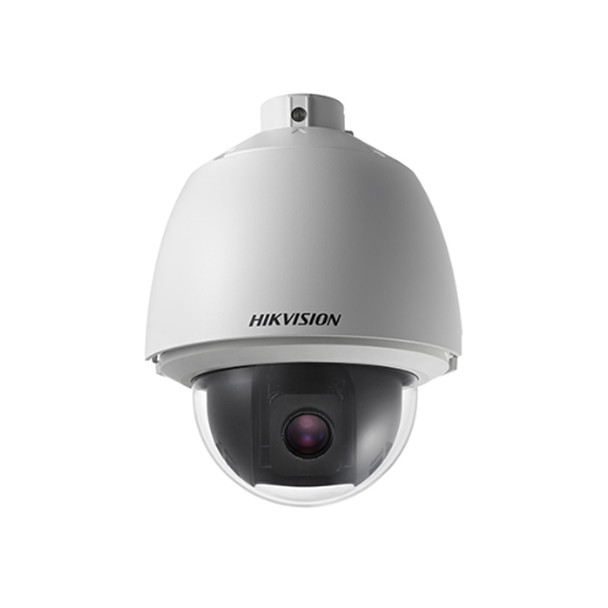

Hikvision DS-2AE5232T-A 2MP PTZ Speed Dome Turbo HD CCTV Security Camera
Hikvision DS-2AE5232T-A TurboHD PTZ Speed Dome Cameras produce images with a resolution of up to 1920 x 1080 pixels. The embedded 1/2.8" progressive scan CMOS chip supports true WDR, and the 32x optical zoom allows for greater detail to be collected over more expansive areas.
Key Features:
- 1/2.8" HD progressive scan CMOS
- 1920 x 1080 resolution
- 32x optical zoom, 16x digital zoom
- 120 dB true WDR (Wide Dynamic Range)
- 3D intelligent positioning
- Switchable TVI/AHD/CVI/CVBS video outputs
- Minimum Illumination: Color: 0.005 Lux at (f/1.2, AGC on) B/W: 0.001 Lux at (f/1.2, AGC on)
- Aperture Range: f/1.2 to f/4.4
- Tilt Range: From -5° to 90° (auto-flip), 360° endless
- 24 VAC, maximum 24 W
- IP66 standard (outdoor dome)
- Dimensions: Ø 220 x 326 mm (8.66 x 12.83 in)
Compatible Accessories:
- DS-1602ZJ-Pole Pole Mount
- DS-1602ZJ-Box Box Mount
- DS-1005KI USB Joy-stick
- DS-1619ZJ Swan-neck Mount
- DS-1662ZJ Pendant mount
- DS-1661ZJ Pendant mount
- DS-1663ZJ Celling mount
Replacement of:
DS-2AE5225T-A3
Downloads
Datasheet
Hikvision-DS-2AE5232T-A-Datasheet-A1
User Manual
Hikvision-DS-2AE5232T-A-User-Manual-A1
Quick Start Guide
Hikvision-DS-2AE5232T-A-Quick-Start-Guide-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Camera Style:
|
PTZ
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
54.2
1.97
|
|
Lens Size:
|
4.8~153mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Protection Code:
|
IP66
|
|
Resolution:
|
2MP
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
HD CCTV
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
