Description

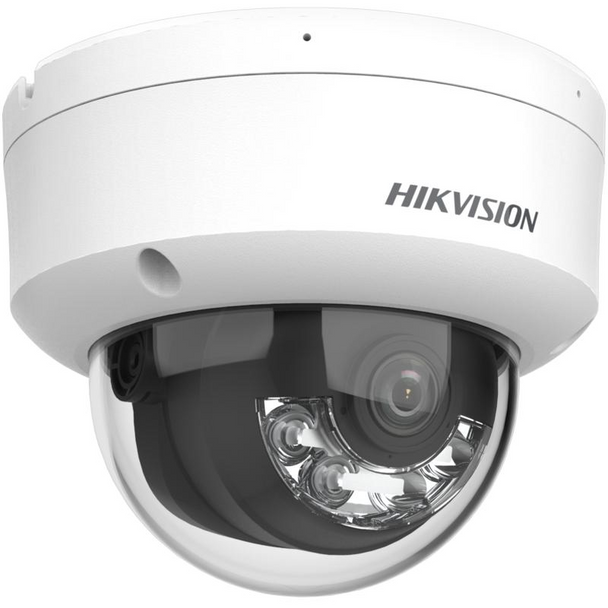

Hikvision DS-2CD1143G2-LIUF(2.8mm) 4 MP Outdoor Smart Hybrid Light Fixed Dome IP Security Camera with 2.8mm Lens
Key Features:
- High quality imaging with 4 MP resolution
- Support Human and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Built-in microphone for real-time audio security
- Efficient H.265+ compression technology
- Support on-board storage up to 512 GB (SD card slot) (Optional)
- Water and dust resistant (IP67) and vandal resistant (IK08)
Downloads
Quick Start Guide
Hikvision-DS-2CD1143G2-LIUF(2.8MM)-Quick-Start-Guide-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alternative SKUs:
|
DS-2CD1143G2-LIUF (2.8MM)
DS-2CD1143G2-LIUF
HX-1143G2LI2
|
|
Analytics:
|
Motion Detection
Tampering
|
|
Aperture:
|
F1.6
|
|
Audio Capability:
|
One-way Audio
|
|
Audio Compression:
|
G.711ulaw
G.711alaw
G.722.1
G.726
MP2L2
PCM
AAC-LC
|
|
Camera Style:
|
Dome
|
|
Certifications:
|
FCC
RCM
IC
BIS
RoHS
WEEE
REACH
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ISAPI
SDK
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
|
|
Compression:
|
H.265
H.265 Plus
H.264
H.264 Plus
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Detect (ft):
|
206.69
|
|
Dimensions:
|
121.4 x 97.7 mm (4.8 x 3.8 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Diagonal):
|
114
|
|
Field of View (Horizontal):
|
98
|
|
Field of View (Vertical):
|
54
|
|
Identify (ft):
|
19.69
|
|
Image Enhancements:
|
Backlight Compensation (BLC)
Highlight Compensation (HLC)
|
|
Image Settings:
|
Brigthness
Mirror
Privacy Mask
Saturation
Sharpness
|
|
Iris:
|
Fixed Iris
|
|
Languages:
|
English
|
|
Lens Mount:
|
M12
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Main Stream:
|
4MP
|
|
Material:
|
Metal
Plastic
|
|
Max Power Consumption:
|
7.5 Watts
|
|
Max. FPS and Resolution:
|
20fps at 2560 x 1440
|
|
Max. Storage Capacity:
|
512 GB
|
|
Minimum Illumination (B/W):
|
0 lux with IR illumination on
|
|
Minimum Illumination (Color):
|
0.005 Lux at F1.6 AGC On
|
|
Network Interface:
|
1x RJ-45 10M/100M self-adaptive Ethernet interface
|
|
Night Vision Range (ft):
|
98.43
|
|
Night Vision Type:
|
Night Vision (Color - White Light)
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Observe (ft):
|
82.02
|
|
Power Supply:
|
PoE (IEEE 802.3af)
12 VDC
|
|
Privacy Mask:
|
4 area
|
|
Product Series:
|
Hikvision Value Express Series
|
|
Protection Code:
|
IP67
IK08
|
|
Recognize (ft):
|
39.37
|
|
Region of Interest (ROI):
|
1
|
|
Remote Users:
|
Up to 32
|
|
Reset Button:
|
|
|
Resolution:
|
4MP
|
|
S/N Ratio:
|
>52 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Security:
|
Digest authentication
HTTPS encryption
IP address filtering
Password protection
|
|
Sensor Size:
|
1/3"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/3-1/100000s
|
|
Specialized Camera Feature:
|
Dual Light (Infrared and Whitelight)
|
|
Storage Temperature:
|
-30 °C to 60 °C (-22 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
