Description

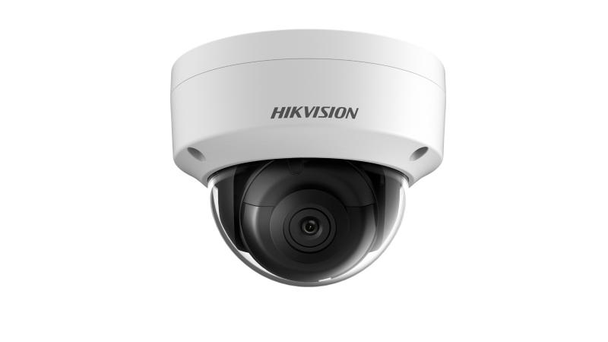

Hikvision DS-2CD2183G0-I 2.8mm 8MP Outdoor Dome IP Security Camera with 2.8mm Lens and Built-In IR
The Hikvision DS-2CD2183G0-I 2.8mm is a high-resolution 8MP outdoor dome IP security camera that delivers exceptional 4K ultra-high-definition video for detailed monitoring and identification. Equipped with a 2.8mm fixed lens, this camera provides a wide 102° horizontal field of view, making it an excellent choice for overseeing large outdoor areas such as parking lots, building entrances, and expansive commercial properties with a single device. Its advanced 1/2.5" Progressive Scan CMOS sensor ensures sharp image capture at resolutions up to 3840 x 2160, while the 120dB Wide Dynamic Range (WDR) and 3D Digital Noise Reduction (DNR) technologies work together to provide clear, balanced footage in challenging lighting conditions, such as direct sunlight or deep shadows. For nighttime security, the camera features built-in infrared illuminators that provide visibility in complete darkness for up to 30 meters. Built to withstand the elements and potential tampering, it is housed in a rugged metal body with an IP67 weather-resistant rating and an IK10 vandal-proof rating. The unit also supports efficient H.265+ video compression to save on bandwidth and storage space, and includes a built-in microSD slot that supports up to 128 GB for local data backup. This camera is ideal for high-security environments where forensic-level detail is required, combined with a durable design capable of operating in extreme temperatures ranging from -30°C to 60°C.
Key Features:
- 8MP high resolution; provides 4K ultra-HD video at 3840 x 2160 for superior image clarity.
- 2.8mm fixed lens; offers a wide 102° horizontal field of view for extensive area coverage.
- 30 meter IR range; ensures clear black-and-white monitoring in total darkness with built-in infrared.
- 120dB Wide Dynamic Range; delivers balanced images in high-contrast and backlit environments.
- IP67 weatherproofing; provides full protection against dust and water for reliable outdoor operation.
- IK10 vandal resistance; features a ruggedized metal housing designed to protect against physical impacts.
- H.265+ compression; reduces storage and bandwidth consumption by up to 80% without losing quality.
- 3D Digital Noise Reduction; removes image graininess in low-light settings for a cleaner video signal.
- On-board storage; includes a built-in microSD/SDHC/SDXC slot supporting up to 128 GB.
- 2 Behavior analyses; supports intelligent line crossing and intrusion detection for automated alerts.
- 3-axis adjustment; allows for flexible positioning of the lens during installation to capture the ideal angle.
- PoE (802.3af) support; enables a simplified single-cable setup for both power and data transmission.
- Face detection; utilizes onboard analytics to identify and log human faces within the field of view.
- M12 lens mount; provides a secure and stable interface for the high-quality fixed optics.
- Backlight Compensation (BLC); enhances visibility of subjects positioned in front of bright light sources.
Downloads
Additional Information
|
Alternative SKUs:
|
DS-2CD2183G0-I(2.8MM)
|
|
Aperture:
|
F2.0
|
|
Audio Compression:
|
G.722.1
G.711
G.726
|
|
Camera Style:
|
Dome
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
ISAPI
SDK
|
|
Compression:
|
H.265 Plus
H.264 Plus
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
102
|
|
Languages:
|
English
French
Italian
German
Spanish
|
|
Lens Mount:
|
M12
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Manufacturer Website:
|
https://us.hikvision.com/en
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
9 Watts
|
|
Max. FPS and Resolution:
|
15fps at 3840 x 2160
|
|
Max. Storage Capacity:
|
128 GB
|
|
Minimum Illumination (B/W):
|
0.028 Lux at F2.0 AGC ON
|
|
Minimum Illumination (Color):
|
0.01 Lux at F1.2 AGC ON
|
|
Night Vision Range (ft):
|
100
|
|
Noise Reduction:
|
3D DNR
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Protection Code:
|
IP67
IK10
|
|
Remote Users:
|
Up to 32
|
|
Resolution:
|
8MP (4K)
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.5"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/3-1/100000s
|
|
Technology:
|
Network (IP)
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
