Description

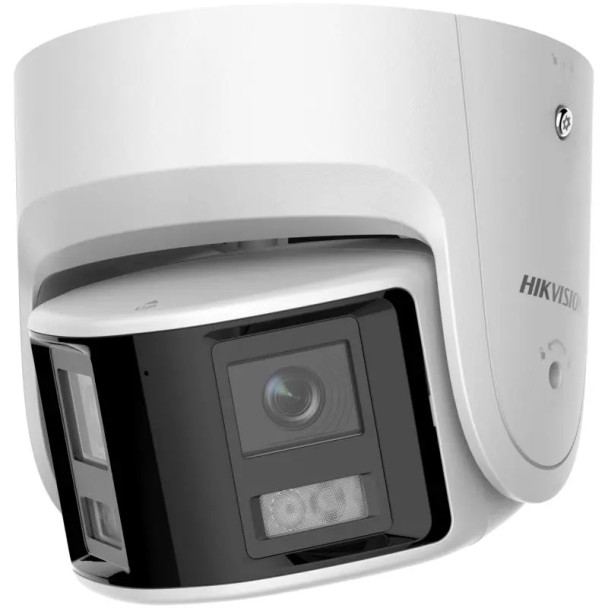

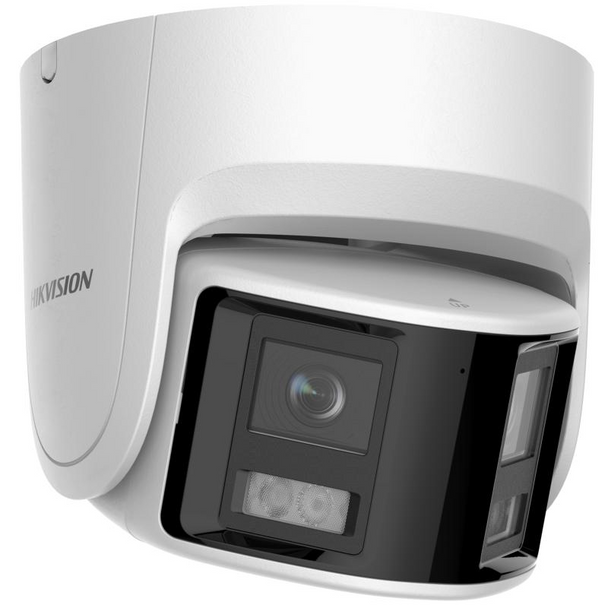

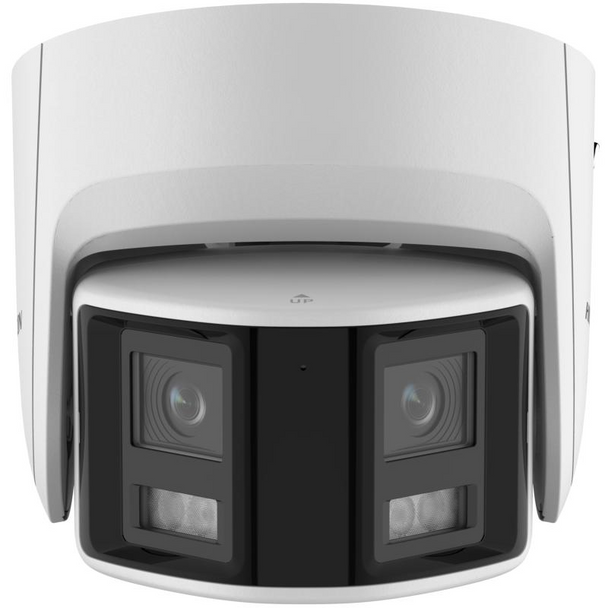

Hikvision DS-2CD2367G2P-LSU/SL 6MP Multi-sensor IP Security Camera with Strobe Light, Audio Alarm, 2.8mm Fixed Lens
Hikvision ColorVu technology provides 24/7 vivid colorful images with F1.0 advanced lenses, high performance sensors and friendly lighting. F1.0 super-aperture collects more light to produce brighter images. Advanced sensor technology can vastly improve the utilization of available light.
Key Features:
- High quality imaging with 6 MP resolution
- One image that presents all the scenes covered by the camera
- 24/7 colorful imaging
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 130 dB WDR technology
- Focus on human and vehicle classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Water and dust resistant (IP67)
Downloads
Quick Start Guide
Hikvision-DS-2CD2367G2P-LSU-SL-Quick-Start-Guide-A1
User Manual
Hikvision-DS-2CD2367G2P-LSU-SL-User-Manual-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Analytics:
|
Motion Detection
Line Crossing
Intrusion Detection
Region Entrance Detection
Region Exiting Detection
|
|
Angle of View:
|
180 Degree
|
|
Aperture:
|
F1.0
|
|
Audio Compression:
|
G.711
G.722.1
G.726
MP2L2
PCM
MP3
AAC-LC
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Audio Support:
|
Built-in Microphone
Built-in Speaker
|
|
Camera Style:
|
Turret
|
|
Certifications:
|
FCC
CE
RCM
IC
CB
RoHS
WEEE
REACH
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
ISAPI
SDK
|
|
Compression:
|
H.265
H.265 Plus
H.264
H.264 Plus
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Auto
Day (Color)
Schedule
|
|
Detect (ft):
|
147.64
|
|
Dimensions:
|
140 x 145.6 mm (5.5 x 5.7 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
180
|
|
Field of View (Vertical):
|
81
|
|
Identify (ft):
|
14.76
|
|
Image Enhancements:
|
Backlight Compensation (BLC)
Highlight Compensation (HLC)
|
|
Image Settings:
|
Saturation
Brigthness
Contrast
Sharpness
|
|
Iris:
|
Fixed Iris
|
|
Languages:
|
English
Russian
Estonian
Bulgarian
Hungarian
Greek
German
Italian
Czech
Slovak
French
Polish
Dutch
Portuguese
Spanish
Romanian
Danish
Swedish
Norwegian
Finnish
Croatian
Slovenian
Serbian
Turkish
Korean
Traditional Chinese
Thai
Vietnamese
Japanese
Latvian
Lithuanian
Portuguese (Brazil)
Ukrainian
|
|
Lens Mount:
|
M12
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
12.5 Watts
|
|
Max. FPS and Resolution:
|
20fps at 3632 x 1632
|
|
Max. Storage Capacity:
|
512 GB
|
|
Minimum Illumination (B/W):
|
0 lux white light on
|
|
Minimum Illumination (Color):
|
0.0005 Lux at F1.0 AGC ON
|
|
Network Interface:
|
1x RJ-45 10M/100M self-adaptive Ethernet interface
|
|
Night Vision Range (ft):
|
98.43
|
|
Night Vision Type:
|
Night Vision (Color - White Light)
|
|
Noise Reduction:
|
3D DNR
|
|
Observe (ft):
|
57.41
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
Hikvision ColorVu Series
Hikvision Value Series
|
|
Protection Code:
|
IP67
|
|
Recognize (ft):
|
29.53
|
|
Region of Interest (ROI):
|
1
|
|
Remote Users:
|
Up to 32
|
|
Reset Button:
|
|
|
Resolution:
|
6MP
|
|
S/N Ratio:
|
>52 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Security:
|
Digest authentication
HTTPS encryption
Password protection
IP address filtering
|
|
Sensor Size:
|
1/2.5"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/3-1/100000s
|
|
Special Technologies:
|
Hikvision ColorVu
|
|
Specialized Camera Feature:
|
Strobe Light
Audible Warning
|
|
Storage Humidity:
|
0% to 95% (non-condensing)
|
|
Storage Temperature:
|
-30 °C to 60 °C (-22 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
WDR 130dB
|
