Hikvision 2MP EXIR Outdoor H.265+ Mini Dome IP Security Camera with 4mm Fixed Lens - DS-2CD2523G0-IS 4MM

Name: Hikvision 2MP EXIR Outdoor H.265+ Mini Dome IP Security Camera with 4mm Fixed Lens - DS-2CD2523G0-IS 4MM
Brand: Hikvision
SKU: DS-2CD2523G0-IS 4MM
Price: 198.00 USD
Availability: InStock

Brand: Hikvision

Part Number: DS-2CD2523G0-IS 4MM

Write a Review

$198.00

✅ Help me pick a security camera

Technical Support

3 Year Warranty

Key Features:

Compression : H.265, H.264, H.264 Plus, H.265 Plus,
Field of View (Horizontal) : 86°Field of View
Max. FPS and Resolution : 30fps at 1080P
Lens Type : Fixed Lens
Lens Size : 4mm Lens
Sensor Type : CMOS
Sensor Size : 1/2.7" Sensor
Max. Storage Capacity : 128 GB Storage Capacity
Protection Code : IK08 IP66
Color : White
Material : Plastic Metal
UL Listed : Yes
Environmental : Outdoor
Sensor Size : 1/2.7"
Aperture : F2.0

Description
Compatible products
Additional Information
Q&A

Description

Hikvision 2MP EXIR Outdoor H.265+ Mini Dome IP Security Camera with 4mm Fixed Lens - DS-2CD2523G0-IS 4MM

The Hikvision DS-2CD2523G0-IS Outdoor EXIR Fixed Mini Dome Camera provides high definition output. It supports H.265+ video compression, which assures savings in bandwidth and storage.

The camera is equipped with a 2.8 mm and 4 mm fixed lens options, and offers an EXIR 2.0 range of up to 35 ft (10 m). Smart features, such as line crossing and intrusion detection are supported.

Key Features:

1/2.7" (2 MP) Progressive Scan CMOS
1920 x 1080 Resolution @ 30 fps
EXIR 2.0 Range Up to 35 ft (10 m)
4 mm Fixed Lens
H.265+, H.265, H.264+, H.264
120dB True WDR
MicroSD Card Slot Supports 128 GB
IP66, IK08 Protection
12 VDC and PoE (802.3af)

Downloads

Datasheet Hikvision-DS-2CD2523G0-IS-4MM-Datasheet-A1

Popular Search

Hikvision IP Security Cameras

Hikvision Security Cameras

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Alarm Input:	1 Channel
Alarm Output:	1 Channel
Aperture:	F2.0
Audio Compression:	G.711ulaw G.711alaw G.726 G.722.1 MP2L2 PCM
Audio Input:	2x Channel
Audio Output:	1x 3.5mm
Camera Style:	Mini Dome
Color:	White
Compatible Integration (API):	ONVIF Profile S ONVIF Profile G ISAPI
Compression:	H.265 H.264 H.264 Plus H.265 Plus

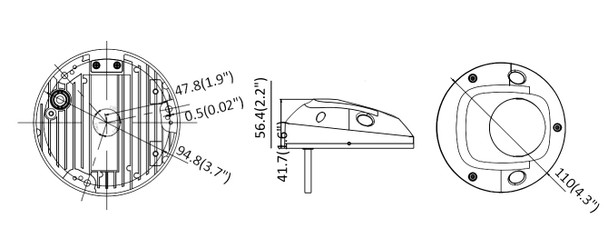

Dimensions:	4.3 x 2.2 in (110 x 56.4 mm)
Durability:	Weatherproof Vandal Resistant
Environmental:	Outdoor
Field of View (Horizontal):	86
Languages:	English
Lens Mount:	M12
Lens Size:	4mm
Lens Type:	Fixed Lens
Material:	Plastic Metal
Max. FPS and Resolution:	30fps at 1080P
Max. Storage Capacity:	128 GB
Minimum Illumination (B/W):	0 lux with IR illumination on
Minimum Illumination (Color):	0.028 lux at F2.0 AGC ON
Network Interface:	1x RJ-45 10M/100M Base-TX Ethernet
Night Vision Range (ft):	35
Operating Temperature:	-30 °C to 60 °C (-22 °F to 140 °F)
Power Consumption:	10 Watts
Power Supply:	12 VDC 0.7A PoE (IEEE 802.3af)
Protection Code:	IK08 IP66
Resolution:	2MP
SD Card Support:
Sensor Size:	1/2.7"
Sensor Type:	CMOS
Shutter Speed:	1/3-1/100000s
Technology:	Network (IP)
UL Listed:
Warranty:	3-year Manufacturer Warranty
Wavelength (nm):	850
Web Browser:	Internet Explorer Chrome Firefox Safari
Wide Dynamic Range (WDR):	True WDR 120dB
