Description
Hikvision DS-2CD2543G2-IS 4MM AcuSense 4MP IR Outdoor Mini Dome IP Camera with Audio and Alarm, 4mm Fixed Lens, White
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.
Key Features:
- High quality imaging with 4 MP resolution
- Clear imaging against strong backlight due to 120 dB WDR technology
- Efficient H.265 compression technology
- Focus on human and vehicle targets classification based on deep learning
- Audio and alarm interface available
- Water and dust resistant (IP67) and vandal resistant (IK08)
- Provides night vision of objects at a distance of up to 98.43 ft
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- Up to 2688 x 1520 video resolution
Downloads
Quick Start Guide
Hikvision-DS-2CD2543G2-IS-4MM-Quick-Start-Guide-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Aperture:
|
F1.6
|
|
Audio Compression:
|
AAC-LC
G.711
G.722.1
G.726
MP2L2
MP3
PCM
|
|
Camera Style:
|
Mini Dome
|
|
Certifications:
|
CB
CE-EMC
FCC
IC
KC
REACH
UL Listed
WEEE
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ISAPI
ONVIF Profile G
ONVIF Profile S
SDK
|
|
Compression:
|
H.264
H.264 Plus
H.265
H.265 Plus
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Detect (ft):
|
278.87
|
|

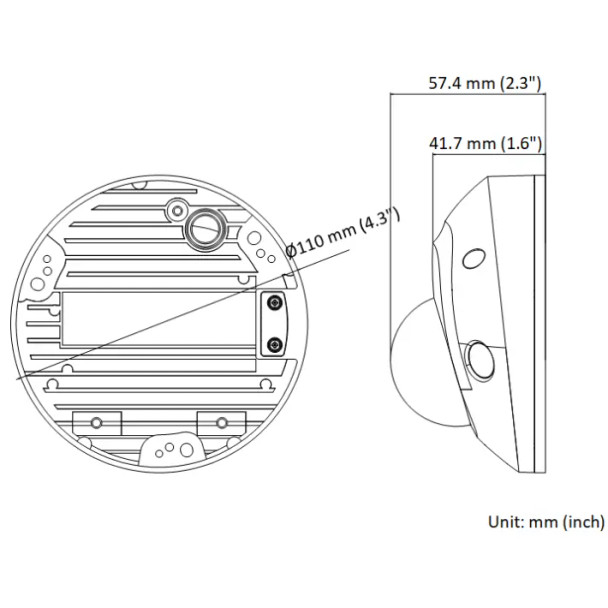

Dimensions:
|
110 x 57.4 mm (4.3 x 2.3 in)
|
|
Durability:
|
Vandal Resistant
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
83.7
|
|
Identify (ft):
|
29.53
|
|
Iris:
|
Fixed Iris
|
|
Languages:
|
English
Russian
Estonian
Bulgarian
Hungarian
Greek
German
Italian
Czech
Slovak
French
Polish
Dutch
Portuguese
Spanish
Romanian
Danish
Swedish
Norwegian
Finnish
Croatian
Slovenian
Serbian
Turkish
Korean
Traditional Chinese
Thai
Vietnamese
Japanese
Latvian
Lithuanian
Portuguese (Brazil)
Ukrainian
|
|
Lens Mount:
|
M12
|
|
Lens Size:
|
4mm
|
|
Lens Type:
|
Fixed Lens
|
|
Manufacturer Website:
|
https://us.hikvision.com/en
|
|
Material:
|
Aluminum
Plastic
|
|
Max Power Consumption:
|
6.5 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2688 x 1520
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (B/W):
|
0 Lux at F1.6 IR on
|
|
Minimum Illumination (Color):
|
0.005 Lux at F1.6 AGC On
|
|
Network Interface:
|
1x RJ-45 10M/100M self-adaptive Ethernet interface
|
|
Night Vision Range (ft):
|
98
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Observe (ft):
|
111.55
|
|
Power Supply:
|
PoE (IEEE 802.3af)
12 VDC
|
|
Product Series:
|
Hikvision AcuSense Series
Hikvision Value Series
|
|
Protection Code:
|
IK08
IP67
|
|
Recognize (ft):
|
55.77
|
|
Remote Users:
|
Up to 32
|
|
Reset Button:
|
|
|
Resolution:
|
4MP
|
|
S/N Ratio:
|
>52 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/3"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/3-1/100000s
|
|
Special Technologies:
|
Hikvision AcuSense
|
|
Storage Humidity:
|
0% to 95% (non-condensing)
|
|
Storage Temperature:
|
-30 °C to 60 °C (-22 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
|
Wavelength (nm):
|
850
|
|
Web Browser:
|
Chrome
Firefox
Internet Explorer
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
