Description
Hikvision DS-2CD2643G2-IZS AcuSense 4MP Outdoor IR Bullet IP Camera, 2.8-12mm Motorized Varifocal Lens, White
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.
Key Features:
- High quality imaging with 4 MP resolution
- Motorized varifocal lens for easy installation and monitoring
- Clear imaging against strong backlight due to 120 dB WDR technology
- Efficient H.265 compression technology
- Water and dust resistant (IP67) and vandal resistant (IK10)
- Focus on human and vehicle targets classification based on deep learning
Replacement of:
DS-2CD2643G1-IZS
Downloads
Datasheet
Hikvision-DS-2CD2643G2-IZS-Datasheet-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Alternative SKUs:
|
HX-2643G2
DS-2CD2643G2-IZS(2.8-12MM)
DS-2CD2643G2-IZS (2.8-12MM)
DS-2CD2643G2-IZS 2.8-12MM
DS-2CD2643G2-IZS-2.8-12MM
|
|
Aperture:
|
F1.6
|
|
Audio Compression:
|
G.711
G.722.1
G.726
MP2L2
PCM
MP3
AAC-LC
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Camera Style:
|
Bullet
|
|
Certifications:
|
FCC
IC
KC
UL Listed
CB
RoHS
WEEE
REACH
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
ISAPI
SDK
|
|
Compression:
|
H.264
H.264 Plus
H.265
H.265 Plus
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Detect (ft):
|
209.97
656.17
|
|

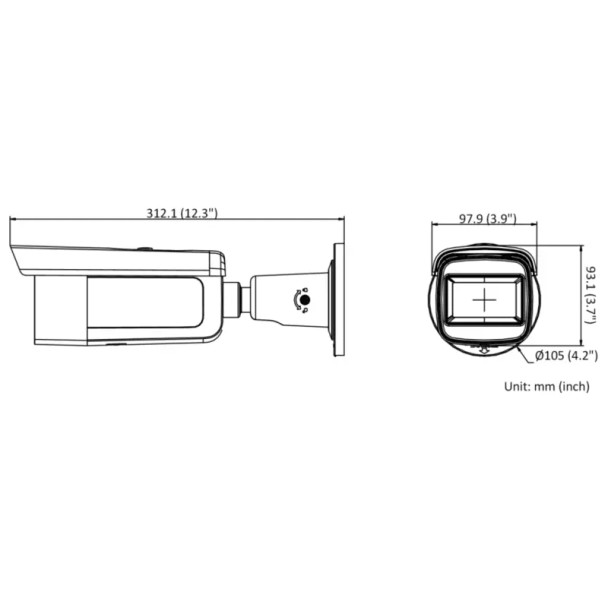

Dimensions:
|
308.5 x 97.9 x 93 mm (12.2 x 3.9 x 3.7 in)
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
95.8
29.2
|
|
Identify (ft):
|
20.99
65.62
|
|
Iris:
|
Fixed Iris
|
|
Languages:
|
English
Russian
Estonian
Bulgarian
Hungarian
Greek
German
Italian
Czech
Slovak
French
Polish
Dutch
Portuguese
Spanish
Romanian
Danish
Swedish
Norwegian
Finnish
Croatian
Slovenian
Serbian
Turkish
Korean
Traditional Chinese
Thai
Vietnamese
Japanese
Latvian
Lithuanian
Portuguese (Brazil)
Ukrainian
|
|
Lens Mount:
|
M14
|
|
Lens Size:
|
2.8~12mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Manufacturer Website:
|
https://us.hikvision.com/en
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
15 Watts
|
|
Max. FPS and Resolution:
|
30fps at 1920 x 1080
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (B/W):
|
0 lux at F1.6 with IR on
|
|
Minimum Illumination (Color):
|
0.005 Lux at F1.6 AGC On
|
|
Network Interface:
|
1x RJ-45 10M/100M self-adaptive Ethernet interface
|
|
Night Vision Range (ft):
|
196
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Observe (ft):
|
83.33
260.17
|
|
Power Supply:
|
PoE+ (IEEE802.3at Class 4)
12 VDC
|
|
Product Series:
|
Hikvision AcuSense Series
Hikvision Value Series
|
|
Protection Code:
|
IP67
IK10
|
|
Recognize (ft):
|
41.99
131.23
|
|
Remote Users:
|
Up to 32
|
|
Reset Button:
|
|
|
Resolution:
|
4MP
|
|
S/N Ratio:
|
>52 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/3-1/100000s
|
|
Special Technologies:
|
Hikvision AcuSense
|
|
Storage Humidity:
|
0% to 95% (non-condensing)
|
|
Storage Temperature:
|
-30 °C to 60 °C (-22 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
|
Wavelength (nm):
|
850
|
|
Web Browser:
|
Internet Explorer
Firefox
Chrome
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
