Description

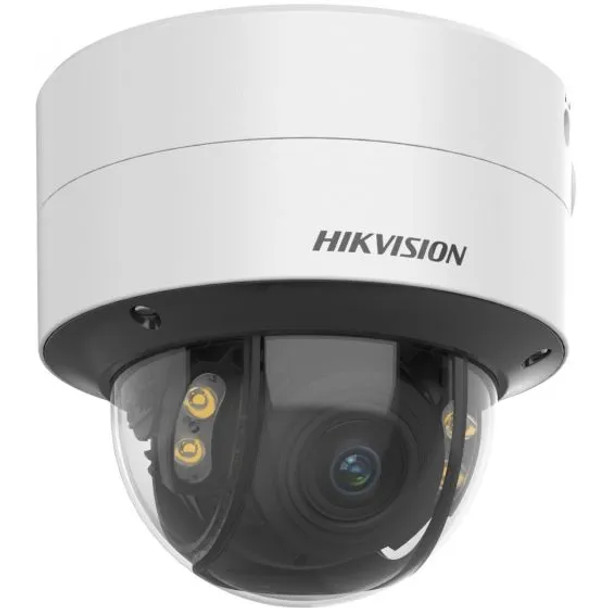

Hikvision DS-2CD2747G2-LZS Performance Series ColorVu White-Light 4MP Dome IP Security Camera, 3.6~9mm Motorized Varifocal Lens, White
Hikvision ColorVu technology provides 24/7 vivid color images with ƒ/1.0 advanced lenses and high performance sensors. The ƒ/1.0 superaperture collects more light to produce brighter images. Advanced sensor technology vastly improves the utilization of available light.
Key Features:
- High Quality Imaging with 4 MP Resolution
- Motorized Varifocal Lens for Easy Installation and Monitoring
- 24/7 Color Imaging
- Clear Imaging Against Strong Backlight Due to 130 dB WDR Technology
- Focus on Human and Vehicle Targets Classification Based on Deep Learning
- Efficient H.265+ Compression Technology
- Water and Dust Resistant (IP67) and Vandal Resistant (IK10)
Downloads
Datasheet
Hikvision-DS-2CD2747G2-LZS-Datasheet-A1
User Manual
Hikvision-DS-2CD2747G2-LZS-User-Manual-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Alternative SKUs:
|
HX-OD2747G22
|
|
Analytics:
|
Motion Detection
Tampering
Line Crossing
Intrusion Detection
|
|
Aperture:
|
F1.0
|
|
Audio Compression:
|
G.711ulaw
G.711alaw
G.722.1
G.726
MP2L2
PCM
MP3
AAC
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Camera Style:
|
Dome
|
|
Certifications:
|
CE
cULus
FCC
REACH
RoHS
RCM
|
|
Color:
|
White
|
|
Compression:
|
H.265
H.265 Plus
H.264
H.264 Plus
MJPEG
|
|
Connection Type:
|
Wired
|
|
Detect (ft):
|
226.38
406.82
|
|
Dimensions:
|
155 x 152 mm (6.1 x 6.0 in)
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Diagonal):
|
112.2
55
|
|
Field of View (Horizontal):
|
92.3
48
|
|
Field of View (Vertical):
|
48.4
27
|
|
Identify (ft):
|
22.64
40.68
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Highlight Compensation (HLC)
|
|
Image Settings:
|
Brigthness
Contrast
Sharpness
Mirror
Privacy Mask
|
|
Iris:
|
Fixed Iris
|
|
Languages:
|
English
Russian
Estonian
Bulgarian
Hungarian
Greek
German
Italian
Czech
Slovak
French
Polish
Dutch
Portuguese
Spanish
Romanian
Danish
Swedish
Norwegian
Finnish
Croatian
Slovenian
Serbian
Turkish
Korean
Traditional Chinese
Thai
Vietnamese
Japanese
Latvian
Lithuanian
Portuguese (Brazil)
Ukrainian
|
|
Lens Mount:
|
M20
|
|
Lens Size:
|
3.6~9mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
12.9 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2688 x 1520
|
|
Max. Storage Capacity:
|
256 GB
|
|
Network Interface:
|
1x RJ-45 10M/100M self-adaptive Ethernet interface
|
|
Night Vision Range (ft):
|
131
|
|
Night Vision Type:
|
Night Vision (Color - White Light)
|
|
Noise Reduction:
|
3D DNR
|
|
Observe (ft):
|
89.90
161.72
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
Hikvision ColorVu Series
|
|
Protection Code:
|
IP67
IK10
|
|
Recognize (ft):
|
45.28
81.36
|
|
Remote Users:
|
Up to 32
|
|
Reset Button:
|
|
|
Resolution:
|
4MP
|
|
S/N Ratio:
|
>52 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Shutter Speed:
|
1/3-1/100000s
|
|
Special Technologies:
|
Hikvision ColorVu
|
|
Specialized Camera Feature:
|
Color in Near-Total Darkness
|
|
Storage Humidity:
|
0% to 95% (non-condensing)
|
|
Storage Temperature:
|
-30 °C to 60 °C (-22 °F to 140 °F)
|
|
Sub Stream:
|
VGA
|
|
Technology:
|
Network (IP)
|
|
Third Stream:
|
1080P
|
|
Wide Dynamic Range (WDR):
|
WDR 130dB
|
