Description

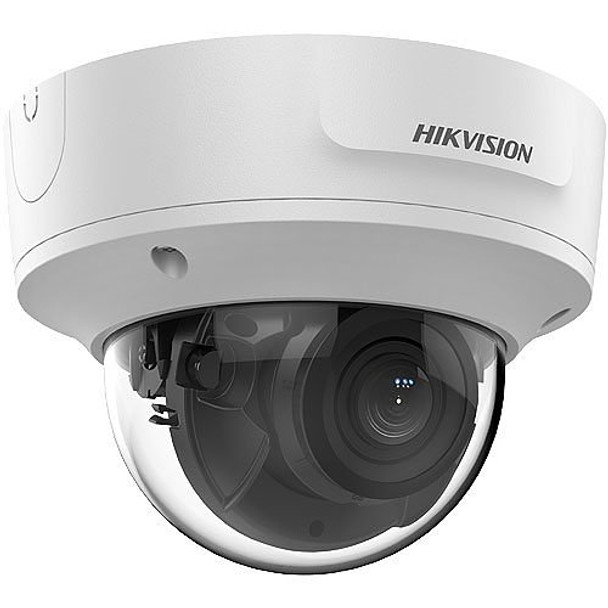

Hikvision DS-2CD2783G2-IZS AcuSense 8MP Outdoor IR Dome IP Camera, 2.8~12mm Motorized Varifocal Lens, White
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.
Key Features:
- High quality imaging with 8 MP resolution
- Motorized varifocal lens for easy installation and monitoring
- Efficient H.265 compression technology
- Clear imaging against strong backlight due to 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Audio and alarm interface available
- Water and dust resistant (IP67) and vandal-resistant (IK10)
Downloads
Datasheet
Hikvision-DS-2CD2783G2-IZS-Datasheet-A1
Quick Start Guide
Hikvision-DS-2CD2783G2-IZS-Quick-Start-Guide-A1
User Manual
Hikvision-DS-2CD2783G2-IZS-User-Manual-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Alternative SKUs:
|
HX-OD2783G2
DS-2CD2783G2-IZS(2.8-12MM)
DS-2CD2783G2-IZS (2.8-12MM)
DS-2CD2783G2-IZS 2.8-12MM
DS-2CD2783G2-IZS-2.8-12MM
|
|
Aperture:
|
F1.6
|
|
Audio Compression:
|
G.711
G.722.1
G.726
MP2L2
PCM
MP3
AAC-LC
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Camera Style:
|
Dome
|
|
Certifications:
|
FCC
CE
RCM
RoHS
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ISAPI
ONVIF Profile S
ONVIF Profile T
SDK
|
|
Compression:
|
H.265
H.265 Plus
H.264
H.264 Plus
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Detect (ft):
|
318.24
951.44
|
|
Dimensions:
|
153.3 X 111.6 mm (6.1 x 4.4 in)
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
108
30
|
|
Identify (ft):
|
29.53
95.14
|
|
Iris:
|
Auto (DC-iris)
|
|
Languages:
|
English
Russian
Estonian
Bulgarian
Hungarian
Greek
German
Italian
Czech
Slovak
French
Polish
Dutch
Portuguese
Spanish
Romanian
Danish
Swedish
Norwegian
Finnish
Croatian
Slovenian
Serbian
Turkish
Korean
Traditional Chinese
Thai
Vietnamese
Japanese
Latvian
Lithuanian
Portuguese (Brazil)
Ukrainian
|
|
Lens Mount:
|
M14
|
|
Lens Size:
|
2.8~12mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Manufacturer Website:
|
https://us.hikvision.com/en
|
|
Max Power Consumption:
|
12.5 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2688 x 1520
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (B/W):
|
0 Lux at F1.6 IR on
|
|
Minimum Illumination (Color):
|
0.005 Lux at F1.6 AGC On
|
|
Network Interface:
|
1x RJ-45 10M/100M self-adaptive Ethernet interface
|
|
Night Vision Range (ft):
|
131
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Observe (ft):
|
124.67
377.30
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
Hikvision AcuSense Series
Hikvision Value Series
|
|
Protection Code:
|
IK10
IP67
|
|
Recognize (ft):
|
62.34
190.29
|
|
Remote Users:
|
Up to 32
|
|
Resolution:
|
8MP (4K)
|
|
S/N Ratio:
|
>52 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/3-1/100000s
|
|
Special Technologies:
|
Hikvision AcuSense
|
|
Storage Humidity:
|
0% to 95% (non-condensing)
|
|
Storage Temperature:
|
-30 °C to 60 °C (-22 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
|
Wavelength (nm):
|
850
|
|
Web Browser:
|
Chrome
Firefox
Internet Explorer
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
