Description

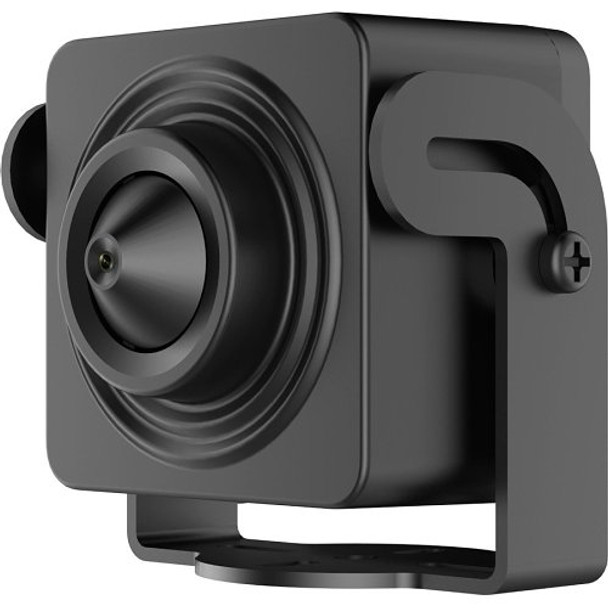

Hikvision DS-2CD2D25G1-D/NF 2MP WDR Mini IP Security Camera, 3.7mm Lens, Black
Key Features:
- High quality imaging with 2 MP resolution
- Efficient H.265+ compression technology to save bandwidth and storage
- Clear imaging against strong back light due to 120 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
Downloads
Datasheet
Hikvision-DS-2CD2D25G1-D-NF-Datasheet-A1
Additional Information
|
Alternative SKUs:
|
DS-2CD2D25G1-D/NF 3.7MM
HX-CV2D25F3
|
|
Analytics:
|
Tampering
Motion Detection
Intrusion Detection
Line Crossing
Region Entrance Detection
Region Exiting Detection
Object Detection
|
|
Aperture:
|
F2.5
|
|
Audio Capability:
|
One-way Audio
|
|
Audio Compression:
|
G.711
G.722.1
G.726
MP2L2
PCM
AAC
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Camera Style:
|
Mini
|
|
Certifications:
|
FCC
CE
RCM
IC
KC
LOA
RoHS
WEEE
REACH
|
|
Color:
|
Black
|
|
Compatible Integration (API):
|
ISAPI
SDK
ISUP
ONVIF
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Detect (ft):
|
194.55
|
|
Dimensions:
|
31.5 x 31.5 x 39.7 mm (1.2 x 1.2 x 1.6 in)
|
|
Environmental:
|
Indoor
|
|
Field of View (Diagonal):
|
87.3
|
|
Field of View (Horizontal):
|
75.5
|
|
Field of View (Vertical):
|
41.6
|
|
Identify (ft):
|
19.36
|
|
Image Enhancements:
|
Backlight Compensation (BLC)
Highlight Compensation (HLC)
Auto Gain Control (AGC)
Defog
|
|
Image Settings:
|
Saturation
Brigthness
Contrast
Sharpness
Privacy Mask
|
|
Languages:
|
English
Traditional Chinese
Russian
Turkish
Japanese
Korean
Thai
Vietnamese
Estonian
Bulgarian
Hungarian
Czech
Slovak
French
Italian
German
Spanish
Portuguese
|
|
Lens Mount:
|
Mini
|
|
Lens Size:
|
3.7mm
|
|
Lens Type:
|
Fixed Lens
|
|
Main Stream:
|
1080P
|
|
Max. FPS and Resolution:
|
60fps at 1920 x 1080
|
|
Minimum Illumination (Color):
|
0.002 Lux at F1.2 AGC ON
|
|
Network Interface:
|
1x RJ-45 10M/100M self-adaptive Ethernet interface
|
|
Noise Reduction:
|
3D DNR
|
|
Observe (ft):
|
77.09
|
|
Power Supply:
|
12 VDC
|
|
Recognize (ft):
|
39.04
|
|
Region of Interest (ROI):
|
1
|
|
Remote Users:
|
Up to 32
|
|
Reset Button:
|
|
|
Resolution:
|
2MP
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/3-1/100000s
|
|
Storage Humidity:
|
0% to 95% (non-condensing)
|
|
Storage Temperature:
|
-30 °C to 60 °C (-22 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
