Description

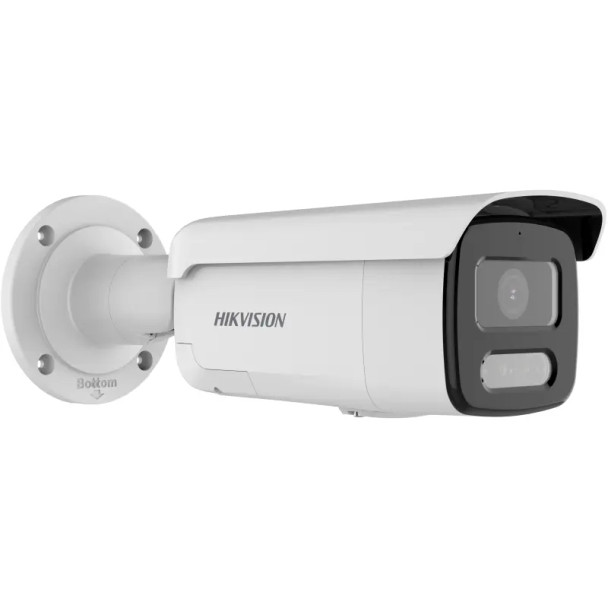

Hikvision DS-2CD2T47G2-LSU/SL(2.8MM) ColorVu 4MP Strobe Light and Audible Warning Bullet IP Security Camera, 2.8mm Fixed Lens, White
Hikvision ColorVu technology provides 24/7 vivid colorful images with F1.0 advanced lenses and high performance sensors. F1.0 super-aperture collects more light to produce brighter images. Advanced sensor technology can vastly improve the utilization of available light.
Key Features:
- Clear imaging against strong backlight due to 130 dB WDR technology
- Focus on human and vehicle targets classification based on deep learning
- 24/7 colorful imaging
- Active strobe light and audio alarm to warn intruders off
- Provide real-time security via built-in two-way audio
- Audio and alarm interface available
- Water and dust resistant (IP67)
- High quality imaging with 4 MP resolution
- Efficient H.265+ compression technology
Downloads
Quick Start Guide
Hikvision-DS-2CD2T47G2-LSU-SL(2.8MM)-Quick-Start-Guide-A1
Firmware
Firmware:IPC_G5_EN_STD_5.7.10_220720
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Alternative SKUs:
|
DS-2CD2T47G2-LSU/SL
HX-BL2T47SL2
DS-2CD2T47G2-LSU/SL 2.8MM
|
|
Analytics:
|
Motion Detection
Human and Vehicle Detection
Tampering
Line Crossing
Intrusion Detection
|
|
Aperture:
|
F1.0
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711ulaw
G.711alaw
G.722.1
G.726
MP2L2
PCM
MP3
AAC
|
|
Audio Support:
|
Built-in Microphone
Built-in Speaker
|
|
Camera Style:
|
Bullet
|
|
Certifications:
|
CE
FCC
RoHS
WEEE
REACH
RCM
KC
UL Listed
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ISAPI
SDK
ONVIF Profile S
ONVIF Profile T
|
|
Compression:
|
H.265
H.265 Plus
H.264
H.264 Plus
MJPEG
|
|
Connection Type:
|
Wired
|
|
Detect (ft):
|
190.91
|
|
Dimensions:
|
105 x 289.5 mm (4.1 x 11.4 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Diagonal):
|
133.6
|
|
Field of View (Horizontal):
|
111.9
|
|
Field of View (Vertical):
|
60.5
|
|
Identify (ft):
|
19.03
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Highlight Compensation (HLC)
|
|
Image Settings:
|
Saturation
Brigthness
Contrast
Sharpness
Mirror
Privacy Mask
|
|
Languages:
|
English
Russian
Estonian
Bulgarian
Hungarian
Greek
German
Italian
Czech
Slovak
French
Polish
Dutch
Portuguese
Spanish
Romanian
Danish
Swedish
Norwegian
Finnish
Croatian
Slovenian
Serbian
Turkish
Korean
Traditional Chinese
Thai
Vietnamese
Japanese
Latvian
Lithuanian
Portuguese (Brazil)
Ukrainian
|
|
Lens Mount:
|
M16
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
9 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2688 x 1520
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (B/W):
|
0 Lux with white light
|
|
Minimum Illumination (Color):
|
0.0005 Lux at F1.0 AGC ON
|
|
Network Interface:
|
1x RJ-45 10M/100M self-adaptive Ethernet interface
|
|
Night Vision Range (ft):
|
196.85
|
|
Night Vision Type:
|
Night Vision (Color - White Light)
|
|
Noise Reduction:
|
3D DNR
|
|
Observe (ft):
|
75.79
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
Hikvision ColorVu Series
|
|
Protection Code:
|
IP67
|
|
Recognize (ft):
|
38.06
|
|
Region of Interest (ROI):
|
1
|
|
Remote Users:
|
Up to 32
|
|
Reset Button:
|
|
|
Resolution:
|
4MP
|
|
S/N Ratio:
|
>52 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Security:
|
Digest authentication
IP address filtering
Password protection
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/3-1/100000s
|
|
Special Technologies:
|
Hikvision ColorVu
|
|
Specialized Camera Feature:
|
Color in Near-Total Darkness
|
|
Storage Humidity:
|
0% to 95% (non-condensing)
|
|
Storage Temperature:
|
-30 °C to 60 °C (-22 °F to 140 °F)
|
|
Sub Stream:
|
VGA
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
WDR 130dB
|
