Description

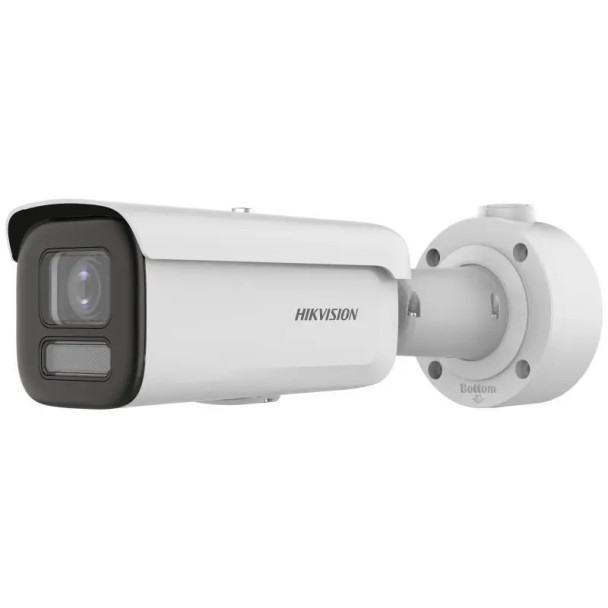

Hikvision DS-2CD3688G2T-LIZS 8MP ColorVu Smart Hybrid Light Outdoor Dual Illumination Bullet IP Camera, 2.7~13.5mm Motorized Varifocal Lens, White
Presenting our top-tier bullet video security camera with varifocal lens, designed for both indoor and outdoor use. Experience the power of AcuSense technology, intelligently filtering human and vehicle targets to minimize false alarms. The camera's flexible lighting options include IR, white light, and smart hybrid light, ensuring optimal visibility. ColorVu technology enhances image quality even in extremely low light conditions. Secure your property with this rugged and reliable camera, delivering unmatched performance and peace of mind.
Key Features:
- High quality imaging with 8 MP resolution
- Smart Dual-Light: advanced technology with long range
- Clear imaging against strong back light due to 120 dB WDR technology
- Efficient H.265+ compression technology
- Motorized varifocal lens for easy installation and monitoring
- Focus on human and vehicle classification based on deep learning
- Water and dust resistant (IP67) and vandal resistant (IK10)
Downloads
Quick Start Guide
Hikvision-DS-2CD3688G2T-LIZS-Quick-Start-Guide-A1
User Manual
Hikvision-DS-2CD3688G2T-LIZS-User-Manual-A1
Firmware
Firmware:-IPCE-H-G5-V5.7.51-230413
Popular Search
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
2 Channel
|
|
Alarm Output:
|
2 Channel
|
|
Alternative SKUs:
|
DS-2CD3688G2T-LIZS 2.7-13.5MM
|
|
Analytics:
|
Defocus Detection
Face Detection
Intrusion Detection
Line Crossing
Motion Detection
People Counting
Face Recognition
|
|
Aperture:
|
F1.2
|
|
Audio Compression:
|
AAC-LC
G.711alaw
G.711ulaw
G.722.1
G.726
MP2L2
MP3
PCM
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Camera Style:
|
Bullet
|
|
Certifications:
|
CE
FCC
RoHS
UL Listed
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ISAPI
ISUP
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
SDK
|
|
Compression:
|
H.264
H.264 Plus
H.265
H.265 Plus
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Detect (ft):
|
285.43
708.66
|
|
Dimensions:
|
334 x 97.9 x 95.7 mm (13.2 x 3.9 x 3.8 in)
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
112.4
41.2
|
|
Identify (ft):
|
29.53
72.18
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
Backlight Compensation (BLC)
|
|
Iris:
|
Auto (DC-iris)
|
|
Languages:
|
English
Russian
Estonian
Bulgarian
Hungarian
Greek
German
Italian
Czech
Slovak
French
Polish
Dutch
Portuguese
Spanish
Romanian
Danish
Swedish
Norwegian
Finnish
Croatian
Slovenian
Serbian
Turkish
Korean
Traditional Chinese
Thai
Vietnamese
Japanese
Latvian
Lithuanian
Portuguese (Brazil)
Ukrainian
|
|
Lens Size:
|
2.7~13.5mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Manufacturer Website:
|
https://us.hikvision.com/en
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
18 Watts
|
|
Max. FPS and Resolution:
|
25fps at 3840 x 2160 (4K)
|
|
Max. Storage Capacity:
|
512 GB
|
|
Minimum Illumination (B/W):
|
0 Lux with Light
|
|
Minimum Illumination (Color):
|
0.0028 Lux at F1.2 AGC ON
|
|
Network Interface:
|
1x RJ-45 10M/100M self-adaptive Ethernet interface
|
|
Night Vision Range (ft):
|
196
|
|
Night Vision Type:
|
Night Vision (Color - White Light)
Night Vision (IR)
Smart IR
|
|
Noise Reduction:
|
3D DNR
|
|
Observe (ft):
|
114.83
282.15
|
|
Power Supply:
|
12 VDC
PoE+ (IEEE802.3at Class 4)
|
|
Product Series:
|
Hikvision AcuSense Series
Hikvision ColorVu Series
Hikvision Performance Series
Hikvision ColorVu Smart Hybrid Light Series
|
|
Protection Code:
|
IK10
IP67
|
|
Recognize (ft):
|
55.77
141.08
|
|
Remote Users:
|
Up to 32
|
|
Reset Button:
|
|
|
Resolution:
|
8MP (4K)
|
|
S/N Ratio:
|
>52 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/3-1/100000s
|
|
Special Technologies:
|
Hikvision AcuSense
Hikvision ColorVu
|
|
Specialized Camera Feature:
|
Deep-learning
Dual Light (Infrared and Whitelight)
|
|
Technology:
|
Network (IP)
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
