Description

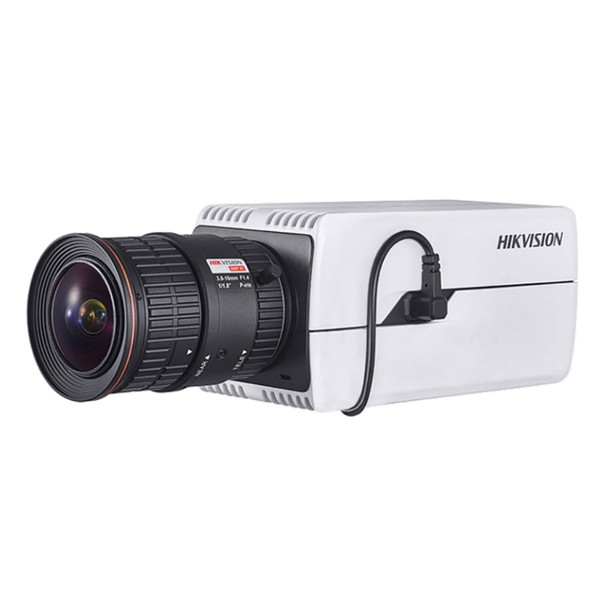

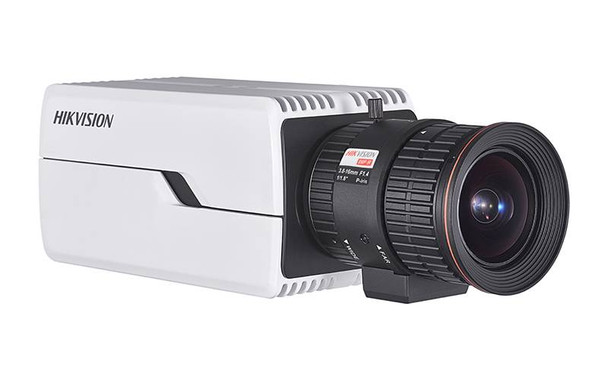

Hikvision DS-2CD5085G0-AP 8MP H.265+ Smart Indoor Box IP Security Camera
The Hikvision DS-2CD5085G0-AP Indoor Smart Network Box Camera provides high definition output. It supports H.265+ video compression, which assures savings in bandwidth and storage.
The camera can be equipped with up to eight different Hikvision lens options, which are installed on a standard CS mount.
Smart features, such as line crossing, intrusion, and scene change detection are also supported.
Key Features:
- 1/1.8" (8 MP) Progressive Scan CMOS
- 3840 x 2160 Resolution @ 30 fps
- Minimmum Illumination: Color: 0.009 lux @ (f/1.2, AGC on)
- No Lens Included
- CS Lens Mount Options
- H.265+, H.265, H.264+, H.264
- 5 Defined Streams and 5 Custom Streams
- Main Stream: 30 fps (3840 × 2160, 3200 × 1800, 2560 × 1440, 1920 × 1080, 1280 × 720)
- 120dB WDR
- Alarm Input/Output
- 12 VDC Accessory Output
- MicroSD Card Slot Supports 256 GB
- 12 VDC and PoE (802.3af)
Replacement of:
DS-2CD5065G0
DS-2CD5065G0-AP
Downloads
Datasheet
Hikvision-DS-2CD5085G0-AP-Datasheet-A1
User Manual
Hikvision-DS-2CD5085G0-AP-User-Manual-A1
Quick Start Guide
Hikvision-DS-2CD5085G0-AP-Quick-Start-Guide-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Analytics:
|
Line Crossing
|
|
Camera Style:
|
Box
|
|
Compression:
|
H.265
|
|
Environmental:
|
Indoor
|
|
Lens Type:
|
No Lens
|
|
Manufacturer Website:
|
https://us.hikvision.com/en
|
|
Max. Storage Capacity:
|
256 GB
|
|
Resolution:
|
8MP (4K)
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
