Description
Hikvision DS-2CD6425G0/F-11 Dual-Lens DeepinView Covert Network Camera, Black

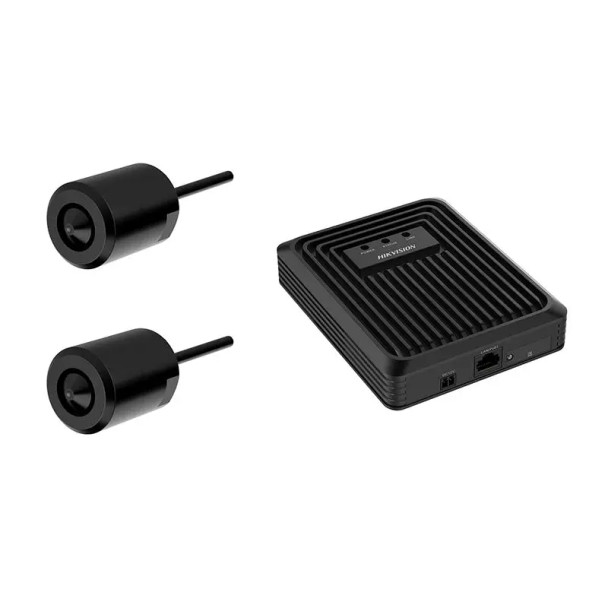

The DS-2CD6425G0/F-xx is a covert camera that can be used for ATM surveillance. It is sold as a kit and includes a base (DS-2CD6425G0/F-C2), two front-end cameras, and a 26 ft (8 m) cable.
Front-end camera options include:
Cylindrical Lenses (DS-2CD6425G0/F-L10), L-Shaped Lenses (DS-2CD6425G0/F-L20), and Tube-Shaped Lenses (DS-2CD6425G0/F-L30).
The product features 1080p HD image resolution, 120 dB WDR and a host of smart features, such as line crossing, intrusion, unattended baggage and object removal detection.
Key Features:
- 1/2.8" Progressive Scan CMOS
- 1920 × 1080 @ 30 fps
- 120 dB WDR
- Supports PoE
- Built-in MicroSD/SDHC/SDXC Card Slot, Up to 128 GB
- Audio and Alarm Input and Output
- Line Crossing, Intrusion, Unattended Baggage and Object Removal Detection
- Face Capture with Deep-Learning Technology
Downloads
Datasheet
Hikvision-DS-2CD6425G0-F-11-Datasheet-A1
Additional Information
|
Alternative SKUs:
|
DS2CD6425G0/F113.7MM
HX-CV6425F11
|
|
Analytics:
|
Line Crossing
Region Exiting Detection
Region Entrance Detection
Intrusion Detection
Unattended Baggage Detection
Object Removal Detection
|
|
Audio Capability:
|
One-way Audio
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Camera Style:
|
Detector Shaped
|
|
Certifications:
|
cULus
CE
FCC
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Field of View (Diagonal):
|
87
|
|
Field of View (Horizontal):
|
75
|
|
Field of View (Vertical):
|
41.5
|
|
Image Enhancements:
|
Backlight Compensation (BLC)
Highlight Compensation (HLC)
Defog
Electronic Image Stabilization (EIS)
Auto Gain Control (AGC)
|
|
Image Settings:
|
Brigthness
Saturation
Sharpness
Contrast
|
|
Lens Size:
|
3.7mm
|
|
Lens Type:
|
Fixed Lens
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
16 Watts
|
|
Max. FPS and Resolution:
|
30fps at 1920 x 1080
|
|
Max. Storage Capacity:
|
128 GB
|
|
Network Interface:
|
1x RJ-45 10M/100M self-adaptive Ethernet interface
|
|
Noise Reduction:
|
3D DNR
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Resolution:
|
2MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Serial Interface:
|
1x RS232
1x RS485
|
|
Shutter Speed:
|
1/25-1/100000s
1-1/100000s
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
