Description

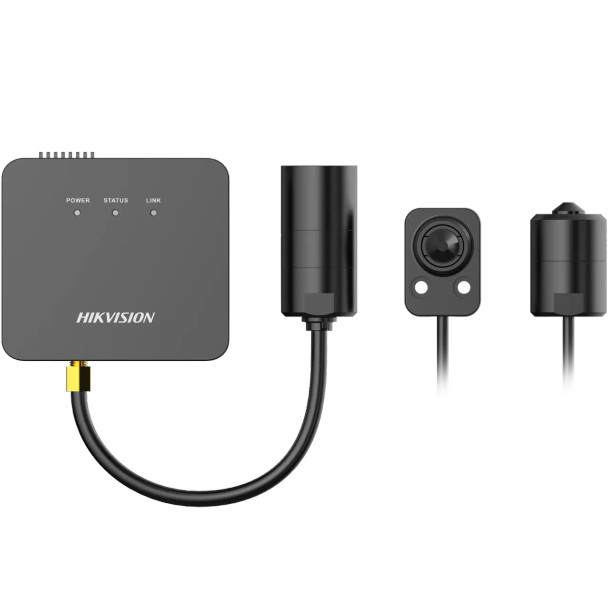

Hikvision DS-2CD6425G1-20 3.7mm 2MP Indoor Pinhole IP Security Camera with 2.8mm Fixed Lens and Mini Lens Mount
Key Features:
- High quality imaging with 2 MP resolution
- Efficient H.265+ compression technology to save bandwidth and storage
- Clear imaging against strong back light due to 120 dB true WDR technology
- Audio and alarm interface available
- 3D DNR technology delivers clean and sharp images
Downloads
Datasheet
Hikvision-DS-2CD6425G1-XX-Datasheet-A1
Quick Start Guide
Hikvision-DS-2CD6425G1-XX-Quick-Start-Guide-A1
User Manual
Hikvision-DS-2CD6425G1-XX-User-Manual-A1
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Alternative SKUs:
|
DS-2CD6425G1-XX
DS-2CD6425G1
DS-2CD6425G1-30 (2.8MM)
DS-2CD6425G1-30 2.8MM
DS-2CD6425G1-30 -2.8MM
|
|
Aperture:
|
F2.5
|
|
Audio Capability:
|
One-way Audio
|
|
Audio Compression:
|
G.711
G.722.1
G.726
MP2L2
PCM
AAC
|
|
Audio Input:
|
1x 3.5mm
|
|
Audio Output:
|
1x 3.5mm
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
Pinhole
|
|
Certifications:
|
FCC
CE
RoHS
WEEE
|
|
Color:
|
Black
|
|
Compatible Integration (API):
|
ONVIF
ISAPI
SDK
ISUP
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Day (Color)
Night (B/W)
Auto
Schedule
|
|
Dimensions:
|
77.5 x 69 x 26 mm (3.1 x 2.7 x 1.0 in)
|
|
Environmental:
|
Indoor
|
|
Field of View (Horizontal):
|
75Ç5
|
|
Iris:
|
Fixed Iris
|
|
Languages:
|
English
Traditional Chinese
Russian
Turkish
Japanese
Korean
Thai
Vietnamese
Estonian
Bulgarian
Hungarian
Czech
Slovak
French
Italian
German
Spanish
Portuguese
|
|
Lens Mount:
|
Mini
|
|
Lens Size:
|
4mm
|
|
Lens Type:
|
Fixed Lens
|
|
Manufacturer Website:
|
https://us.hikvision.com/en
|
|
Max Power Consumption:
|
3.65 Watts
|
|
Max. FPS and Resolution:
|
30fps at 1080P
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (Color):
|
0.002 Lux
|
|
Network Interface:
|
1x RJ-45 10/100 Mbps
|
|
Noise Reduction:
|
3D DNR
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
Hikvision Smart Series
|
|
Reset Button:
|
|
|
Resolution:
|
2MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Serial Interface:
|
1x RS485
|
|
Shutter Speed:
|
1/3-1/100000s
|
|
Storage Humidity:
|
0% to 95% (non-condensing)
|
|
Storage Temperature:
|
-30 °C to 60 °C (-22 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
