Description

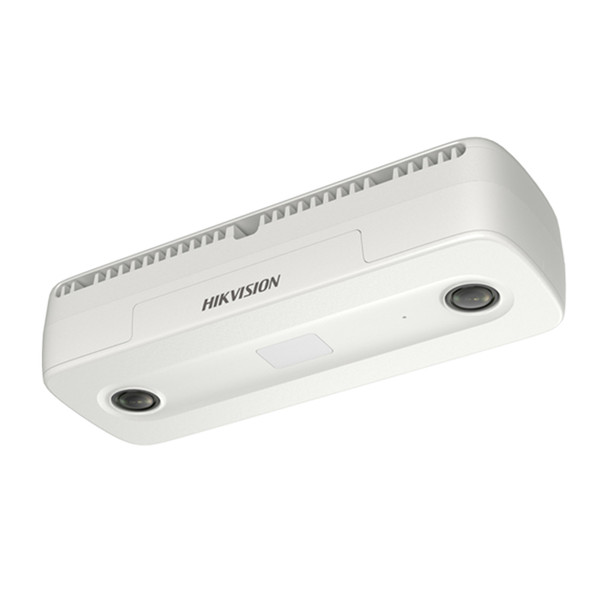

Hikvision DS-2CD6825G0/C-IS 2MP IR Indoor Multi-sensor IP Security Camera for People Counting, H.254+, 2mm Fixed Lens, Built-in Microphone
Hikvision’s DS-2CD6825G0/C-I(V)S is a specialized people counting camera that supports the separate counting of people entering, exiting, and passing by a given area.
The camera combines basic event technology, such as motion detection and video tampering alarm, and people counting technology, such as height filtering.
Key Features:
- High quality imaging with 2 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 105 dB WDR technology
- People Counting for Business Intelligence
- Social Distance Measurement for Safety (Requires loading Social Distance firmware)
- Social Density Tracking for Safety Social Density Tracking for Safety (Requires loading Social Distance firmware)
- Minimum Illumination Color: 0.0176 lux @ f/2.25, B/W: 0 lux with IR
- Main Stream: 30 fps (1920 × 1080, 1280 × 720)
- 12 VDC, PoE (802.3af), 8.3 W Max.
- 1Built-in microphone
- 1Night Vision range up to 20ft
- 12mm fixed lens, Horizontal FOV: 104.5°
- 1ONVIF S,G
Downloads
Datasheet
Hikvision-DS-2CD6825G0-C-IS-Datasheet-A1
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Analytics:
|
People Counting
Motion Detection
|
|
Aperture:
|
F2.25
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Audio Support:
|
Built-in Microphone
|
|
Camera Style:
|
Multi-sensor
|
|
Compatible Integration (API):
|
ONVIF Profile S
ONVIF Profile G
ISAPI
Ehome 5.0
Hikvision SDK
|
|
Compression:
|
H.265
H.265 Plus
H.264
H.264 Plus
MJPEG
|
|
Environmental:
|
Indoor
|
|
Field of View (Horizontal):
|
104.5
|
|
Languages:
|
English
|
|
Lens Mount:
|
M12
|
|
Lens Size:
|
2mm
|
|
Lens Type:
|
Fixed Lens
|
|
Manufacturer Website:
|
https://us.hikvision.com/en
|
|
Max Power Consumption:
|
8.3 Watts
|
|
Max. FPS and Resolution:
|
30fps at 1080P
|
|
Network Interface:
|
1x RJ-45 10M/100M Base-TX Ethernet
|
|
Night Vision Range (ft):
|
20
|
|
Noise Reduction:
|
3D DNR
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
Hikvision Smart Series
|
|
Remote Users:
|
Up to 32
|
|
Resolution:
|
2MP
|
|
Sensor Size:
|
1/2.7"
|
|
Sensor Type:
|
CMOS
|
|
Serial Interface:
|
1x RS485
|
|
Storage Temperature:
|
-30 °C to 60 °C (-22 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wavelength (nm):
|
850
|
|
Web Browser:
|
Chrome
Firefox
Safari
Internet Explorer
|
|
Wide Dynamic Range (WDR):
|
Digital WDR (D-WDR)
|
