Description

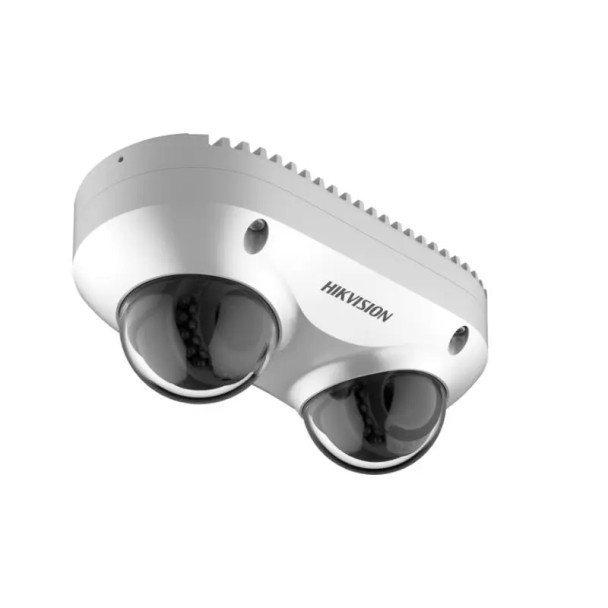

Hikvision DS-2CD6D42G0-IS 6mm 4MP Outdoor Dual-Directional Dome IP Security Camera with 6mm Lens and Built-In Microphone
The Hikvision DS-2CD6D42G0-IS PanoVu camera delivers exceptional dual-directional monitoring with high-quality 4MP resolution, providing comprehensive coverage that eliminates blind spots. Featuring two independent camera sensors with 6mm lenses, this innovative design offers a 49.1° horizontal field of view per sensor, making it ideal for monitoring hallways, corridors, building perimeters, and areas requiring bidirectional surveillance.
Built for demanding outdoor applications, this camera combines IP67 weatherproof and IK10 vandal-resistant protection, ensuring reliable operation in harsh environments from -22°F to 140°F. The dual-lens configuration supports 2-channel WDR (120 dB) technology, delivering clear imaging even in scenes with extreme backlighting. Efficient H.265 compression significantly reduces bandwidth and storage requirements without compromising image quality.
Advanced features include built-in microphones for real-time audio security, 3D DNR technology for clean and sharp images, and Power over Ethernet (PoE) for simplified installation. The camera supports up to 33 feet IR illumination range per sensor, providing reliable nighttime visibility. With support for SD card storage up to 256GB and intelligent event detection, this dual-directional camera offers a comprehensive surveillance solution.
Key Features:
- Dual 4MP sensors with 6mm lenses for bidirectional coverage; eliminates blind spots and provides comprehensive monitoring of corridors and perimeters
- 120 dB WDR technology on both channels; ensures clear imaging against strong backlighting in challenging lighting conditions
- IP67 weatherproof and IK10 vandal-resistant ratings; engineered for reliable outdoor performance in harsh environments and high-risk areas
- H.265 compression technology; reduces bandwidth usage by up to 50% compared to H.264 while maintaining image quality
- Built-in microphones for audio security; enables real-time audio monitoring without additional audio cabling
- Power over Ethernet (PoE 802.3af); simplifies installation with single-cable solution for both power and data
- Up to 33 feet IR illumination per sensor; provides reliable nighttime visibility in both viewing directions
- SD card support up to 256GB; offers local backup recording and edge storage capabilities
Downloads
Additional Information
|
Aperture:
|
F1.6
|
|
Audio Capability:
|
Built-in Microphone
|
|
Camera Style:
|
Dome
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Day/Night:
|
|
|
Dimensions:
|
6.5 x 3.3 x 2.7 in
|
|
Lens Size:
|
6mm
|
|
Lens Type:
|
Fixed Lens
|
|
Minimum Illumination (B/W):
|
0.001 Lux at F1.2 AGC ON
|
|
Minimum Illumination (Color):
|
0.005 Lux at F1.2 AGC ON
|
|
Power Supply:
|
PoE (IEEE 802.3af)
12 VDC
|
|
Protection Code:
|
IP67
IK10
|
|
Resolution:
|
4MP
|
|
SD Card Support:
|
256GB
|
|
Sensor Type:
|
Progressive CMOS
|
|
Shutter Speed:
|
1s to 1/100,000s
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
WDR 120dB
|
