Description

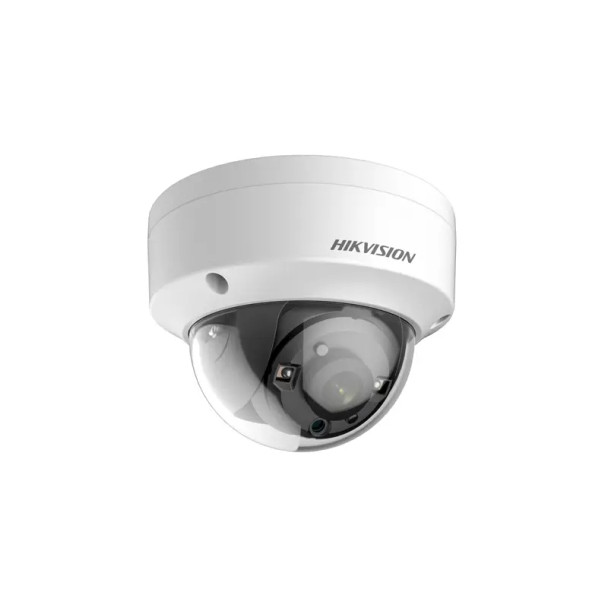

Hikvision DS-2CE57U1T-VPITF 2.8MM TurboHD IR 8MP Outdoor Dome Analog Camera, 2.8mm Lens, White
The Hikvision DS-2CE57U1T-VPITF 8 MP Outdoor Dome Camera provides high definition analog output. TurboHD means that the analog signal can be sent over existing coaxial cable, eliminating the need to run new cables for high definition video.
EXIR 2.0 is Hikvision’s proprietary IR extended range technology, which has a range of 100 feet (30 meters).
The camera is equipped with 2.8 mm and 6 mm fixed lenses. DWDR (Digital Wide Dynamic Range) ensures that ideal images are captured regardless of the lighting conditions.
Key Features:
- 8 MP High Performance CMOS
- Up to 3840 x 2160 Resolution
- 2.8 mm and 6 mm Fixed Lens Options
- DWDR, 3D DNR
- EXIR 2.0 up to 100 ft (30 m) IR Range
- Multiprotocol Output: TVI/AHD/CVI/CVBS
- Up-the-Coax (HIKVISION-C)
- IP67, IK10 Protection
Downloads
User Manual
Hikvision-DS-2CE57U1T-VPITF-2.8MM-User-Manual-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alternative SKUs:
|
DS-2CE57U1T-VPITF
HX-OD57U1TV2
|
|
Aperture:
|
F1.2
|
|
Camera Style:
|
Dome
|
|
Certifications:
|
CE
FCC
cULus
|
|
Color:
|
White
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|

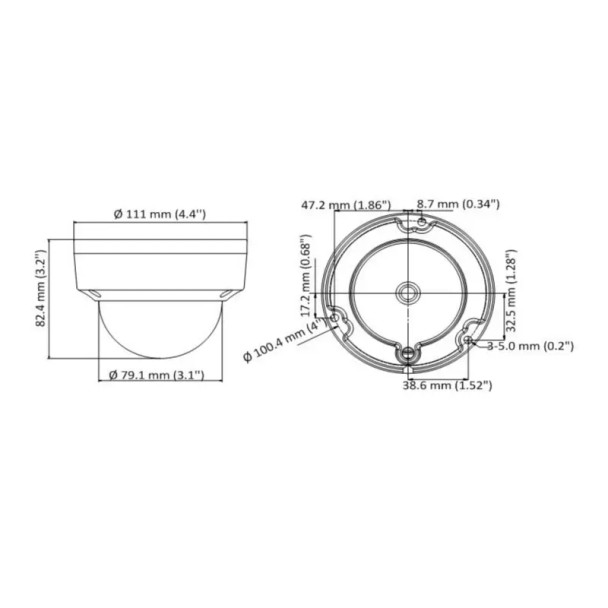

Dimensions:
|
111 x 82.4 mm (4.4 x 3.2 in)
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
102.2
|
|
HD CCTV Type:
|
HD-TVI
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Highlight Compensation (HLC)
|
|
Image Settings:
|
Brigthness
Sharpness
Mirror
|
|
Lens Mount:
|
M16
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
5.3 Watts
|
|
Max. FPS and Resolution:
|
15fps at 3840 x 2160
|
|
Minimum Illumination (B/W):
|
0 lux with IR illumination on
|
|
Minimum Illumination (Color):
|
0.01 Lux at F1.2 AGC ON
|
|
Night Vision Range (ft):
|
100
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Power Supply:
|
12 VDC
|
|
Product Series:
|
Hikvision Turbo HD Series
|
|
Protection Code:
|
IP67
IK10
|
|
Resolution:
|
8MP (4K)
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/15-1/50000s
|
|
Technology:
|
HD CCTV
|
|
Wide Dynamic Range (WDR):
|
Digital WDR (D-WDR)
|
