Hikvision DS-2CE72DFT-F TurboHD ColorVu 2MP Outdoor White-Light Turret Analog Camera, 3.6mm Fixed Lens, White
Hikvision’s DS-2CE72DFT-Fxx ColorVu Fixed Bullet Outdoor Camera features an ƒ/1.0 lens aperture for maximum light gathering capability to provide full color imaging in extremely dark settings.
The camera also contains a powerful auxiliary white light source to enhance colors and illuminate the scene when it approaches total darkness or on a defined schedule.
The 2.8 mm (-F28 model) and 3.6 mm or 6 mm (-F model) fixed lens options are optimized for viewing angles that fit any situation. 130 dB True WDR (Wide Dynamic Range) ensures that ideal images are captured regardless of the lighting conditions.
Key Features:
- 24/7 Full Time Color
- 2 MP High Performance CMOS
- Up to 1920 x 1080 Resolution
- 2.8 Fixed Lens (-F28 Model)
- 3.6 mm and 6 mm Fixed Lens Options (-F Model)
- 3D DNR, OSD Menu
- Up to 65 ft (20 m) White Light Range
- 130 dB True WDR
- Multiprotocol Output: TVI/AHD/CVI/CVBS
- Up-the-Coax (HIKVISION-C)
- IP67 Protection
Downloads
User Manual
Hikvision-DS-2CE72DFT-F-User-Manual-A1
Datasheet
Hikvision-DS-2CE72DFT-F-Datasheet-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alternative SKUs:
|
DS-2CE72DFT-F(3.6MM)
HX-TR72DFTF3
|
|
Analytics:
|
Motion Detection
|
|
Aperture:
|
F1.0
|
|
Camera Style:
|
Turret
|
|
Certifications:
|
CE
cULus
FCC
|
|
Color:
|
White
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Day (Color)
|
|
Dimensions:
|

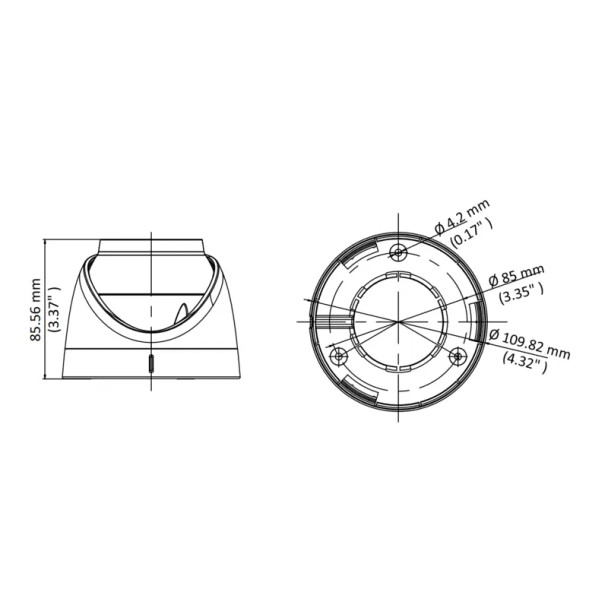

109.82 x 85.56 mm (4.32 x 3.37 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Diagonal):
|
98
|
|
Field of View (Horizontal):
|
83
|
|
Field of View (Vertical):
|
44.4
|
|
HD CCTV Type:
|
HD-TVI
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Highlight Compensation (HLC)
|
|
Image Settings:
|
Brigthness
Mirror
Sharpness
|
|
Languages:
|
English
|
|
Lens Mount:
|
M16
|
|
Lens Size:
|
3.6mm
|
|
Lens Type:
|
Fixed Lens
|
|
Material:
|
Metal
Plastic
|
|
Max Power Consumption:
|
3 Watts
|
|
Max. FPS and Resolution:
|
30fps at 1080P
|
|
Minimum Illumination (B/W):
|
0 Lux with white light
|
|
Minimum Illumination (Color):
|
0.0005 Lux at F1.0 AGC ON
|
|
Night Vision Range (ft):
|
65
|
|
Night Vision Type:
|
Night Vision (Color - White Light)
|
|
Noise Reduction:
|
3D DNR
|
|
Power Supply:
|
12 VDC
|
|
Privacy Mask:
|
4 area
|
|
Product Series:
|
Hikvision ColorVu Series
Hikvision Turbo HD Series
|
|
Protection Code:
|
IP67
|
|
Resolution:
|
2MP
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/30-1/50000s
|
|
Special Technologies:
|
Hikvision ColorVu
|
|
Specialized Camera Feature:
|
Strobe Light
|
|
Technology:
|
HD CCTV
|
|
Wide Dynamic Range (WDR):
|
WDR 130dB
|
