Description
Hikvision DS-2CE76H0T-ITMF(2.8MM) TurboHD 5MP Outdoor IR Turret Analog Camera, 2.8mm Lens, White
The Hikvision DS-2CE76H0T-ITMF 5 MP Outdoor Turret Camera provides high definition analog output with a resolution of up to 2560 x 1944 pixels. TurboHD means that the analog signal can be sent over existing coaxial cable, eliminating the need to run new cables for high definition video.
EXIR 2.0 is Hikvision’s proprietary IR extended range technology, which has a range of 98 feet (30 meters).
The 2.8 mm, 3.6 mm, and 6 mm fixed lens options are optimized for viewing angles that fit any situation. DWDR (Digital Wide Dynamic Range) ensures that ideal images are captured regardless of the lighting conditions. The camera also supports TVI, AHD, CVI, and CVBS video signals, and is water and dust-resistant (IP67 rated).
Key Features:
- 5 MP, 2560 x 1944 Resolution
- 2.8 mm, 3.6 mm, or 6 mm Lens
- Smart IR with a 98 ft (30 m) IR Range
- 4-in-1 Video Output (Switchable TVI/AHD/CVI/VBS)
- IP67
Replacement of:
DS-2CE56H0T-ITMF 2.8MM
Downloads
User Manual
Hikvision-DS-2CE76H0T-ITMF(2.8MM)-User-Manual-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alternative SKUs:
|
HX-TR76H0TM2
DS-2CE76H0T-ITMF
|
|
Aperture:
|
F1.2
|
|
Camera Style:
|
Turret
|
|
Certifications:
|
CE
FCC
|
|
Color:
|
White
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|

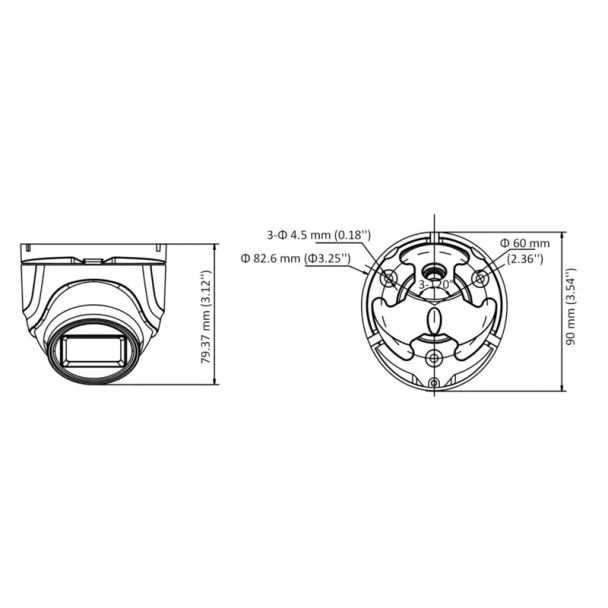

Dimensions:
|
82.6 x 90 x 79.37 mm (3.25 x 3.54 x 3.12 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Diagonal):
|
110
|
|
Field of View (Horizontal):
|
85
|
|
Field of View (Vertical):
|
63
|
|
HD CCTV Type:
|
HD-TVI
|
|
Image Enhancements:
|
Backlight Compensation (BLC)
Highlight Compensation (HLC)
Auto Gain Control (AGC)
|
|
Lens Mount:
|
M12
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
4.3 Watts
|
|
Max. FPS and Resolution:
|
20fps at 2560 x 1944
|
|
Minimum Illumination (B/W):
|
0 lux with IR illumination on
|
|
Minimum Illumination (Color):
|
0.01 Lux at F1.2 AGC ON
|
|
Night Vision Range (ft):
|
98
|
|
Night Vision Type:
|
Night Vision (IR)
Smart IR
|
|
Noise Reduction:
|
2D DNR
|
|
Power Supply:
|
12 VDC
|
|
Product Series:
|
Hikvision Turbo HD Series
|
|
Protection Code:
|
IP67
|
|
Resolution:
|
5MP (3K)
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/25-1/50000s
1/30-1/50000s
|
|
Technology:
|
HD CCTV
|
|
Wide Dynamic Range (WDR):
|
Digital WDR (D-WDR)
|
