Description

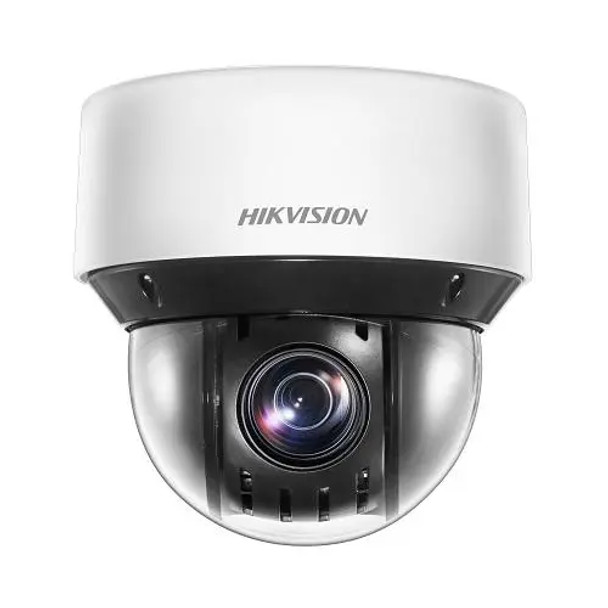

Hikvision DS-2DE4A425IWG-E Value Series 4MP IR Outdoor PTZ IP Security Camera, 25x Optical Zoom and Smart Tracking, 4.8~120mm Lens, White
Hikvision DS-2DE4A425IWG-E 4 MP Network IR PTZ Camera adopts 1/2.8" progressive scan CMOS chip. With the 25 × optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, forests, roads, railways, airports, ports, squares, parks, scenic spots, stations and large venues, etc.
Key Features:
- High quality imaging with 4 MP resolution, up to 30 fps
- Excellent low-light performance via powered-by DarkFighter technology
- Clear imaging against strong back lighting due to 120 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- 25 × optical zoom allows for closer viewing of subjects in expansive areas
- Up to 50 m IR range ensures safety at night
- Water and dust resistant (IP66)
- Focuses on human and vehicle targets classification based on deep learning
Replacement of:
DS-2DE4A225IW-DE
Downloads
User Manual
Hikvision-DS-2DE4A425IWG-E-User-Manual-A1
Datasheet
Hikvision-DS-2DE4A425IWG-E-Datasheet-A1
Quick Start Guide
Hikvision-DS-2DE4A425IWG-E-Quick-Start-Guide-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
2 Channel
|
|
Alarm Output:
|
2 Channel
|
|
Alternative SKUs:
|
HX-NOD4A425A
|
|
Analytics:
|
Motion Detection
Tampering
Line Crossing
Intrusion Detection
|
|
Aperture:
|
F1.6
|
|
Audio Compression:
|
G.711alaw
G.711ulaw
G.722.1
G.726
MP2L2
PCM
AAC-LC
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Camera Style:
|
PTZ
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
ISAPI
SDK
ISUP
|
|
Compression:
|
H.265
H.265 Plus
H.264
H.264 Plus
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Detect (ft):
|
7217.8
|
|
Digital Zoom:
|
16
|
|

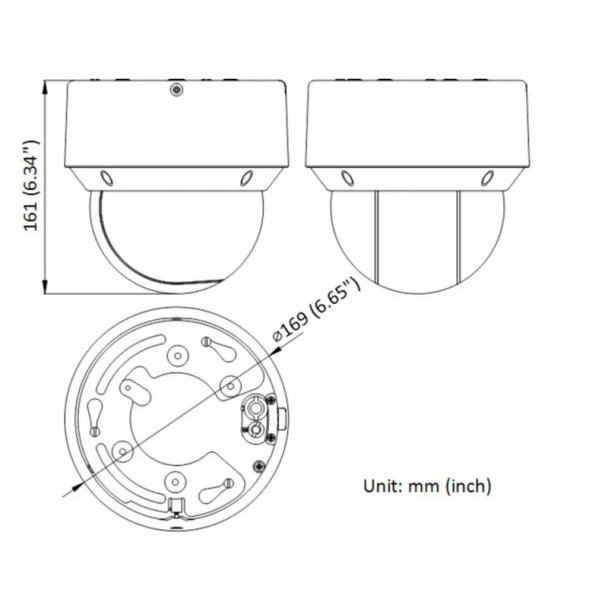

Dimensions:
|
169 x 161 mm (6.65 x 6.34 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Diagonal):
|
60.5
3
|
|
Field of View (Horizontal):
|
53.3
2.6
|
|
Field of View (Vertical):
|
30.6
1.5
|
|
Identify (ft):
|
721.8
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Highlight Compensation (HLC)
Digital Defog
|
|
Image Settings:
|
Brigthness
Contrast
Saturation
Sharpness
Privacy Mask
|
|
Lens Size:
|
4.8~120mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Max Power Consumption:
|
24 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2560 x 1440
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (B/W):
|
0 lux with IR illumination on
|
|
Minimum Illumination (Color):
|
0.005 Lux at F1.6 AGC On
|
|
Network Interface:
|
1x RJ-45 10M/100M self-adaptive Ethernet interface
|
|
Night Vision Range (ft):
|
164
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Observe (ft):
|
2864.2
|
|
Optical Zoom:
|
25x Optical Zoom
|
|
PTZ Control:
|
|
|
Power Supply:
|
12 VDC
PoE+ (IEEE802.3at)
|
|
Privacy Mask:
|
24 area
|
|
Product Series:
|
Hikvision Value Series
|
|
Protection Code:
|
IP66
|
|
Recognize (ft):
|
1443.6
|
|
Region of Interest (ROI):
|
8
|
|
Resolution:
|
4MP
|
|
Rotation Angle:
|
360
|
|
S/N Ratio:
|
>52 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1-1/30000s
|
|
Surge Protection:
|
TVS 6000V
|
|
Technology:
|
Network (IP)
|
|
Tilt Degree:
|
90
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
