Description

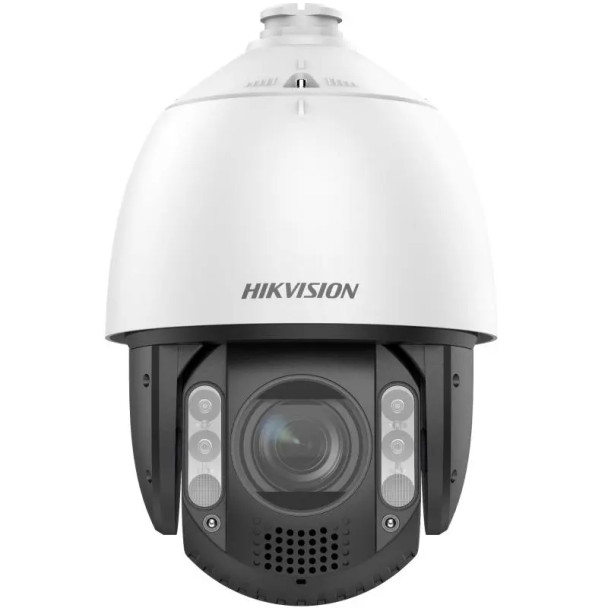

Hikvision DS-2DE7A220MCG-EB 2MP Outdoor PTZ IP Security Camera with 6.7-134mm Lens, 20x Optical Zoom and Built-In IR and White Light
The Hikvision DS-2DE7A220MCG-EB is a professional-grade 2MP ColorVu PTZ network speed dome camera designed for expansive surveillance applications. Featuring a 1/1.8-inch progressive scan CMOS sensor, this camera delivers exceptional image quality in both daylight and complete darkness with 24/7 colorful imaging capability.
Equipped with a powerful 20x optical zoom lens (6.7-134mm) and 16x digital zoom, the camera provides detailed close-up views across wide areas such as parking lots, highways, airports, and large venues. The hybrid illumination system combines IR LEDs with up to 150m range and white light LEDs reaching 100m, ensuring clear visibility in any lighting condition.
Powered by Hikvision's AcuSense deep learning technology, the DS-2DE7A220MCG-EB intelligently classifies human and vehicle targets, dramatically reducing false alarms from animals, leaves, or other non-relevant motion. The camera also supports face capture functionality, detecting up to 5 faces simultaneously for enhanced security monitoring.
Built to withstand harsh outdoor environments, this PTZ camera features IP67 weatherproof and IK10 vandal-resistant ratings, along with TVS 6000V lightning protection. True WDR at 120dB ensures balanced exposure in challenging lighting scenarios with strong backlighting or high contrast scenes.
Key Features:
- 2MP (1920x1080) resolution with 1/1.8" progressive scan CMOS sensor; delivers sharp detail for identification and evidence capture
- 20x optical zoom (6.7-134mm motorized lens) with F1.2 aperture; enables close-up monitoring of distant subjects across large areas
- ColorVu technology with hybrid IR (150m) and white light (100m) illumination; provides 24/7 full-color imaging even in total darkness
- AcuSense deep learning for human/vehicle classification; reduces false alarms by up to 90% compared to traditional motion detection
- True WDR 120dB with 3D DNR; maintains image clarity in high-contrast scenes and reduces noise in low-light conditions
- IP67 weatherproof and IK10 vandal-resistant with 6000V surge protection; ensures reliable operation in harsh outdoor environments
- H.265+ compression with up to 512GB SD card support; reduces bandwidth and storage requirements by up to 80%
- Audio visual alarm with white light flashing and audible warning; enables active deterrence for proactive security
Downloads
Additional Information
|
Aperture:
|
F1.2
|
|
Camera Style:
|
PTZ
|
|
Compression:
|
H.265+
H.265
H.264+
H.264
MJPEG
|
|
Day/Night:
|
IR cut filter
|
|
Dimensions:
|
Ø8.66" x 14.07"
|
|
Lens Type:
|
Motorized Lens
|
|
Power Supply:
|
24 VAC
Hi-PoE
|
|
Protection Code:
|
IP67
IK10
|
|
Resolution:
|
2MP
|
|
SD Card Support:
|
512GB
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
Progressive CMOS
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
