Description

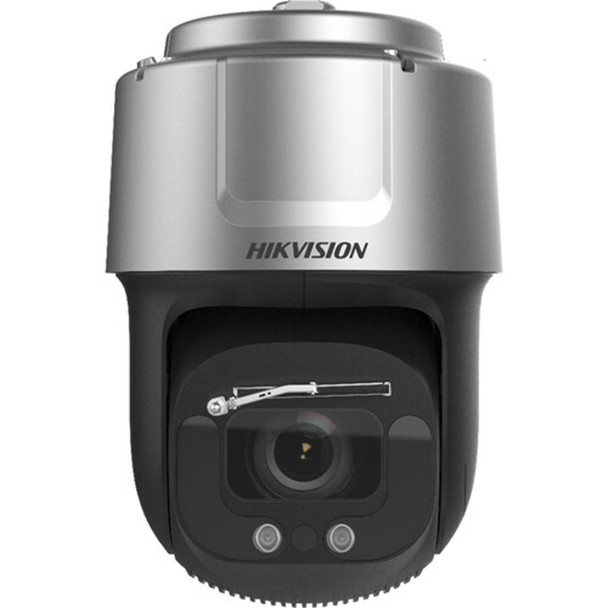

Hikvision DS-2DF9C245IHS-DLW 2MP 45x Night Vision Outdoor PTZ IP Security Camera
The Hikvision DS-2DF9C245IHS-DLW (T2) 2 MP 45x Outdoor IP IR PTZ Camera belongs to the DarkFighterX camera family. With the patented dual-sensor design, it is able to process color and brightness independently and outputs one full-color image.
This camera can be widely used for wide ranges of high- definition such as rivers, forests, roads, railways, airports, ports, squares, parks, scenic spots, stations, large venues, etc.
Key Features:
- Dual-Sensor, 1/1.8" Progressive Scan CMOS
- Full-Color Image Output
- Minimum Illumination: Color: 0.0005 Lux @ (f/1.6, AGC on) B/W: 0.0001 Lux @ (f/1.6, AGC on) 0 Lux with IR
- Up to 1920 x 1080 Resolution
- H.265+/H.265 Video Compression
- 45x Optical Zoom, 16x Digital Zoom
- 550 yd (500 m) IR Range, Smart IR
- Rain-Sensing Auto Wiper
- 140 dB WDR, 3D DNR, HLC, BLC, EIS, Optical Defog
- H.265+/H.265 Video Compression
- Rapid Focus
- Deep Learning-Based Target Classification for Auto-Tracking 2.0 and Perimeter Protection
Replacement of:
DS-2DF8250I5X-AELW
Downloads
Additional Information
|
Alarm Input:
|
7 Channel
|
|
Alarm Output:
|
2 Channel
|
|
Analytics:
|
Perimeter Protection
|
|
Aperture:
|
F1.6
F4.4
|
|
Audio Compression:
|
G.711alaw
G.711ulaw
G.722.1
G.726
PCM
MP2L2
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Built-in Features:
|
Built-in Wiper
|
|
Camera Style:
|
PTZ
|
|
Color:
|
Gray
|
|
Compatible Integration (API):
|
ISAPI
Hikvision SDK
ONVIF Profile S
ONVIF Profile G
ONVIF Profile T
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Day/Night:
|
Electronic ICR
|
|
Digital Zoom:
|
16
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
58.9
1.7
|
|
Languages:
|
English
Turkish
Spanish
Dutch
Romanian
French
|
|
Lens Size:
|
5.9~265mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Manufacturer Website:
|
https://us.hikvision.com/en
|
|
Max Power Consumption:
|
90 Watts
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (B/W):
|
0.0001 Lux at F1.6 AGC on
|
|
Minimum Illumination (Color):
|
0.0005 Lux at F1.6 AGC on
|
|
Night Vision Range (ft):
|
1640
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Optical Zoom:
|
45x Optical Zoom
|
|
Power Supply:
|
36 VDC
|
|
Protection Code:
|
IP67
|
|
Resolution:
|
2MP
|
|
S/N Ratio:
|
>55 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Serial Interface:
|
1x RS485
|
|
Shutter Speed:
|
1-1/30000s
|
|
Special Technologies:
|
Hikvision DarkFighterX
|
|
Surge Protection:
|
6 kV
|
|
Technology:
|
Network (IP)
|
|
Video Output:
|
1x BNC
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Web Browser:
|
Internet Explorer 8 or above
Chrome 57.0 or above
Firefox 52.0 or above
Safari 11 or above
|
|
Wide Dynamic Range (WDR):
|
WDR 140dB
|
