Description

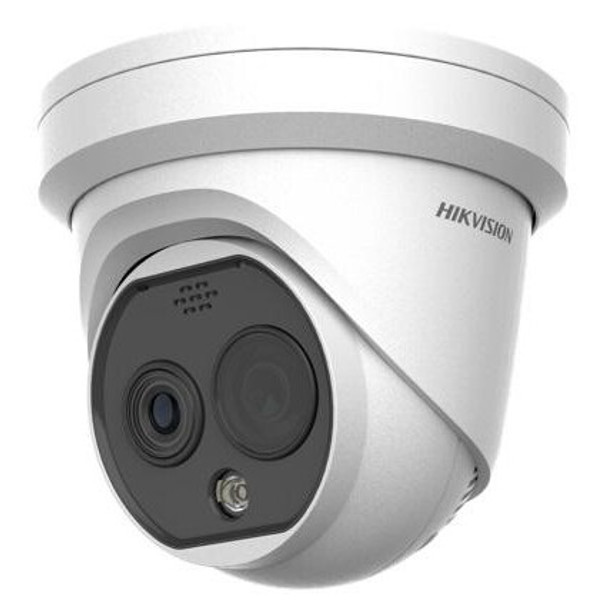

Hikvision DS-2TD1228T-2/QA HeatPro Series Bi-spectrum Thermography Outdoor Turret IP Security Camera with 2mm Lens, White
Hikvision DS-2TD1228T Thermal and Optical Bullet Cameras are equipped with highly sensitive thermal and optical sensors and a graphical processing unit to run the video content analysis (VCA) algorithms developed by Hikvision’s deep learning technology.
Hikvision DS-2TD1228T-2/QA Bi-spectrum Thermography Network Turret Camera can be applied to warehouses, construction sites, waste incineration plants, manufacturing workshops, etc. The accurate temperature measurement device sends temperature exception alarms for loss prevention.
Key Features:
- v 256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0)256x192 Thermal Resolution
- Video content analysis: vehicle/human classification
- Temperature exception alarm for fire prevention
- High accuracy temperature exception alarm, -20°C to 550°C (-4°F to 1022°F), ± 2°C (± 3.6°F)
- PoE (802.3af), 12 VDC, Maximum 6.5. W
- Smoking detection Algorithm
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
- High quality detector with 10 years guarantee
Downloads
Datasheet
Hikvision-DS-2TD1228T-2-QA-Datasheet-A1
User Manual
Hikvision-DS-2TD1228T-2-QA-User-Manual-A1
Quick Start Guide
Hikvision-DS-2TD1228T-2-QA-Quick-Start-Guide-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Aperture:
|
F2.3
|
|
Audio Compression:
|
G.711alaw
G.711ulaw
G.722.1
G.726
MP2L2
PCM
|
|
Audio Input:
|
1x 3.5mm
|
|
Camera Style:
|
Turret
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
Hikvision SDK
ISAPI
ONVIF Profile G
ONVIF Profile S
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Connection Type:
|
Wired
|
|
Detect (ft):
|
288
879
|
|
Dimensions:
|
138.3 x 138.3 x 123.1 mm (5.45 x 5.45 x 4.85 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
117.8
|
|
Identify (ft):
|
111
36
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
|
|
Lens Size:
|
2.2mm
|
|
Lens Type:
|
Fixed Lens
|
|
Manufacturer Website:
|
https://us.hikvision.com/en
|
|
Max Power Consumption:
|
6.5 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2688 x 1520
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (B/W):
|
0 lux with IR illumination on
|
|
Minimum Illumination (Color):
|
0.0176 Lux
|
|
Network Interface:
|
1x RJ-45 10M/100M self-adaptive Ethernet interface
|
|
Night Vision Range (ft):
|
49
98
|
|
Night Vision Type:
|
Night Vision (Color - White Light)
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Pixel Size (μm):
|
12
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
Hikvision HeatPro Series
|
|
Protection Code:
|
IP66
|
|
Recognize (ft):
|
219
72
|
|
Remote Users:
|
Up to 32
|
|
Resolution:
|
4MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.7"
|
|
Sensor Type:
|
CMOS
|
|
Serial Interface:
|
1x RS485
|
|
Shutter Speed:
|
1-1/100000s
|
|
Specialized Camera Feature:
|
Dual Light (Infrared and Whitelight)
Thermal
|
|
Spectral Range (μm):
|
8 to 14
|
|
Surge Protection:
|
TVS 4000V
|
|
Technology:
|
Network (IP)
|
|
Temperature Accuracy:
|
Max. (± 2°C - ± 2%)
|
|
Temperature Range:
|
-20°C to 550°C (-4°F to 1022°F)
|
|
Thermal Aperture:
|
F1.0
|
|
Thermal Horizontal FOV:
|
90
|
|
Thermal Image Sensor:
|
Uncooled Focal Plane Array
|
|
Thermal Lens Size:
|
2.1mm
|
|
Thermal Resolution:
|
256 x 192
|
|
Thermal Sensitivity:
|
NETD <40 mK
|
|
Thermal Zoom:
|
4x thermal zoom
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
