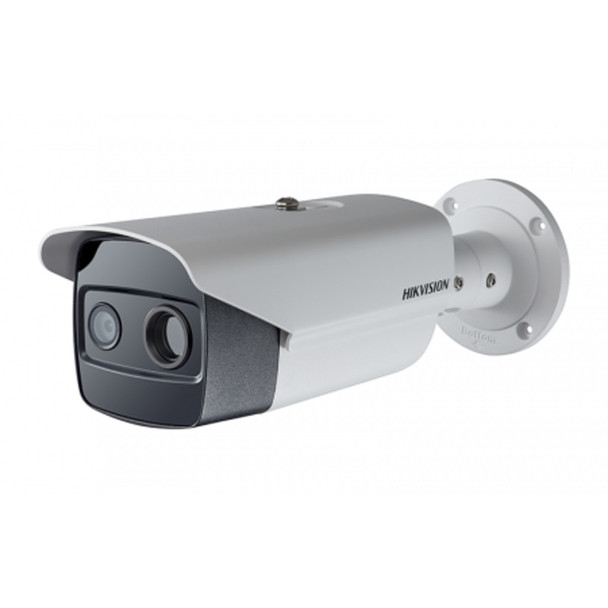

Hikvision DS-2TD2615-10 Thermal and Optical Bi-Spectrum Bullet IP Security Camera
The Hikvision DS-2TD2615-xx Thermal and Optical Bi-Spectrum Bullet IP Security Camera uses a vanadium oxide uncooled focal plane sensor to enhance thermal image quality. The high sensitivity sensor has a 160 x 120 thermal/1080p optical resolution and features contrast adjustment for optimized images.
Key Features:
- 160 x 120 Thermal/1080p Optical Resolution (320 x 240 Output Image Resolution)
- 7 mm and 10 mm Lens Options
- Smart Features: - Line Crossing, Intrusion, Region Entrance/Exit - Temperature Exception - Advanced Fire Detection
- H.265+/H.264+ (Baseline/Main/High Profile), H.265/H.264/MJPEG
- 24 VAC, 10 W (20 W with De-Icing Heater)
Related Products:
DS-2TD2136-7/10/15/25/35 Thermal Bullet IP Security Camera, DS-2TD2235D-25/50 Thermal Bullet IP Security Camera, DS-2TD4136-25/50 Thermal & Optical Bi-Spectrum Speed Dome IP Security Camera
Downloads
Datasheet
Hikvision-DS-2TD2615-10-Datasheet-A1
Firmware
Hikvision-DS-2TD2615-10-Firmware-A1
Additional Information
|
Analytics:
|
Line Crossing
Fire Detection
|
|
Audio Compression:
|
G.711u
G.711a
G.722.1
G.726
PCM
|
|
Camera Style:
|
Bullet
|
|
Compatible Integration (API):
|
Hikvision SDK
ISAPI
Open-ended API
|
|
Compression:
|
H.265 Plus
H.265
H.264 Plus
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Environmental:
|
Outdoor
|
|
Languages:
|
English
|
|
Lens Size:
|
8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Manufacturer Website:
|
https://us.hikvision.com/en
|
|
Max Power Consumption:
|
10 Watts
|
|
Max. Storage Capacity:
|
128 GB
|
|
Minimum Illumination (B/W):
|
0.0002 Lux at F1.5 AGC ON
|
|
Minimum Illumination (Color):
|
0.002 Lux at F1.5 AGC ON
|
|
Night Vision Range (ft):
|
131
|
|
Pixel Size (μm):
|
25
|
|
Power Supply:
|
24 VAC
12 VDC
PoE+ (IEEE802.3at Class 4)
|
|
Protection Code:
|
IP66
|
|
Resolution:
|
2MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1-1/100000s
|
|
Specialized Camera Feature:
|
Thermal
|
|
Spectral Range (μm):
|
8 to 14
|
|
Surge Protection:
|
TVS 6000V
|
|
Technology:
|
Network (IP)
|
|
Thermal Image Sensor:
|
Uncooled Focal Plane Array
|
|
Thermal Lens Size:
|
10mm
|
|
Thermal Resolution:
|
160 x 120
|
|
Thermal Sensitivity:
|
NETD <50 mK
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
Digital WDR (D-WDR)
|
