- Hikvision DS-2TD4136-25 Thermal & Optical Bi-Spectrum Speed Dome IP Security Camera - 25mm Thermal Lens
Hikvision DS-2TD4136-25 Thermal & Optical Bi-Spectrum Speed Dome IP Security Camera - 25mm Thermal Lens
✅ Help me pick a security camera
- Compression : H.264, MJPEG, MPEG4,
- Lens Type : Fixed Lens
- Lens Size : 25mm Lens
- Sensor Type : Thermal Sensor
- Sensor Size : 1/1.9" Sensor
- Protection Code : IP66
- Color : Black
- Environmental : Outdoor
- Sensor Size : 1/1.9"
Description

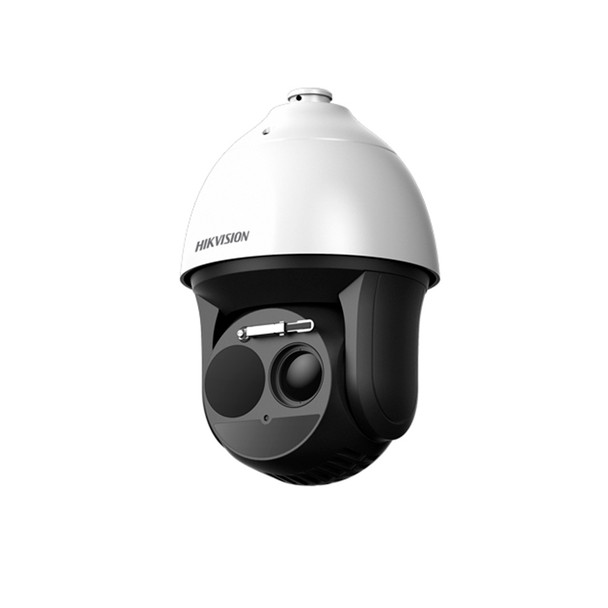

Hikvision DS-2TD4136-25 Thermal & Optical Bi-Spectrum Speed Dome IP Security Camera
The Hikvision DS-2TD4136-25, and DS-2TD4136-50 Thermal & Optical Bi-spectrum Network Speed Dome use a vanadium oxide uncooled focal plane sensor to enhance thermal image quality.
The high sensitivity sensor has 384 x 288 resolution and features contrast adjustment for optimized images. AGC (Automatic Gain Control), 3D DNR (Dynamic Noise Reduction), and Dynamic Detail Enhancement further enhance image quality.
This series of cameras also features advanced fire detection and a wide range of Smart functions, including temperature exception, line crossing, intrusion, and region entrance and exit, benefitting users with great improvements in security efficiency and, more importantly, with key events and objects being recorded for further forensic needs.
The cameras can be outfitted with 25 mm or 50 mm lens to cover a variety of needs.
Key features of Hikvision DS-2TD4136-25
- 384 x 288 Resolution
- Vanadium Oxide Uncooled Focal Plane Arrays
- 25 mm, 50 mm Lens Options
- NETD <40 mk
- Adaptive AGC, 3D DNR
- Dynamic Detail Enhancement
- Visible Imager: 2 MP 1/1.9" CMOS
- 36x Optical Zoom, 16x Digital Zoom
- Smart Features:
- Line Crossing, Intrusion, Region Entrance/Exit
- Temperature Exception
- Advanced Fire Detection
- Smart Tracking
- Temperature Range: -4° F to 1,022° F (-20° C to 550° C)
- Temperature Accuracy:
- Maximum (± 8° C, ± 2%)
- 15 Pseudo Colors Adjustable
- IP66 Protection
- 24 VAC, 60 W
Downloads
Compatible products
Additional Information
Camera Style:
|
PTZ
|
Color:
|
Black
|
Compression:
|
H.264
MJPEG
MPEG4
|
Durability:
|
Weatherproof
|
Environmental:
|
Outdoor
|
Key Features:
|
ONVIF
|
Lens Size:
|
25mm
|
Lens Type:
|
Fixed Lens
|
Night Vision Range (ft):
|
655
|
Night Vision Type:
|
Night Vision (IR)
|
Optical Zoom:
|
36x Optical Zoom
|
Protection Code:
|
IP66
|
Resolution:
|
384 x 288
|
SD Card Support:
|
SD Card Supported
|
Sensor Size:
|
1/1.9"
|
Sensor Type:
|
Thermal Sensor
|
Specialized Camera Feature:
|
Thermal
|
Technology:
|
Network (IP)
|
Warranty:
|
5-year Manufacturer Warranty
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
