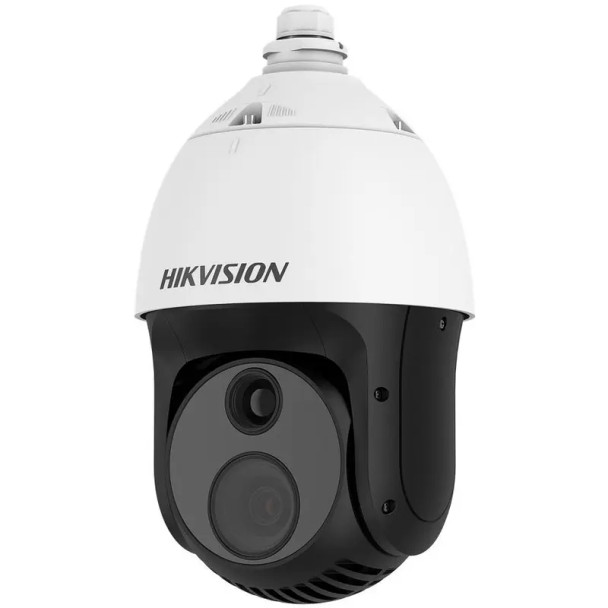

Hikvision DS-2TD4228T-10/W 4MP Thermographic Thermal and Optical Bi-Spectrum Outdoor PTZ IP Security Camera with 10mm Lens, White
Hikvision DS-2TD4228T-10/W Thermographic Thermal & Optical Bi-spectrum Network Speed Dome is applied to manufacture process supervision of pyrophoric materials in factories, electric substation, and hydropower station. The accurate temperature measurement system sends you alarms to protect you from property loss.
Key Features:
- Behavior analysis function, based on deep learning algorithm: line crossing, intrusion, region entrance and exit
- Temperature exception alarm for fire prevention
- Fire detection algorithm
- 256 × 192 (the resolution of output image is 1280 × 720) resolution 12 μm, VOx UFPA, NETD ≤ 35 mK (25°C, F# = 1.0)
- Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR
- High quality detector with 10 years guarantee
- Smart tracking: Panorama tracking, Event tracking and Multi-scene patrol tracking
- Smart tracking linkage: thermal view and optical view
Downloads
Datasheet
Hikvision-DS-2TD4228T-10-W-Datasheet-A1
User Manual
Hikvision-DS-2TD4228T-10-W-User-Manual-A1
Quick Start Guide
Hikvision-DS-2TD4228T-10-W-Quick-Start-Guide-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Analytics:
|
Fire Detection
Line Crossing
|
|
Aperture:
|
F1.2
F4.4
|
|
Audio Compression:
|
G.711u
G.711a
G.722.1
MP2L2
G.726
PCM
|
|
Audio Input:
|
1x 3.5mm
|
|
Audio Output:
|
1x Channel
|
|
Camera Style:
|
PTZ
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ISAPI
Hikvision SDK
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
|
|
Compression:
|
H.265
H.265 Plus
H.264
H.264 Plus
MJPEG
|
|
Connection Type:
|
Wired
|
|
Detect (ft):
|
4192.42
1364.17
|
|
Digital Zoom:
|
16
|
|
Dimensions:
|
305 x 185 x 163 mm (12.01 x 7.28 x 6.42 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
58.4
33.8
|
|
Identify (ft):
|
524.93
170.60
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
|
|
Languages:
|
English
Russian
Estonian
Bulgarian
Hungarian
Greek
German
Italian
Czech
Slovak
French
Polish
Dutch
Portuguese
Spanish
Romanian
Danish
Swedish
Norwegian
Finnish
Croatian
Slovenian
Serbian
Turkish
Korean
Traditional Chinese
Thai
Vietnamese
Japanese
Latvian
Lithuanian
Portuguese (Brazil)
|
|
Lens Size:
|
4.8~153mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Manufacturer Website:
|
https://us.hikvision.com/en
|
|
Max Power Consumption:
|
30 Watts
|
|
Max. FPS and Resolution:
|
30fps at 1920 x 1080
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (B/W):
|
0.01 Lux
|
|
Minimum Illumination (Color):
|
0.05 Lux
|
|
Network Interface:
|
1x RJ-45 10M/100M self-adaptive Ethernet interface
|
|
Night Vision Range (ft):
|
328
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Pixel Size (μm):
|
12
|
|
Power Supply:
|
24 VAC
48 VDC
|
|
Protection Code:
|
IP66
|
|
Recognize (ft):
|
1043.31
341.21
|
|
Remote Users:
|
Up to 32
|
|
Resolution:
|
4MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Serial Interface:
|
1x RS485
|
|
Shutter Speed:
|
1-1/100000s
|
|
Specialized Camera Feature:
|
Thermal
Anti-corrosion
|
|
Spectral Range (μm):
|
8 to 14
|
|
Surge Protection:
|
TVS 6000V
|
|
Technology:
|
Network (IP)
|
|
Temperature Accuracy:
|
Max. (± 2°C - ± 2%)
|
|
Temperature Range:
|
-20°C to 550°C (-4°F to 1022°F)
|
|
Thermal Aperture:
|
F1.0
|
|
Thermal Horizontal FOV:
|
18
|
|
Thermal Image Sensor:
|
Vanadium Oxide Uncooled Focal Plane Arrays
|
|
Thermal Lens Size:
|
10mm
|
|
Thermal Resolution:
|
256 x 192
|
|
Thermal Sensitivity:
|
NETD <35 mK
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
