Hikvision DS-2TP21B-6AVF/W Temperature Screening Thermographic Handheld Camera

Brand: Hikvision
Part Number: DS-2TP21B-6AVF/W
Write a Review
  • Hikvision DS-2TP21B-6AVF/W Temperature Screening Thermographic Handheld Camera
  • Hikvision DS-2TP21B-6AVF/W Temperature Screening Thermographic Handheld Camera
  • Hikvision DS-2TP21B-6AVF/W Temperature Screening Thermographic Handheld Camera
  • Hikvision DS-2TP21B-6AVF/W Temperature Screening Thermographic Handheld Camera
$2,999.00

Help me pick a security camera

OR
Free shipping over $300 Free Shipping
Technical Support Technical Support
5 Year Warranty 5 Year Warranty
  • Screen Size : 3.5"

Description

Hikvision DS-2TP21B-6AVF/W Temperature Screening Thermographic Handheld Camera

The Hikvision DS-2TP21B-6AVF/W Thermographic handheld camera is specially designed for temperature measurement applications, where heat leaks and other abnormal changes in temperature must be identified.

It is equipped with a 160×120 resolution thermal detector and 8 MP optical resolution. It combines thermal and optical images into a fusion display.

Key Features:

  • Resolution: 160 x 120 Thermal, 8 MP Optical
  • Display Fusion of Thermal and Optical Views
  • 640 x 480 Resolution 3.5" LCD Touch Display
  • Supports Live View on PC or Mobile Device
  • Supports Audio Intercom
  • Supports Color Highlight Alarm and Audio Alarm
  • Up to five hours continuous running in 25℃
  • Temperature measurement range: 30°C to 45°C
  • Temperature measurement accuracy: ±0.5°C (Without Black Body); ±0.3°C (With Black Body)
Pack includes: (Subject To Change)
  • User manual
  • 5 V @ 2.0 A power supply
  • Power plug adapters (6 types)
  • USB-C cable (USB-C to USB-A)
  • Wrist strap (pre-installed)
  • 3.7 V, 5000 mAh li-ion battery (pre-installed)
  • 16 GB microSDHC card (pre-installed)
  • Protective hard case
All Security BrandsClose

Specifications

Thermal
  • Image Sensor VOx Uncooled Focal Plane Arrays
  • Resolution 160x120
  • Pixel Interval 17μm
  • Response Waveband 8μm to 14μm
  • NETDLess than 40 mK (@25°C,F#=1.1)
  • Focal Length 6.2mm
  • Focus Mode Manual
  • Field of View 25° x 18.7°
  • IFOV 2.74 mrad
  • Image Frequency 25 hz
  • Aperture F 1.1
Optical
  • Picture Resolution Configurable: 2 MP, 5 MP, 8 MP
  • Video Resolution 640 x 480
Thermography
  • Rules Max. Temperature; Min. Temperature; Center Temperature; Custom Point/Line/Area Thermography
  • Thermographic Range From 30 °C to 45 °C
  • Accuracy± 0.5 °C (Without Black Body);± 0.3 °C (With Black Body)
Image Display
  • Monitor 640 x 480 resolution 3.5-inch LCD touch display
  • Image Mode Thermal view, B/W optical view, image fusion view are selectable
  • Palettes Black hot, White hot, Red hot, Rainbow, Ironbow, Fusion, Rain
  • Image Fusion Fusion view of thermal view and overlaid details of the optical channel
  • Digital Zoom Thermal:1x, 2x, 4x
System Function
  • CaptureThermal/Optical/Fusion image
  • VideoThermal/Optical/Fusion image
  • Text Comment Yes
  • Voice Comment Yes
  • Wi-Fi Yes
  • Storage Replaceable memory card (default 16G, support up to 128G storage)
  • Client iVMS-4200 (PC);Hik-Thermal (Mobile APP)
  • Battery Type Dismountable and rechargeable Li-ion Battery
  • Battery Operating Time5 hours in 25℃, with Wi-Fi and Bluetooth off. 4 hours in 25℃, with Wi-Fi and Bluetooth on.
General
  • Hardware Interface Type-C USB
  • Power Supply 5 VDC/2 A
  • Power Consumption Max. 4.5 W
  • Working Temperature 10°C to 35 °C
  • Protection level: IP54
  • Drop Test Height 2 m (6.56 feet)
  • Weight With Battery: 653 g (1.44 lb) Without Battery: 511 g (1.13 lb)

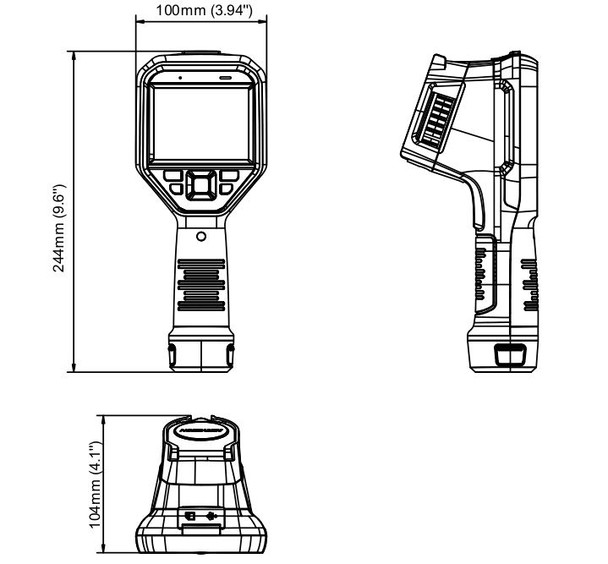

  • Dimension: 244 mm × 100 mm × 104 mm (9.6 ″ × 3.9 ″ × 4.1 ″)
All Security BrandsClose

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Camera Style:
Handheld
NDAA Compliance:
Resolution:
8MP (4K)
Screen Size:
3.5"
Specialized Camera Feature:
Thermal
Thermal Resolution:
160 x 120
Thermal Sensitivity:
NETD <40 mK
Warranty:
5-year Manufacturer Warranty
