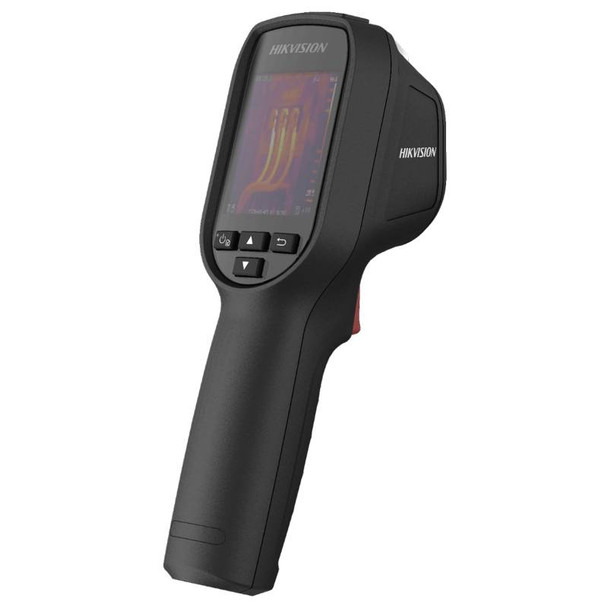

Hikvision DS-2TP31B-3AUF Thermographic Handheld Thermal Camera
The handheld thermography camera, specially designed for temperature measurement in transformer substation. It’s equipped with a 160×120 resolution thermal detector. It helps the staff to quickly find the fault according to accurate temperature measurement of high temperature targets in the environment. Meanwhile it provides assistant decision and ensure safety. The device is mainly applied to various industries, such as Building, HVAC, and auto industry, etc.
Key Features:
- High sensitivity sensor with 160 x 120 resolution
- High quality 320 x 240 resolution 2.4'' LCD display
- Up to 4 palettes
- Wide temperature measurement range: -20 - 550° C
- High temperature measurement accuracy: Up to ±2° C, ±2%
- Long-distance laser light supplement for thermography targets
- Built-in rechargeable Li-ion battery
- Up to 8 hours continuous operation
- Replaceable memory card (default 8G, support up to 128G storage)
Thermography
Device detects the real-time temperature, and display it on the screen.
Storage
Device is equipped with replaceable memory card to store recorded captured snapshots, and important data.
Palette
Device supports 4 palettes.
Laser Light Supplement:
Long-distance laser light supplement to point the thermography target.
Packing List:
- User Manual (×1)
- Disk (×1)
- USB Cable (x1)
- power Adapter (x1)
- Wrist Strap (x1)
Downloads
Popular Search
Videos
View AllCloseSpecifications
Thermal Module
- Image sensorUncooled Focal Plane Arrays
- Max. Resolution160 × 120
- NETD< 40mk (@ 25 °C,F#=1.0)
- Field of View37.2° × 50 °
- ApertureF 1.1
- Pixel Pitch17μm
- Focal length3.1 mm
- IFOV (mrad)5.48 mrad
- Response waveband8μm to 14μm
Image Display
- Monitor320 × 240 resolution 2.4’ LCD display
- PalettesBlack hot, White hot, Rainbow, Ironbow
Thermography
- Rules3 thermometry points: Max. Temperature; Min. Temperature; Center Temperature
- Thermometry Range-20 °C to 550 °C (-4 °F to 1022 °F)
- Thermometry AccuracyMax (±2 °C, ±2%)
Battery
- Battery TypeRechargeable Lithium Battery
- Battery Operating Time8 hours continuous running
Functions
- Laser LightSupport (Point to the thermography target)
- StorageReplaceable memory card (default 8G, support up to 128G storage)
- PhotoThermal image
- VideoN/A
- LanguageEnglish
General
- Power3.7 V DC/0.4 A
- Power ConsumptionLess than 1.2 W
- WeightApprox. less than 350 g (0.77 lb)
- Hardware Interfacemicro USB
- Protection levelIP54
- Drop Test Height2 m (6.56 feet)
- Dimension196 mm × 117 mm × 59 mm (7.7 ″ × 4.6 ″ × 2.3 ″)
- AccessoryPower Adaptor, USB cable, 8GB memory card, User manual, Disk, Wrist Strap
- Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
Additional Information
Access Control Type:
|
Handheld
|
Environmental:
|
Indoor
|
Manufacturer Website:
|
https://us.hikvision.com/en
|
Product Series:
|
Hikvision Thermographic Handheld Series
|
Specialized Camera Feature:
|
Thermal
|
Warranty:
|
5-year Manufacturer Warranty
|
