Hikvision DS-2XC6142FWD-IS 2.8MM 4MP IR Outdoor Anti-Corrosion Dome IP Security Camera, 2.8mm Lens, Gray
316L stainless steel enclosure, protecting cameras to be used in corrosive environments, providing reliability and longevity compared to standard cameras
Water and dust resistant (IP67), preventing water ingress for outdoor use
H.265+/H.265/H.264+/H.264 encoding: efficient compression technology saves storage space and reduces bandwidth requirements
Lens angle adjustment allows the camera lens to be adjusted to manually focus in different directions (pan/tilt/rotate), for easy installation
Key Features:
- Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR B/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR
- 2688 × 1520
- 2.8 / 4mm lens
- 32 Kbps to 8 Mbps
- 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Up to 15m
- 12 VDC, 0.4 A, max. 5 W, two-core terminal block
Downloads
Quick Start Guide
Hikvision-DS-2XC6142FWD-IS-2.8MM-Quick-Start-Guide-A1
User Manual
Hikvision-DS-2XC6142FWD-IS-2.8MM-User-Manual-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Alternative SKUs:
|
DS-2XC6142FWD-IS
HX-OD61422
|
|
Aperture:
|
F1.6
|
|
Camera Style:
|
Dome
|
|
Certifications:
|
BIS
CB
CE
CEC
FCC
IC
KC
LOA
RCM
RoHS
UL Listed
|
|
Color:
|
Gray
|
|
Compatible Integration (API):
|
ONVIF
ISAPI
ISUP
|
|
Compression:
|
H.265
H.265 Plus
H.264
H.264 Plus
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Detect (ft):
|
179.16
|
|

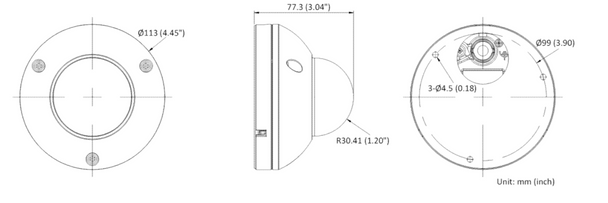

Dimensions:
|
113 x 77.3 mm (4.45 x 3.04 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Diagonal):
|
116.2
|
|
Field of View (Horizontal):
|
98.5
|
|
Field of View (Vertical):
|
52.8
|
|
Identify (ft):
|
18.04
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Highlight Compensation (HLC)
Defog
|
|
Image Settings:
|
Brigthness
Contrast
Saturation
Sharpness
Privacy Mask
|
|
Languages:
|
English
Russian
Estonian
Bulgarian
Hungarian
Greek
German
Italian
Czech
Slovak
French
Polish
Dutch
Portuguese
Spanish
Romanian
Danish
Swedish
Norwegian
Finnish
Croatian
Slovenian
Serbian
Turkish
Korean
Traditional Chinese
Thai
Vietnamese
Japanese
Latvian
Lithuanian
Portuguese (Brazil)
Ukrainian
|
|
Lens Mount:
|
M12
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Main Stream:
|
4MP
|
|
Material:
|
Stainless Steel 316L
|
|
Max Power Consumption:
|
5 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2688 x 1520
|
|
Max. Storage Capacity:
|
128 GB
|
|
Minimum Illumination (B/W):
|
0.0018 lux at F1.6 AGC on
0 lux with IR illumination on
|
|
Minimum Illumination (Color):
|
0.009 Lux at F1.6 AGC On
|
|
Network Interface:
|
1x RJ-45 10M/100M self-adaptive Ethernet interface
|
|
Night Vision Range (ft):
|
49
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Observe (ft):
|
71.19
|
|
Power Supply:
|
PoE (IEEE 802.3af)
12 VDC
|
|
Product Series:
|
Hikvision Anti-Corrosion Series
|
|
Protection Code:
|
NEMA 4X
IP67
|
|
Recognize (ft):
|
35.76
|
|
Remote Users:
|
Up to 32
|
|
Resolution:
|
4MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/3"
|
|
Sensor Type:
|
CMOS
|
|
Specialized Camera Feature:
|
Anti-corrosion
|
|
Sub Stream:
|
VGA
|
|
Technology:
|
Network (IP)
|
|
Third Stream:
|
1080P
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
