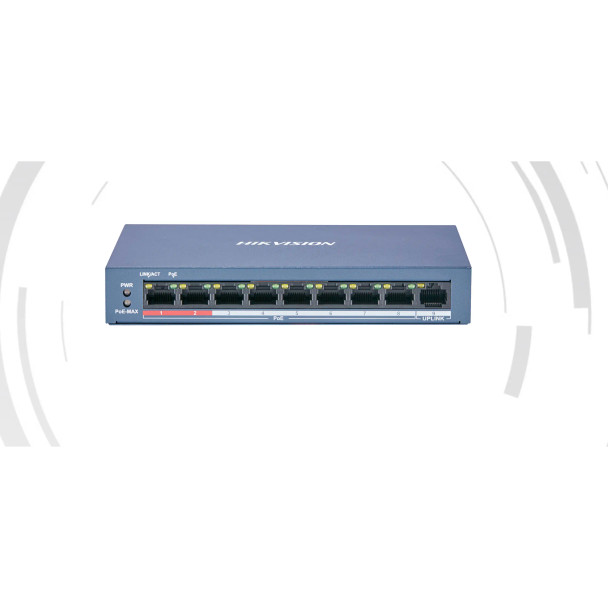

Hikvision DS-3E0109P-E/M(B) 8 Port Fast Ethernet Unmanaged PoE Switch with 60 Watt PoE Budget

Hikvision DS-3E0109P-E/M(B) 8 Port Fast Ethernet Unmanaged PoE Switch with 60 Watt PoE Budget

The Hikvision DS-3E0109P-E/M(B) is an ultra-compact 8-port Fast Ethernet PoE switch designed for small surveillance installations and edge deployments. Featuring 8 × 10/100 Mbps PoE ports with 60W total power budget, this unmanaged switch delivers up to 30W per port for powering IP cameras and other PoE devices. The switch supports extend mode for long-range transmission up to 300 meters, making it ideal for installations where cameras are located far from the network infrastructure. With intelligent PoE management, the switch automatically prioritizes power distribution when demand exceeds capacity, ensuring continuous operation of critical surveillance equipment. Built-in 6KV surge protection safeguards the switch and connected devices from lightning strikes and electrical surges in harsh outdoor environments.

The compact desktop design with metal housing provides durability while occupying minimal space, perfect for small offices, retail stores, and residential installations. The 8-core adaptive power supply reduces power loss on cables, improving efficiency and reliability. Store-and-forward switching with 1.8 Gbps capacity and 1.34 Mpps forwarding rate ensures smooth video streaming. An additional 1 × 10/100 Mbps RJ45 uplink port provides flexible network connectivity. Desk or wall-mounting options offer installation flexibility. The switch operates efficiently with only 5W idle power consumption, making it an energy-efficient solution for always-on network infrastructure.

Key Features:

• 8 × 10/100 Mbps PoE ports with IEEE 802.3af/at support and 60W total power budget; delivers up to 30W per port for IP cameras and access points
• Long-range extend mode transmits power and data up to 300 meters (984 feet); ideal for perimeter cameras and remote locations without additional power infrastructure
• Intelligent PoE management with automatic power prioritization; ensures continuous operation when total demand exceeds 60W capacity
• 6KV surge protection on all ports; protects against lightning strikes and electrical surges in outdoor installations
• Ultra-compact metal housing with desk and wall-mount options; only 6.7" × 1.1" × 3.7" footprint saves space in small installations
