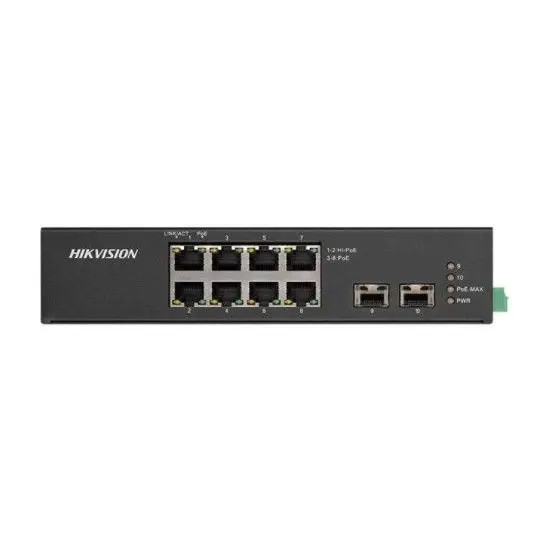

Hikvision DS-3T0510HP-E/HS 8 Port Gigabit Unmanaged Hardened PoE Switch with 110 Watt PoE Budget

Hikvision DS-3T0510HP-E/HS 8 Port Gigabit Unmanaged Hardened PoE Switch with 110 Watt PoE Budget

The Hikvision DS-3T0510HP-E/HS is an industrial-grade hardened 8-port Gigabit PoE switch engineered for extreme outdoor environments and harsh industrial applications. Featuring 8 × Gigabit PoE ports with 110W total power budget, this unmanaged switch delivers up to 90W on ports 1-2 (Hi-PoE) and up to 30W on ports 3-8 for powering IP cameras, PTZ cameras, and other PoE devices. The switch operates reliably in extended temperature ranges from -30°C to 65°C (-22°F to 149°F), making it ideal for Arctic conditions, desert installations, and outdoor industrial environments where standard switches fail. Supporting IEEE 802.3af/at/bt standards ensures compatibility with the widest range of PoE equipment including high-power PTZ cameras and multi-sensor devices.

Advanced features include long-range extend mode on ports 7-8 that transmits power and data up to 300 meters (980 feet), eliminating the need for additional power infrastructure at remote camera locations. Built-in 6KV surge protection safeguards the switch and connected devices from lightning strikes and electrical surges. PoE watchdog automatically detects and restarts unresponsive cameras, ensuring continuous surveillance operation. Port isolation mode improves network security by preventing communication between PoE ports. Additional uplink options include 2 × Gigabit SFP fiber ports for long-distance fiber connectivity. The fanless rugged metal housing provides silent operation and industrial-grade durability, with wire-speed forwarding (20 Gbps capacity) ensuring smooth video streaming from multiple high-resolution cameras.

Key Features:

• 8 × Gigabit PoE ports with IEEE 802.3af/at/bt support and 110W total power budget; ports 1-2 deliver up to 90W Hi-PoE for high-power PTZ cameras
• Industrial hardened design with -30°C to 65°C (-22°F to 149°F) operation; ideal for Arctic, desert, and extreme outdoor installations
• Long-range extend mode on ports 7-8 transmits power and data up to 980 feet (300 meters); eliminates additional power infrastructure needs
• 6KV surge protection with PoE watchdog and port isolation; ensures continuous operation in harsh industrial environments
• Fanless metal housing with 2 × Gigabit SFP fiber uplinks; 20 Gbps switching capacity for professional surveillance deployments
