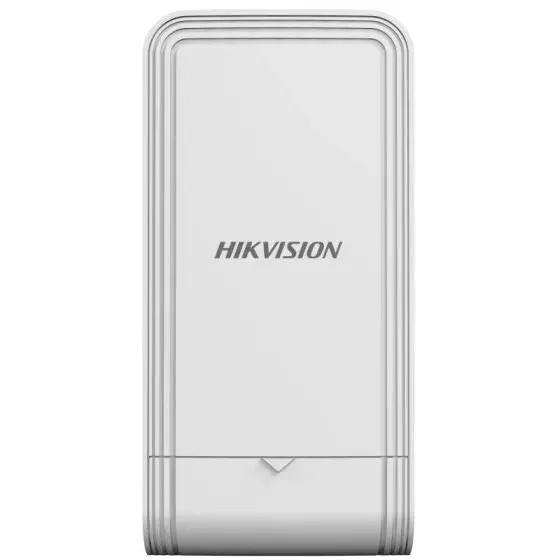

Hikvision DS-3WF02C-5AC/O 5 GHz Outdoor Wireless Bridge with 12 dBi Antenna

Hikvision DS-3WF02C-5AC/O 5 GHz Outdoor Wireless Bridge with 12 dBi Antenna

The Hikvision DS-3WF02C-5AC/O is a high-performance 5 GHz outdoor wireless bridge designed for long-range point-to-point and point-to-multipoint video transmission applications. Supporting IEEE 802.11a/n/ac standards with up to 867 Mbps throughput, this wireless bridge enables reliable HD video transmission over distances up to 5 kilometers. The integrated 12 dBi directional antenna with 35° beamwidth provides focused signal coverage for precise point-to-point links. TDMA technology ensures efficient bandwidth utilization and minimizes interference in multi-device deployments. With IP55-rated weather resistance and wide temperature operation (-30°C to 70°C), the bridge performs reliably in harsh outdoor environments.

Advanced features include quick pairing through DIP switch configuration, eliminating complex setup procedures. The device supports both AP (Access Point) and CPE (Client) modes, enabling flexible network topologies. Two gigabit Ethernet ports provide high-speed wired connectivity, with one port supporting passive PoE input for simplified installation. Point-to-point mode supports up to 40 channels of 2MP cameras at 1km distance with 200 Mbps bandwidth. Point-to-multipoint mode supports up to 16 channels within 35° coverage area, connecting 1 to 8 CPE devices. PoE watchdog automatically detects and restarts unresponsive cameras, ensuring continuous surveillance operation. Visualized topology management simplifies network monitoring and troubleshooting.

Key Features:

• IEEE 802.11a/n/ac with up to 867 Mbps throughput and 5km transmission range; supports 8 channels of 2MP cameras at maximum distance
• Integrated 12 dBi directional antenna with 35° beamwidth; provides focused signal coverage for reliable point-to-point and point-to-multipoint links
• TDMA technology with DFS, TPC, IFM, and IPM; optimizes bandwidth utilization and minimizes interference in multi-device deployments
• Quick pairing through DIP switch configuration; supports both AP and CPE modes for flexible network topologies
• IP55 weather resistance with -30°C to 70°C operation; pole-mounting design for outdoor installations with passive PoE support
