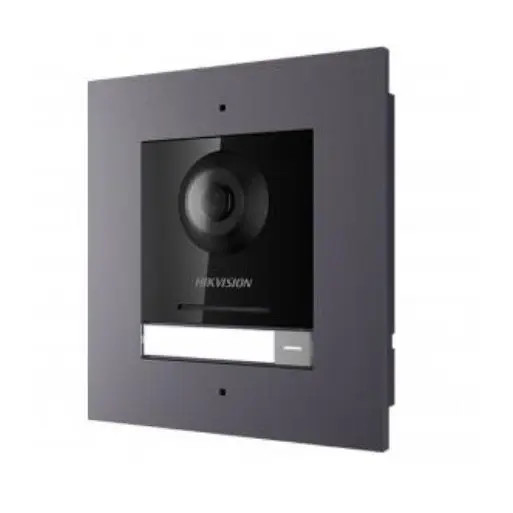

Hikvision DS-KD8003-IME1/Flush 2MP Modular Video Intercom Door Station with Flush Mount

Hikvision DS-KD8003-IME1/Flush 2MP Modular Video Intercom Door Station with Flush Mount

The Hikvision DS-KD8003-IME1/Flush delivers professional modular video intercom and access control functionality through flush-mount installation designed for apartment buildings, multi-tenant residential complexes, and commercial office environments. This 2MP HD door station module combines H.264 video compression with integrated fisheye camera featuring 180° horizontal field of view and IR supplemental lighting, providing comprehensive entrance monitoring with exceptional low-light performance for 24/7 visitor identification.

Built with embedded Linux operating system and noise suppression with echo cancellation technology, this intercom module ensures clear two-way audio communication through built-in omnidirectional microphone and loudspeaker (>85 dB within 20 cm). The modular design supports connection of up to 8 sub-modules for expanded functionality, enabling scalable deployment from simple single-entrance installations to complex multi-station apartment building intercoms without separate infrastructure investment.

The flush-mount design (124×134×57.88mm) provides clean, professional installation appearance suitable for modern building lobbies and entrance areas. IP65 protection rating when properly mounted ensures reliable operation in demanding conditions from -40°F to 140°F. PoE IEEE 802.3af or 12 VDC power support offers flexible installation options, while tamper detection and customizable nametag capabilities provide enhanced security and personalization for multi-tenant residential applications.

Key Features:

• 2MP H.264 fisheye camera with 180° horizontal FOV and IR supplement; delivers comprehensive wide-angle entrance monitoring with low-light capability for reliable 24/7 visitor identification in apartment lobbies and building entrances.
• Modular design supporting up to 8 sub-module connections; enables scalable expansion from simple single-door installations to complex multi-tenant intercom systems without separate infrastructure or complete system replacement.
• Noise suppression and echo cancellation for clear audio; ensures professional two-way communication quality through omnidirectional microphone and >85 dB loudspeaker for effective visitor conversation even in noisy environments.
• Flush-mount installation with IP65 protection; provides clean, vandal-resistant appearance suitable for modern building lobbies with reliable operation from -40°F to 140°F for demanding climate conditions.
• PoE IEEE 802.3af or 12 VDC power options; offers installation flexibility with single-cable PoE simplicity or traditional DC power when network infrastructure constraints exist.
• Customizable nametag and tamper detection; enables tenant identification in multi-unit buildings while providing security alerts for unauthorized physical access attempts to the intercom hardware.
