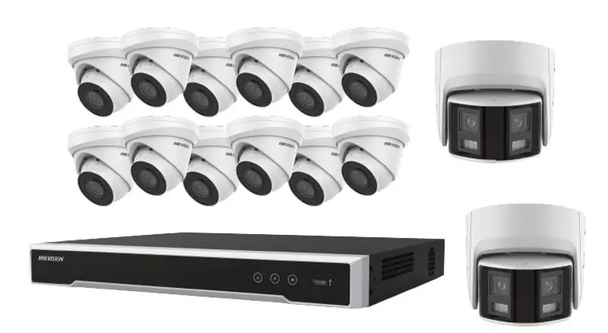

Hikvision EKI-K164T414 16 Channel 8MP(4K) Network Video Recorder with 4TB HDD & 12 x 4MP Outdoor Turret IP Cameras and 2 x 4MP 180° Panoramic IP Cameras

Hikvision EKI-K164T414 16 Channel 8MP(4K) Network Video Recorder with 4TB HDD & 12 x 4MP Outdoor Turret IP Cameras and 2 x 4MP 180° Panoramic IP Cameras

The Hikvision EKI-K164T414 delivers a comprehensive 16-channel IP surveillance solution designed for medium to large-scale commercial installations. This complete system includes a 4K network video recorder with 4TB pre-installed storage, twelve 4MP turret cameras featuring infrared night vision, and two innovative 4MP 180° panoramic cameras for exceptional wide-area monitoring. The turret cameras provide reliable 24/7 performance with up to 30 meters of IR illumination and 120dB WDR for clear imaging in challenging lighting conditions, while the dual-lens panoramic cameras eliminate blind spots with their 180-degree horizontal field of view and sophisticated perimeter protection analytics.

Built for professional installations demanding scalability and advanced features, the 16-channel NVR supports up to 160 Mbps incoming bandwidth and includes integrated 16-port PoE capability (≤150W total), streamlining deployment by delivering both power and data over single cable connections. Supporting up to 8MP resolution recording with H.265+ compression, the recorder maximizes storage efficiency while maintaining exceptional image quality across all channels. Advanced motion detection 2.0 with human and vehicle classification on 4 channels reduces false alarms by intelligently filtering events, while the panoramic cameras add line crossing and intrusion detection capabilities for enhanced security monitoring.

Key Features:

• 16-channel 4K NVR with 4TB HDD and support for up to 16TB total capacity (2 SATA bays); provides substantial storage for extended high-resolution recording with intelligent compression technology
• 12 x 4MP turret cameras with 2.8mm fixed lenses and IR night vision up to 30m; delivers comprehensive surveillance coverage with clear nighttime imaging for identification purposes
• 2 x 4MP 180° panoramic dual-lens cameras with perimeter protection analytics; eliminates coverage gaps while providing intelligent line crossing and intrusion detection for critical monitoring zones
• H.265+ compression with 120dB WDR on all cameras; optimizes storage efficiency while maintaining exceptional image quality in high-contrast lighting scenarios and challenging environments
• Built-in 16-port PoE switch (IEEE 802.3af/at, ≤150W total); streamlines large-scale installations with single-cable connections providing both power and data to all cameras
• Motion detection 2.0 with human/vehicle analysis on 4 channels; intelligently filters alerts to focus on genuine security events and reduce false notifications from irrelevant motion
• IP67-rated weatherproof cameras with microSD card slots up to 256GB (turret) and 512GB (panoramic); ensures reliable outdoor operation with local backup recording options for added redundancy
