Description
Hikvision EKI-K82D46 Value Express 7-Piece Kit, (1) ERI-K108-P8 4K 8-PoE Port NVR, (6) ECI-D24F2 4MP Cameras, 2.8mm Lens
Hikvision EKI-KxxxD4xx Series 4K NVR Value Express Kits are cost-effective solutions for value-oriented users. Each kit is supplied with four, six, or twelve network cameras with 4 MP image sensors, and a 4-, 8, or 16-channel 4K NVR in the same box.
Kit includes

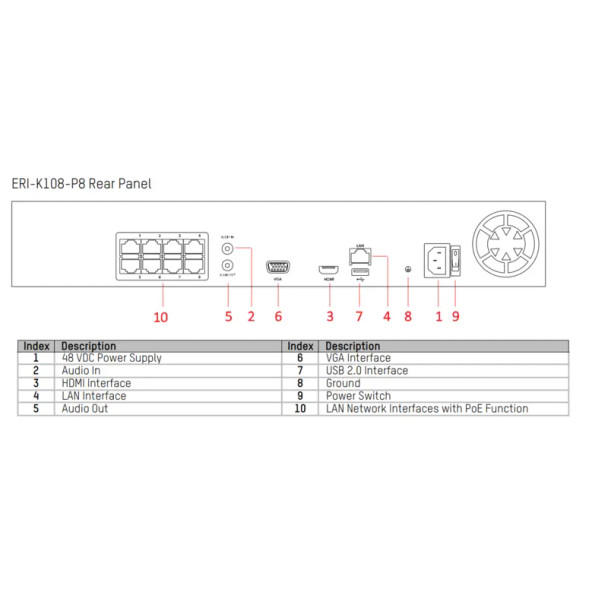

(1) ERI-K108-P8 NVR
- Up to 8 MP Resolution Recording
- H.265 /H.265/H.264 /H.264/MPEG
- Plug-and-Play with 4, 8, or 16 PoE Cameras
- Up to 2 SATA Interfaces
(6) ECI-D24F2 Cameras
- 1/3" (4 MP) Progressive Scan CMOS
- 2688 x 1520 @ 30 fps
- 2.8 mm Fixed Lens
- Color: 0.018 Lux @ ƒ/1.6, AGC on), 0 Lux with IR
- H.265 /H.265/H.264 /H.264
- IP67, IK10
- 120 dB WDR
- BLC/3D DNR/ROI/HLC
- Built-in MicroSD/SDHC/SDXC Card Slot, Up to 128 GB
- 3-Axis Adjustment
Kits are plug - n -play and can be set up quickly.
Key Features:
- 1/3" (4 MP) Progressive Scan CMOS
- 2688 x 1520 @ 30 fps
- 2.8 mm Fixed Lens
- Color: 0.018 Lux @ ?/1.6, AGC on), 0 Lux with IR
- H.265+/H.265/H.264+/H.264
- IP67, IK10
- 120 dB WDR
- BLC/3D DNR/ROI/HLC
- Built-in MicroSD/SDHC/SDXC Card Slot, Up to 128 GB
- 3-Axis Adjustment
Downloads
Datasheet
Hikvision-EKI-K82D46-Datasheet-A1
Quick Start Guide
Hikvision-EKI-K82D46-Quick-Start-Guide-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
4K Support:
|
4K Supported
|
|
Aperture:
|
F1.6
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Input:
|
1x RCA
|
|
Audio Output:
|
1x RCA
|
|
Camera Style:
|
Dome
|
|
Capacity for each disk:
|
up to 6TB
|
|
Channel Capacity:
|
8 Channels
|
|
Compression:
|
H.264
H.264 Plus
H.265
H.265 Plus
MPEG4
|
|
Connection Type:
|
Wired
|
|
Dimensions:
|
315 x 240 x 48 mm (12.4 x 9.4 x 1.9 in)
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
103
|
|
Hard Drive Ports:
|
1 SATA Port
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Manufacturer Website:
|
https://us.hikvision.com/en
|
|
Max Power Consumption:
|
10 Watts
|
|
Max. Incoming Bandwidth:
|
80Mbps
|
|
Max. Recording Resolution:
|
8MP (4K)
|
|
Max. Storage Capacity:
|
6 TB
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.018 Lux at F1.6 AGC ON
|
|
Network Interface:
|
1x RJ-45 10M/100M self-adaptive Ethernet interface
|
|
Night Vision Range (ft):
|
98
|
|
Noise Reduction:
|
3D DNR
|
|
Number of PoE Ports:
|
8 PoE Ports
|
|
Number of Security Cameras:
|
6 camera system
|
|
Power Supply:
|
100 to 240 V AC
|
|
Pre-Installed Storage:
|
4 TB
|
|
Product Series:
|
Hikvision Value Express Series
|
|
Protection Code:
|
IK10
IP67
|
|
Rack Unit (U):
|
1U
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
|
Resolution:
|
4MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/3"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/3-1/100000s
|
|
Technology:
|
Network (IP)
|
|
USB Interface:
|
2x USB 2.0
|
|
Video Output:
|
1x HDMI
1x VGA
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
