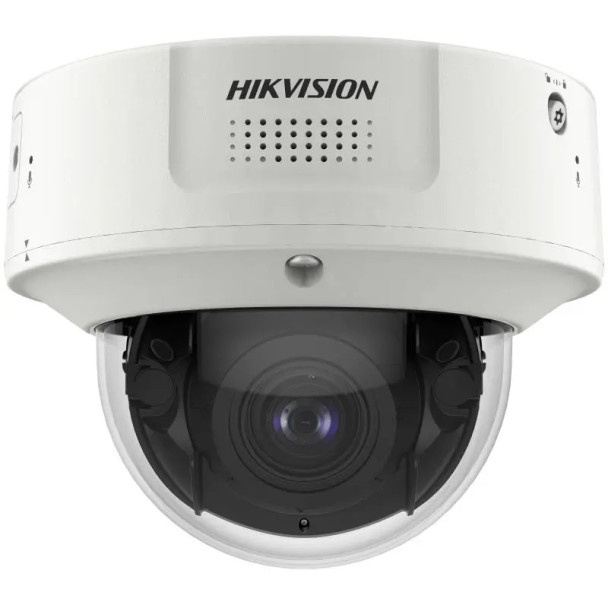

Hikvision iDS-2CD7146G0-IZHSY 8-32mm 4MP Outdoor Dome IP Security Camera with 8-32mm Lens and Built-In IR
The Hikvision iDS-2CD7146G0-IZHSY DeepinView Series camera delivers professional-grade 4MP surveillance with extended telephoto coverage and enhanced environmental protection. Featuring DarkFighter technology with exceptional minimum illumination of 0.0005 Lux in color mode, this camera provides outstanding low-light performance for critical long-range monitoring applications requiring detailed identification at distance.
The motorized 8-32mm telephoto varifocal lens enables distant target observation with horizontal field of view from 42.5° to 15.1°, achieving detection distances up to 400 meters and identification up to 40 meters. Advanced 140 dB true Wide Dynamic Range handles challenging backlit scenes, while efficient H.265+ compression significantly reduces bandwidth and storage requirements. The camera supports up to 5 simultaneous video streams for versatile deployment scenarios.
Built-in deep learning algorithms enable multi-target-type detection simultaneously capturing faces, human bodies, and vehicles with detailed attribute recognition. The camera supports face comparison with up to 150,000 face library capacity, perimeter protection with human and vehicle classification, queue management, people counting, and hard hat detection. With IK10 vandal-resistant construction, enhanced environmental sealing, PoE 802.3at power, and local storage up to 1TB microSD, the iDS-2CD7146G0-IZHSY provides a ruggedized intelligent surveillance solution for demanding outdoor installations.
Key Features:
- 4MP resolution with DarkFighter and 8-32mm telephoto lens; Enables detailed long-range identification with detection capability up to 1,312 feet for critical perimeter security.
- Advanced deep learning analytics with multi-target-type detection; Simultaneously detects and captures faces, human bodies, and vehicles with detailed attribute extraction and classification.
- Face comparison with 150,000 face library capacity; Supports access control, VIP recognition, and watchlist alerting for comprehensive security management.
- 140 dB true Wide Dynamic Range with IR up to 164ft; Delivers balanced exposure in challenging lighting conditions with extended infrared illumination for nighttime surveillance.
- Perimeter protection with human and vehicle classification; Drastically reduces false alarms by accurately distinguishing between genuine security threats and environmental motion.
- Queue management and people counting with AI deduplication; Optimizes operational efficiency through accurate wait time analysis and intelligent foot traffic measurement.
- 5 simultaneous video streams with H.265+ compression; Supports diverse applications from real-time analytics to remote viewing while minimizing network bandwidth.
- IK10 vandal-resistant with enhanced outdoor protection; Ensures reliable operation in harsh outdoor environments with superior environmental sealing and 1TB local storage.
Downloads
Additional Information
|
Aperture:
|
F1.7
|
|
Camera Style:
|
Dome
|
|
Compression:
|
H.265
H.264
H.265+
H.264+
MJPEG
|
|
Day/Night:
|
ICR
|
|
Dimensions:
|
5.68x4.49x5.68in
|
|
Environmental:
|
Outdoor
|
|
Lens Size:
|
8-32mm
|
|
Lens Type:
|
Motorized Varifocal Lens
|
|
Night Vision Range (ft):
|
164
|
|
Power Supply:
|
12 VDC
24 VAC
PoE (IEEE 802.3at)
|
|
Protection Code:
|
IK10
|
|
Resolution:
|
4MP
|
|
SD Card Support:
|
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
Progressive CMOS
|
|
Storage Humidity:
|
0% to 95% RH (non-condensing)
|
|
Storage Temperature:
|
-30 °C to 60 °C (-22 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
WDR 140dB
|
