Description
Hikvision IDS-2CD7546G0-IZHSY 8-32MM DeepinView Series 4MP IR Varifocal Dome IP Security Camera, 8~32mm Lens, White
Face Detection
Embedded deep learning based algorithms, the camera detects,tracks, captures, grades, and selects faces and outputs features such as gender, age, and expression. The camera uses a face exposure function to dynamically adjust face area exposure of captures and ensures high face picture quality.
Perimeter Protection
With embedded deep learning based target detection and classification algorithms, the camera carries out the duty of perimeter protection, monitoring the actions of line crossing, intrusion, region entrance, and region exiting. The algorithms greatly filter out mistaken alarms caused by interference of leaves, lights, animals, flags, etc.
Multi-Target Recognition
The camera detects and captures faces, human bodies, and vehicles in specified regions and outputs features such as gender, age, top color, and vehicle type.
Key Features:
- High Quality Imaging with 4 MP resolution
- Excellent Low-Light Performance via DarkFighter Technology
- 140 dB WDR for Clear Imaging Against Strong Backlight
- Efficient H.265+ Compression Saves Bandwidth and Storage
- Advanced Streaming Technology Enables Smooth Live View and Self-Correcting Data in Poor Networks
- 5 Streams and up to 5 Custom Streams to Meet a Wide Variety of Applications
- Water and Dust Resistant (IP67) and Vandal Proof (IK10)
- Anti-IR Reflection Bubble Improves Image Quality
Downloads
Quick Start Guide
Hikvision-IDS-2CD7546G0-IZHSY-8-32MM-Quick-Start-Guide-A1
Popular Search
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Alternative SKUs:
|
IDS-2CD7546G0-IZHSY 8-32 MM
IDS-2CD7546G0-IZHSY
HX-BL7546IY8
|
|
Analytics:
|
Intrusion Detection
Line Crossing
Motion Detection
Region Entrance Detection
Region Exiting Detection
Tampering
|
|
Aperture:
|
F1.7
F1.73
|
|
Audio Capability:
|
One-way Audio
|
|
Audio Compression:
|
AAC
G.711
G.722.1
G.726
MP2L2
MP3
PCM
|
|
Audio Input:
|
1x 3.5mm
|
|
Audio Output:
|
1x 3.5mm
|
|
Audio Support:
|
Built-in Microphone
|
|
Built-in Features:
|
Built-in Heater
|
|
Camera Style:
|
Dome
|
|
Certifications:
|
BIS
CE
cULus
FCC
LOA
REACH
RoHS
WEEE
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ISAPI
ISUP
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
SDK
|
|
Compression:
|
H.264
H.264 Plus
H.265
H.265 Plus
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|

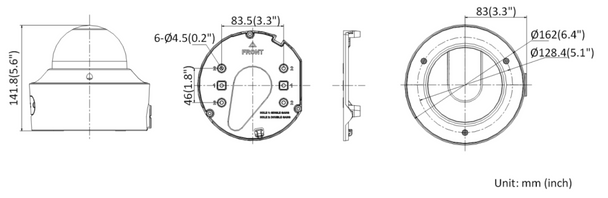

Dimensions:
|
162 x 141.8 mm (6.4 x 5.6 in)
|
|
Durability:
|
Corrosion resistant
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Diagonal):
|
49.6
17.3
|
|
Field of View (Horizontal):
|
42.5
15.1
|
|
Field of View (Vertical):
|
23.3
8.64
|
|
Focus:
|
Auto Focus
Manual
Semi-Auto
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Defog
Highlight Compensation (HLC)
Electronic Image Stabilization (EIS)
|
|
Image Settings:
|
Brigthness
Contrast
Saturation
Sharpness
|
|
Iris:
|
P-iris
|
|
Languages:
|
Bulgarian
Croatian
Czech
Danish
Dutch
English
Estonian
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Korean
Latvian
Lithuanian
Norwegian
Polish
Portuguese
Portuguese (Brazil)
Romanian
Russian
Serbian
Slovak
Slovenian
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Ukrainian
Vietnamese
|
|
Lens Size:
|
8~32mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Main Stream:
|
4MP
|
|
Max Power Consumption:
|
15 Watts
|
|
Max. FPS and Resolution:
|
60fps at 2560 x 1440
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (B/W):
|
0 lux with IR illumination on
0.00044 Lux
|
|
Minimum Illumination (Color):
|
0.0005 lux
|
|
Mounting:
|
Corner Mount
In-Ceiling Mount
Pendant Mount
Wall Mount
|
|
Network Interface:
|
1x RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
|
|
Night Vision Range (ft):
|
98
|
|
Night Vision Type:
|
Night Vision (IR)
Smart IR
|
|
Noise Reduction:
|
3D DNR
|
|
Power Supply:
|
12 VDC
24 VAC
PoE+ (IEEE802.3at Class 4)
|
|
Product Series:
|
Hikvision DeepinView Series
Hikvision Smart Series
|
|
Protection Code:
|
IK10
IP67
NEMA 4X
|
|
Region of Interest (ROI):
|
4
|
|
Remote Users:
|
Up to 32
|
|
Resolution:
|
4MP
|
|
S/N Ratio:
|
>52 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Security:
|
Digest authentication
HTTPS encryption
IP address filtering
Password protection
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Serial Interface:
|
1x RS485
|
|
Shutter Speed:
|
1-1/100000s
|
|
Special Technologies:
|
Hikvision DarkFighter
|
|
Specialized Camera Feature:
|
Deep-learning
|
|
Storage Humidity:
|
0% to 95% (non-condensing)
|
|
Storage Temperature:
|
-30 °C to 60 °C (-22 °F to 140 °F)
|
|
Sub Stream:
|
VGA
|
|
Technology:
|
Network (IP)
|
|
Third Stream:
|
1080P
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
WDR 140dB
|
