Description
Hikvision PCI-D12F4S AcuSense 2MP IR Outdoor Fixed Dome IP Security Camera, 4mm Lens, White
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification alarms to front- and back-end devices. The system can greatly reduce false alarms generated by targets other than humans or vehicles, vastly improving alarm efficiency and effectiveness.
Key Features:
- Excellent low-light performance with Powered-by-DarkFighter technology
- High quality imaging with 1080p @ 60 fps
- Lens Type & FOV: 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 129°
- Efficient H.265+ compression technology
- False alarm reduction through human and vehicle target classification based on deep learning
- IR Range: Up to 131 ft (40 m)
- Water and dust resistant (IP67) and vandal-resistant (IK10)
- Clear imaging against strong back light with 120 dB true WDR technology
- Advanced streaming technology that enables smooth live view and data self-correcting in poor network conditions
Downloads
Quick Start Guide
Hikvision-PCI-D12F4S-Quick-Start-Guide-A1
User Manual
Hikvision-PCI-D12F4S-User-Manual-A1
Datasheet
Hikvision-PCI-D12F4S-Datasheet-A1
Firmware
Hikvision-PCI-D12F4S-Firmware-A1
Popular Search
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Alternative SKUs:
|
HX-D12F4S
|
|
Analytics:
|
Intrusion Detection
Line Crossing
Motion Detection
Region Entrance Detection
Region Exiting Detection
Tampering
|
|
Aperture:
|
F1.4
|
|
Audio Compression:
|
G.711alaw
G.711ulaw
G.722.1
G.726
MP2L2
MP3
PCM
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Camera Style:
|
Dome
|
|
Certifications:
|
BIS
CE
FCC
KC
LOA
RCM
REACH
RoHS
UL Listed
WEEE
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ISAPI
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
SDK
|
|
Compression:
|
H.264
H.264 Plus
H.265
H.265 Plus
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Detect (ft):
|
173.88
|
|

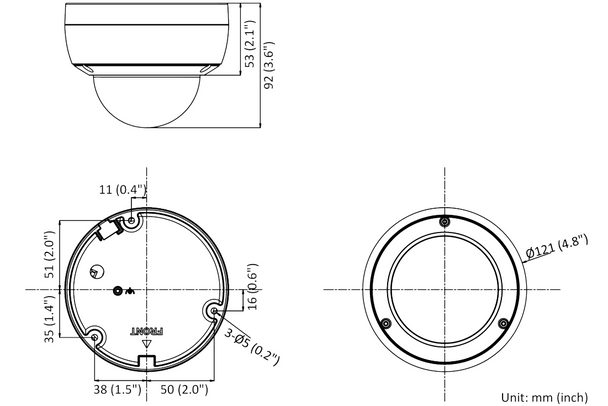

Dimensions:
|
121 x 92 mm (4.8 x 3.6 in.)
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Diagonal):
|
102
|
|
Field of View (Horizontal):
|
86
|
|
Field of View (Vertical):
|
47
|
|
Identify (ft):
|
16.40
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Defog
Electronic Image Stabilization (EIS)
Highlight Compensation (HLC)
|
|
Image Settings:
|
Brigthness
Contrast
Mirror
Privacy Mask
Saturation
Sharpness
|
|
Languages:
|
Bulgarian
Croatian
Czech
Danish
Dutch
English
Estonian
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Korean
Latvian
Lithuanian
Norwegian
Polish
Portuguese
Portuguese (Brazil)
Romanian
Russian
Serbian
Slovak
Slovenian
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Ukrainian
Vietnamese
|
|
Lens Mount:
|
M12
|
|
Lens Size:
|
4mm
|
|
Lens Type:
|
Fixed Lens
|
|
Main Stream:
|
1080P
|
|
Max Power Consumption:
|
7.5 Watts
|
|
Max. FPS and Resolution:
|
60fps at 1920 x 1080
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (B/W):
|
0 lux with IR illumination on
|
|
Minimum Illumination (Color):
|
0.002 Lux
|
|
Mounting:
|
Corner Mount
Pendant Mount
Wall Mount
|
|
Network Interface:
|
1x RJ-45 10M/100M self-adaptive Ethernet interface
|
|
Night Vision Range (ft):
|
131
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Observe (ft):
|
68.90
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
Hikvision AcuSense Series
Hikvision Performance Series
|
|
Protection Code:
|
IK10
IP67
|
|
RAM:
|
512MB
|
|
ROM:
|
8 GB
|
|
Recognize (ft):
|
32.81
|
|
Region of Interest (ROI):
|
5
|
|
Remote Users:
|
Up to 32
|
|
Reset Button:
|
|
|
Resolution:
|
2MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Security:
|
Digest authentication
HTTPS encryption
IP address filtering
Password protection
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/3-1/100000s
|
|
Special Technologies:
|
Hikvision AcuSense
Hikvision DarkFighter
|
|
Specialized Camera Feature:
|
Deep-learning
|
|
Storage Humidity:
|
0% to 95% (non-condensing)
|
|
Storage Temperature:
|
-30 °C to 60 °C (-22 °F to 140 °F)
|
|
Sub Stream:
|
VGA
|
|
Technology:
|
Network (IP)
|
|
Wavelength (nm):
|
850
|
|
Web Browser:
|
Chrome
Firefox
Internet Explorer
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
