Honeywell 270R Hardwired Hold-Up Switch with Plastic Cover
Description
Honeywell 270R Hardwired Hold-Up Switch with Plastic Cover
Honeywell’s series of hold-up devices have been designed for silent operation. Available in a stainless steel cover or hardwired, V-Plex® and wireless versions, they mount quickly and easily in discreet locations. They are ideally suited for use in locations such as banks, jewelry stores, retail establishments or any situation that requires hold-up notification.

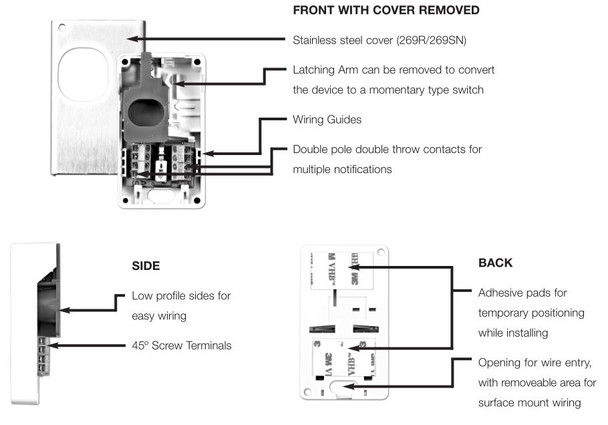

Key Features:
- Silent operation
- Double-pole double-throw contacts for multi-notifications
- Twin 45° screw terminals with EOL resistor splicing terminal
- Adhesive pads for temporary positioning while installing
- Fully supervised
- Convenient reset key for testing and/or reset of alarm
Specifications
Part No. | Description |
---|---|
269R | Hardwired Hold-Up switch with stainless steel cover |
270R | Hardwired Hold-Up switch in plastic case |
269SN | V-Plex Hold-Up switch with stainless steel cover (polling loop only) |
5869 | 5800 Series Wireless Hold-Up Switch |
- Switch type
- Plunger type DPDT
- Switch action
- Selectable latching or momentary
- Switch Rating
- 0.2A @ 30VDC max.
- Connections
- Four position 45° screw terminal block for each output side with EOL resistor splicing terminals
- Operating Temp
- 14° F to 140° F (-10° to 60°C)
- Dimensions
- 3.5" L x 2.0" W x 1.25" D
- Listed for UL636 Hold-Up alarm units and systems
