Description
Honeywell HNMSE48D16T MAXPRO 16TB NVR SE, 2U Rackmount, 48 Channels, 6 SATA Ports, 8GB RAM, Windows 10 IoT Enterprise OS
MAXPRO® NVR SE is an open, flexible, and scalable IP video surveillance system that has simple and logical configuration pages which makes setup a breeze even for the novice installer. The processor and storage enclosure are in one chassis for space and cost savings along with easy-to-use desktop clients, Mac or PC browser web client, and mobile apps for remote connectivity and monitoring. Multiple NVR deployments for system expansion is easily managed via MAXPRO® VMS enterprise video management system and intelligent command.
Key Features:
- 16 GB DDR4 memory with internal storage capacity 4 TB to 96 TB
- Multi-steam support for maximum 128 streams.
- Base software: Microsoft SQL Server 2019 Express; Windows 10 IoT Enterprise for Embedded Systems
- 1 solid-state drive with operating system and 6 removable bays with storage hard drives for optional 4B -16TB SATA hard drives.
- Intuitive user interface offers feature-rich user experience as intelligence events captured from cameras.
- 3-Click wizard for easy, quick install to live video for auto configuration
- Simultaneous recording, live monitoring, search and system management for up to 64 IP cameras including high-definition formats
- Includes dual 1 GB Network ports optimized to separate record and viewing data to ensure 100% recording and smooth playback even with multiple client connections
- 2U rack mount kit with locking front bezel included. Rack rails included for use with four post racking systems
- NDAA Section 889 compliant
Downloads
Datasheet
Honeywell-HNMSE48D16T-Datasheet-A1
Popular Search
Additional Information
|
Audio Capability:
|
Two-Way Audio
|
|
Capacity for each disk:
|
up to 16TB
|
|
Certifications:
|
FCC Class A
|
|
Channel Capacity:
|
48 Channels
|
|
Color:
|
Black
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
MPEG4
|
|
Connection Type:
|
Wired
|
|
Dimensions:
|

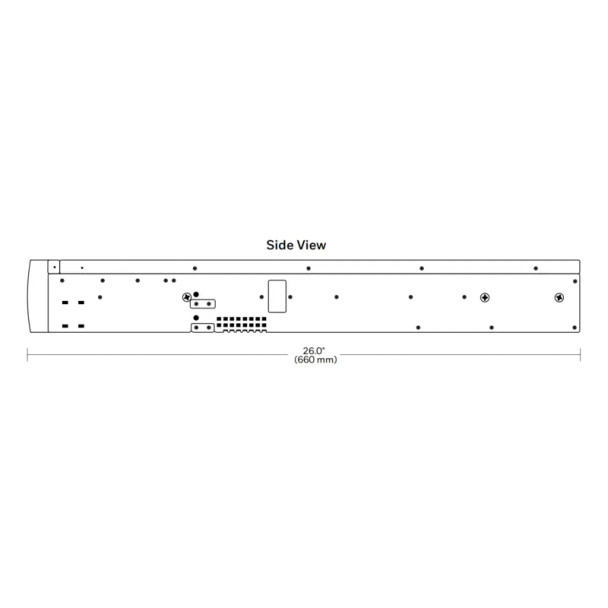

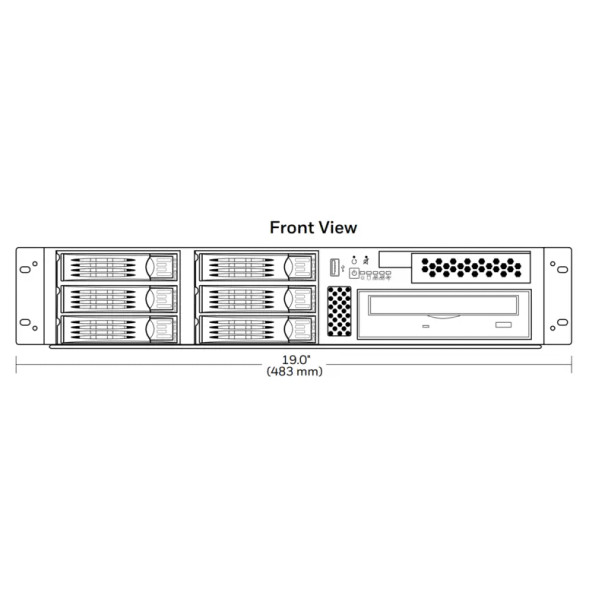

437 x 88 x 660 mm (17.2 x 3.5 x 26 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
6 SATA Ports
|
|
Material:
|
Steel
|
|
Max. Storage Capacity:
|
96 TB
|
|
Mounting:
|
Rack Mount
Desktop Mount
|
|
Network Interface:
|
2x RJ-45 Ports
|
|
Power Budget:
|
500 Watt
|
|
Power Supply:
|
100 to 240 V AC
|
|
Pre-Installed Storage:
|
16 TB
|
|
Processor (CPU):
|
Intel i7-9700K
|
|
RAM:
|
16GB
|
|
RAM Type:
|
DDR4
|
|
Rack Unit (U):
|
2U
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
|
USB Interface:
|
4x USB 3.0
5x USB 2.0
|
|
Video Output:
|
1x HDMI
1x VGA
1x DisplayPort
1x DVI
|
