Honeywell VISTAKEY V-Plex Single-Door Access Control Module with Plastic Enclosure

(No reviews yet) Write a Review
SKU:
VISTAKEY
UPC:
781410337145
  • Honeywell VISTAKEY V-Plex Single-Door Access Control Module with Plastic Enclosure
  • Honeywell VISTAKEY V-Plex Single-Door Access Control Module with Plastic Enclosure
$175.57
Frequently bought together:

Description

Honeywell VISTAKEY V-Plex Single-Door Access Control Module with Plastic Enclosure

Honeywell Home VISTAKEY Single Door Access Control system is incredibly easy to install and configure. Designed to provide low-cost access control expansion for the popular VISTA-32FB, 128BP, 128FBP, 250BP or 250FBP Integration Ready Control Panels, the state-of-the-art module maximizes security investments by integrating access control, intrusion detection and fire detection into one system. Installation costs are reduced by eliminating the need to install additional wiring, panels and software.

VISTAKEY communicates with the control panel on a standard two-wire V-Plex® polling loop. Access validation time is minimized through Honeywell Home patented Global Polling feature and special V-Plex protocol. Installation time is reduced through automatic enrollment and quick-start test functions. All programming can be accomplished locally by a keypad or remotely using Honeywell Home Compass Downloader software. Specific system events can be reported to the central station via Honeywell Home Contact ID.

Key Features:

  • Supports 250 to 500 card holders and eight access groups
  • A maximum of four to 15 doors*
  • Wires on standard V-Plex polling loop
  • Supports 26-bit standard HID® format
    - (H10301)
  • Three input zones, supervised or unsupervised, can be used for door status monitoring
  • Request-to-exit monitoring and cabinet monitoring (tamper)
  • One open collector output trigger (sink 12mA @ 12VDC)
  • 512 to 1,000* access control events recorded in VISTA event log
  • Programmable locally from keypad or remotely from Compass Downloader
  • UL listings: UL294, UL, CUL

*Panel dependent

HID is a trademark or registered trademark of HID Global Corporation.

View AllClose

Specifications

Part No.Description
VISTAKEYV-Plex Single-Door Access Control Module with Plastic Enclosure

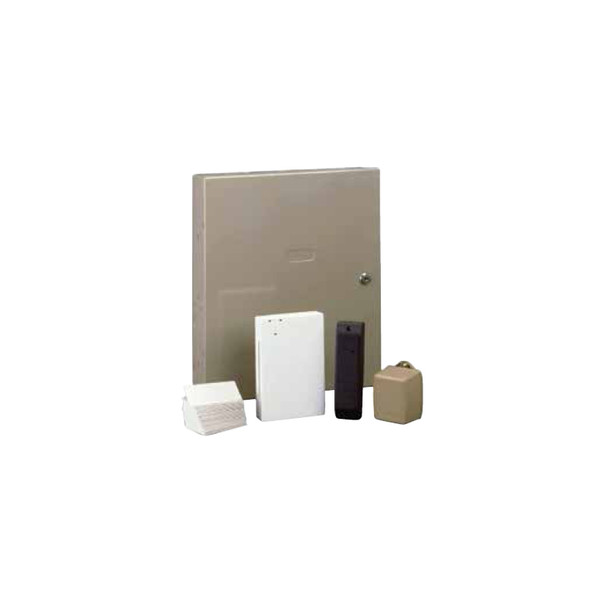

VISTAKEY-SKStarter Kit: includes 1-VISTAKEY, 1-Cabinet (UL listed), 1-Transformer, 1-OP30-FWM Proximity Card Reader, 1-PTPROX25 Proxcards (25), 1-SA12040 Power Supply Board, 1-VISTAKEY Two-Card Mounting Plate
VISTAKEY-EXPKExpansion Kit: includes 1-VISTAKEY Module and 1-OP30-FWM Proximity Reader
VISTAKEYPACIncludes 1-VISTAKEY, 1-Cabinet (UL listed), 1-Transformer, 1-SA12040 Power Supply Board (not available in Canada)
View AllClose

Additional Information

View AllClose
