Ikegami ISD-A15S 525TVL Hyper-Dynamic Compact Cube CCTV Analog Security Camera - No included lens

(No reviews yet) Write a Review
SKU:
ISD-A15S
  • Ikegami ISD-A15S 525TVL Hyper-Dynamic Compact Cube CCTV Analog Security Camera - No included lens
  • Ikegami ISD-A15S 525TVL Hyper-Dynamic Compact Cube CCTV Analog Security Camera - No included lens
  • Ikegami ISD-A15S 525TVL Hyper-Dynamic Compact Cube CCTV Analog Security Camera - No included lens
$348.00
Free Shipping
Frequently bought together:

Description

Ikegami ISD-A15S 525TVL Hyper-Dynamic Compact Cube CCTV Analog Security Camera

As the newest addition to the Ikegami Hyper Dynamic Camera Series, Model ISD-A15S features an extremely wide light dynamic range, high sensitivity and high resolution enabled by a 1/3-inch CMOS sensor and Ikegami's digital processing technology. It is a Hyper Wide Light Dynamic Range Box Camera that reproduces a clear and natural image even in locations where there is a significant difference in the intensity of illumination, such as window areas, or in lobby entrances of buildings. ISD-A15S comes with a compact cube body of just W2.05 x H2.05 x D2.16 inches, giving it the flexibility for a broad array of locations and equipment, such as ATM machines and outdoor housings.

Ikegami ISD-A15S 525TVL Hyper-Dynamic Compact Cube CCTV Analog Security Camera - No included lens

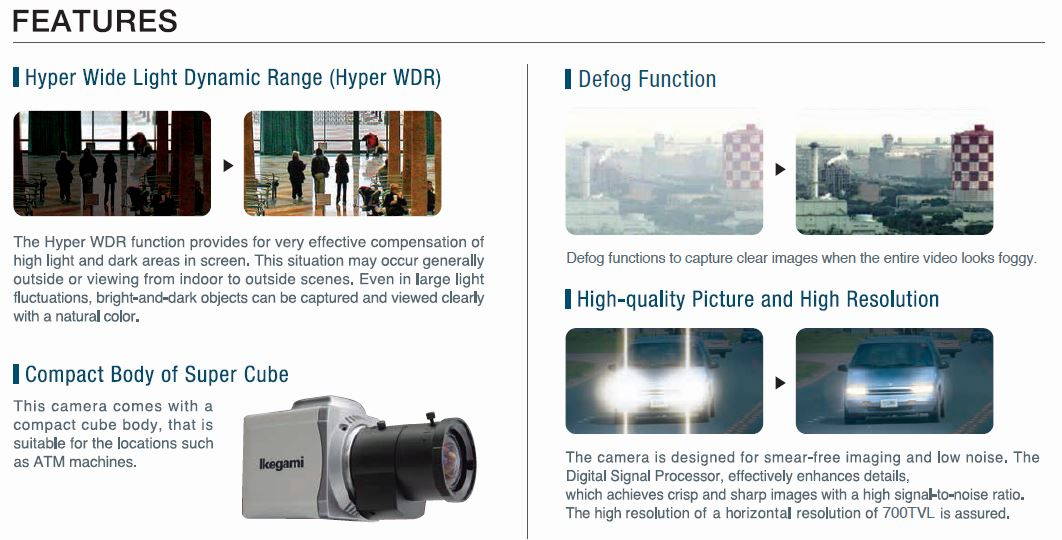

  • Hyper Wide Light Dynamic Range (Hyper WDR): The Hyper WDR function provides for very effective compensation of high light and dark areas in screen. This situation may occur generally outside or viewing from indoor to outside scenes. Even in large light fluctuations, bright-and-dark objects can be captured and viewed clearly with a natural color.
  • Compact Body of Super Cube: This camera comes with a compact cube body, that is suitable for the locations such as ATM machines.
  • Automatic White Balance: Thanks to the automatic tracking white balance control (ATW), the white balance control adjusts itself no matter how great the subject's color temperature fluctuates.
  • High-quality Picture and High Resolution: The camera is designed for smear-free imaging and low noise. The well-designed DSP, Digital Signal Processor, effectively enhances details, which achieves crisp and sharp images with a high signal-to-noise ratio. The high resolution of a horizontal resolution of 520 TVL (690 HTVL-Effective) is assured.
  • Automatic Sensitivity Control: In addition to the wide dynamic control based on multi-sampling system, automatic sensitivity control function is provided. It helps achieve optimally bright images even with fixed iris lenses.
  • Scene File Function (4 positions): Along with a normal setting (NORMAL), 4 position scene file (preset file) for each particular scene is provided. Using this function enables an easy setup suitable for a scene without any special adjustment.
  • Focus EZ Function: Thanks to the Level Indicator, a focusing point is visibly recognized. The auto iris lens aperture will be kept open, even in broad daylight. This ensures that an accurate focus can be set readily with the best depth of field.
  • Defog Function: Defog functions to capture clear images when the entire video looks foggy

Key features of Ikegami ISD-A15S

  • 525TVL
  • 1/3.2" DPS CMOS
  • No lens included
  • Hyper WDR
  • 1280 (H) x 960 (V).
  • NTSC: 525 TV lines/59.94 Hz, 2 : 1 interlaced.
  • PAL: 625 TV lines/50 Hz, 2 : 1 interlaced.
  • Internal Sync (Crystal Lock), External Sync (AC Line Lock).
  • VBS 1.0 Vp-p/75 ohms.
  • Horizontal: 700 TV lines
  • 50 dB (p-p/rms) or better.
  • Made in Korea.
  • Net Wt 200g (Approx. 0.44 Ibs)
  • 6-year Manufacturer Warranty
View AllClose

Additional Information

Color:
Gray
Resolution:
525TVL
Sensor Size:
1/3"
Sensor Type:
CMOS
Technology:
CCTV (Analog)
Camera Style:
Cube
Vandal Proof:
SD Card Support:
Weatherproof:
