Description

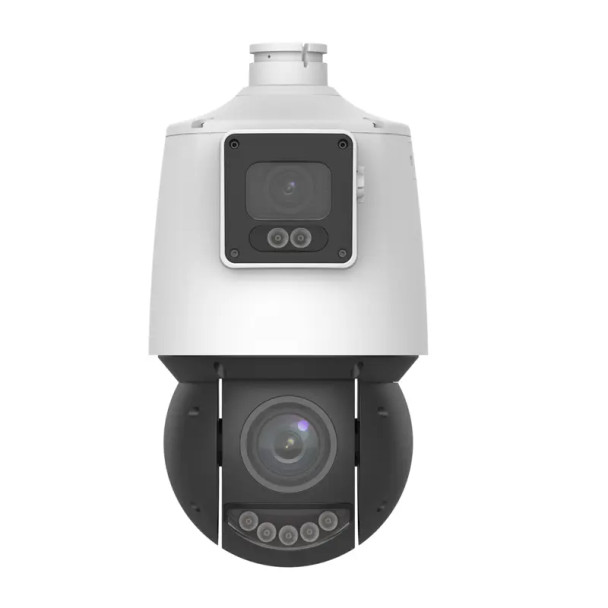

LTS VSPTZIP4C44WSL-X25IR NDAA Compliant 4MP Full Color Outdoor Dual Lens PTZ IP Security Camera with 4mm Fixed and 4.8~120mm Motorized Lenses
Key Features:
- Fixed camera and PTZ camera integration, dual channels with one IP, look at overall situation and consider details at the same time
- Ultra 265, H.265, H.264, MJPEG
- 25X optical zoom of PTZ channel allows for closer viewing of subjects
- Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
- Face capture, automatic selection of best snapshots, support face detection masked area
- People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
- PTZ channel can be linked to fixed channel’s smart intrusion prevention to track the objects triggering the rule
- Support light warning, makes warning and alarming more noticeable
- Ultra-high image quality in low illumination environment
- IR & warm light illumination to deal with different scenes and
Replacement of:
VSPTZIP3122WSL-X4IR
Downloads
User Manual
LTS-Security-VSPTZIP4C44WSL-X25IR-User-Manual-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
2 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Analytics:
|
People Counting
Face Detection
Face Capture
|
|
Aperture:
|
F1.0
F3.8
|
|
Audio Capability:
|
Two-way Audio
|
|
Audio Compression:
|
G.711u
G.711a
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Audio Support:
|
External Microphone
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
PTZ
Multi-sensor
|
|
Certifications:
|
CE
LVD
CB
UL Listed
RoHS
WEEE
REACH
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
API
SDK
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
Ultra 265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
Day (Color)
Night (B/W)
|
|
Detect (ft):
|
203.6
8120.1
|
|
Dimensions:
|
163 x 304 mm (6.4 x 12 in)
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
94.9
55.46
3.09
|
|
Identify (ft):
|
20.4
812
|
|
Iris:
|
Fixed Iris
Auto
|
|
Lens Size:
|
2.8mm
4.8~120mm
|
|
Lens Type:
|
Fixed Lens
Motorized (Automatic Zoom) Lens
|
|
Max Power Consumption:
|
24 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2688 x 1520
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (Color):
|
0.0005 lux
0.003 Lux
0 Lux with Whitelight
|
|
Mounting:
|
Pole Mount
Corner Mount
Wall Mount
Pendant Mount
|
|
Network Interface:
|
16x RJ-45 10M/100M Base-TX Ethernet
|
|
Night Vision Range (ft):
|
330
|
|
Night Vision Type:
|
Night Vision (Color - White Light)
|
|
Noise Reduction:
|
2D DNR
3D DNR
|
|
Observe (ft):
|
81.5
3248
|
|
Optical Zoom:
|
25x Optical Zoom
|
|
Power Supply:
|
12 VDC
PoE+ (IEEE802.3at)
|
|
Product Series:
|
LTS Pro-VS Series
|
|
Protection Code:
|
IP67
IK10
|
|
Recognize (ft):
|
40.7
1624
|
|
Remote Users:
|
Up to 32
|
|
Reset Button:
|
|
|
Resolution:
|
4MP
|
|
S/N Ratio:
|
>56 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1-1/100000s
|
|
Special Technologies:
|
LTS Color 24/7
|
|
Specialized Camera Feature:
|
Active Deterrence
Audible Warning
Strobe Light
|
|
Storage Humidity:
|
0% to 95% RH (non-condensing)
|
|
Storage Temperature:
|
-40 °C to 70 °C (-40 °F to 158 °F)
|
|
Surge Protection:
|
6 kV
|
|
Technology:
|
Network (IP)
|
|
Web Browser:
|
Chrome 45.0 or above
Internet Explorer 10 or above
Firefox 52.0 or above
Edge 79 or above
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
